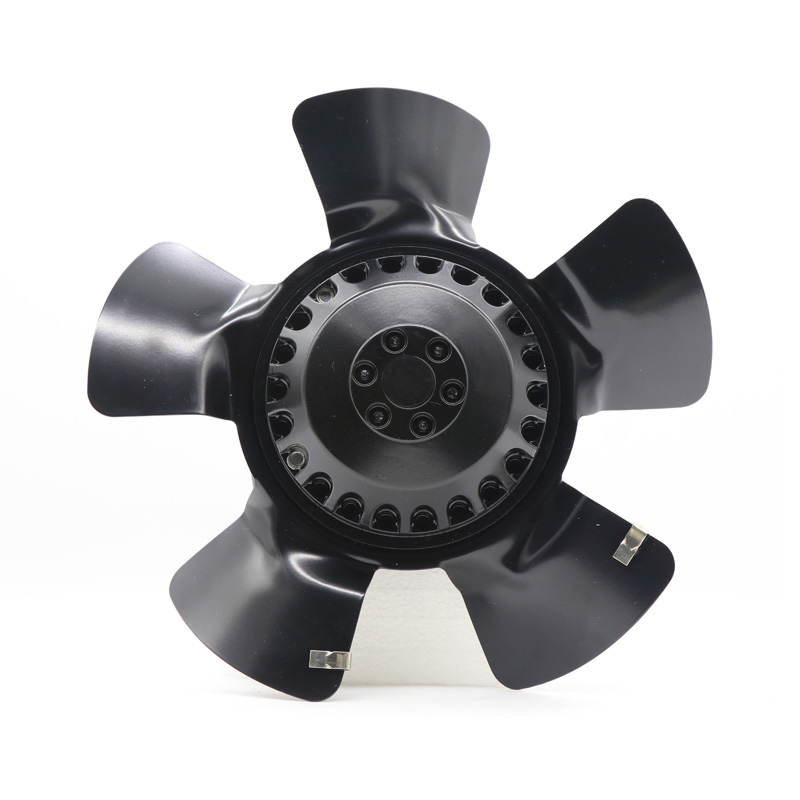

A2E200-AF05-15 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: A2E200-AF05-15 | ebm-papst 230V 63W AC Axial Fan for Motor Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: The ebm-papst A2E200-AF05-15 is a 230 V AC axial fan developed for pitch motor cooling. Its listed performance—660 m³/h airflow, 100 Pa pressure, 3030 RPM—supports stable heat removal and dependable operation when matched to the required duty point.

Datasheet:: A2E200-AF05-15 | ebm-papst 230V 63W AC Axial Fan for Motor Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	200
Max.Air Flow(m³/h)	660
Max.Pressure(Pa)	100
Input Power(W)	63
Speed(rpm)	3030

Product Features

Reliable AC Cooling

The ebm-papst A2E200-AF05-15 is an AC axial fan for industrial equipment cooling, delivering directed airflow for machinery, motor systems and ventilation assemblies.

Data includes 230 V operation, airflow up to 660 m³/h and pressure up to 100 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, sheet-steel impeller for durable motor support. Installed noise depends on the duty point and airflow path. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the A2E200-AF05-15 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

Motor Cooling

The A2E200-AF05-15 ebm-papst fan is used in industrial motor systems to remove accumulated heat around the motor body, supporting stable duty cycles and reducing thermal stress on nearby components.

Product Insights

AC to EC Replacement — A2E EC Axial

The ebm-papst A2E200-AF05-15 from the EC Axial series is a direct energy-saving replacement for legacy AC fans including A2D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

A2E EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

A2E Series Comparison — A2E200-AF05-15 vs Variants

How the A2E200-AF05-15 compares to nearby A2E series variants:

Model	A2E170-AF23-01	A2E200-AF02-01	A2E200-AF05-15	A2E200-AH38-01
Air Flow	—	740 m³/h	660 m³/h	915 m³/h
Power	47 W	50 W	63 W	64 W
Noise	— dB	— dB	— dB	— dB
Size	170 mm	200 mm	200 mm	200 mm

All A2E series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — A2E200-AF05-15 EC Axial

Data Center CRAH/CRAC Units: The A2E200-AF05-15 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Why choose the A2E200-AF05-15?

It combines 660 m³/h airflow and 100 Pa pressure and 3030 RPM in an AC axial-fan format for targeted equipment cooling.

What equipment is the A2E200-AF05-15 suitable for?

It is suited to 变桨电机散热风扇; confirm airflow, space and electrical requirements before selection.

How can the A2E200-AF05-15 support lower ownership cost?

Correct sizing and unobstructed airflow can reduce avoidable thermal stress; verify performance at the real operating point before purchase.

Does the A2E200-AF05-15 have environmental compliance information?

The product workbook lists RoHS Compliant. Request the exact-model compliance document when formal evidence is required.
