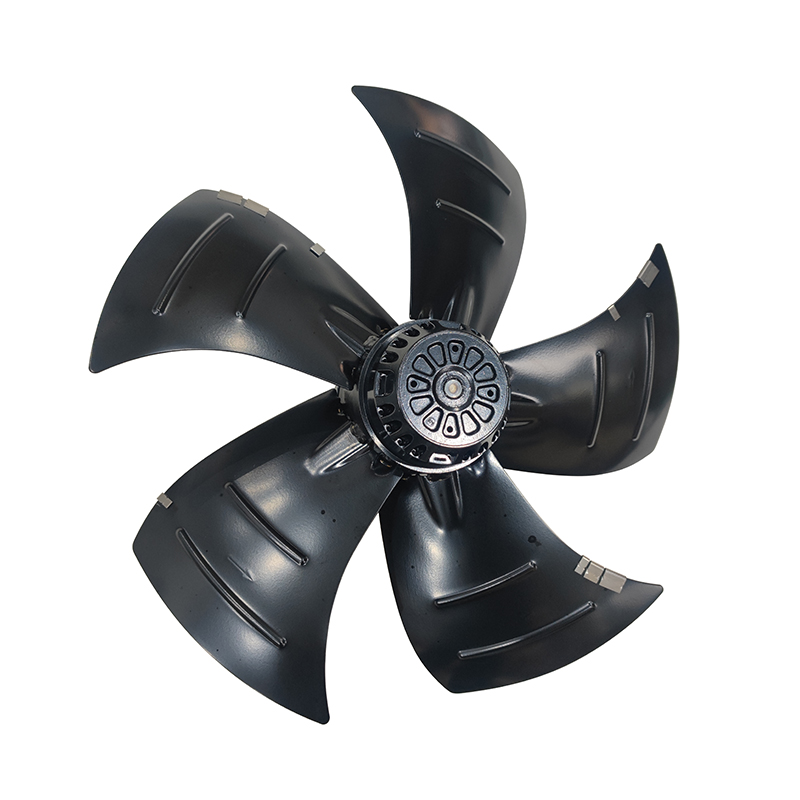

A4D300-AS34-06 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: A4D300-AS34-06 | ebm-papst 400V 90W AC Axial Fan for HVAC/R

Type:: Axial Fans

Industry:: Refrigeration Equipment

Description:: Built for hvac/r, the ebm-papst A4D300-AS34-06 is a 400 V AC axial fan. Its combination of 1905 m³/h airflow, 68 Pa pressure, 1400 RPM is intended to maintain controlled airflow and reduce thermal stress in demanding installations.

Datasheet:: A4D300-AS34-06 | ebm-papst 400V 90W AC Axial Fan for HVAC/R Datasheet (Pdf)

Product Features

Rated Voltage(V)	400
Size(mm)	300
Max.Air Flow(m³/h)	1905
Max.Pressure(Pa)	68
Input Power(W)	90
Speed(rpm)	1400
Noise(db)	58

Product Features

Reliable AC Cooling

The ebm-papst A4D300-AS34-06 is an AC axial fan for industrial equipment cooling, delivering directed airflow for machinery, motor systems and ventilation assemblies.

Data includes 400 V operation, airflow up to 1905 m³/h and pressure up to 68 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support for durable motor support. Listed noise is 58 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the A4D300-AS34-06 should be checked for wiring, mounting, duty point and ambient limits before selection. Its documented operating data supports model comparison, replacement planning and purchasing review.

Application Industry

Industrial Cooling

The A4D300-AS34-06 ebm-papst fan is used in industrial equipment cooling where continuous heat generation requires controlled airflow for equipment heat removal and stable system operation.

Product Insights

A4D Series Comparison — A4D300-AS34-06 vs Variants

How the A4D300-AS34-06 compares to nearby A4D series variants:

Model	A4D500-AJ03-01	A4D500-AM03-01	A4D500-AM03-02	A4D560-AM03-01
Air Flow	9030 m³/h	10920 m³/h	10920 m³/h	12600 m³/h
Power	710 W	1060 W	1060 W	1160 W
Noise	64 dB	68 dB	68 dB	74 dB
Size	500 mm	500 mm	500 mm	560 mm

All A4D series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — A4D300-AS34-06 AC Axial

Condenser Cooling: The A4D300-AS34-06 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What is the rated voltage of the A4D300-AS34-06?

The listed rated voltage is 400 V. Match the power supply and wiring to the datasheet.

How should the A4D300-AS34-06 be installed?

Mount it with the intended airflow direction, keep inlet and outlet clear, and follow the exact-model drawing and wiring data.

Can the A4D300-AS34-06 run continuously?

Continuous-duty suitability depends on the specified operating point, temperature and installation. Verify these limits in the exact-model datasheet.

How does the A4D300-AS34-06 compare with a general-purpose fan?

Its documented 1905 m³/h airflow and 68 Pa pressure and 1400 RPM supports model-specific selection instead of relying on a generic fan rating.
