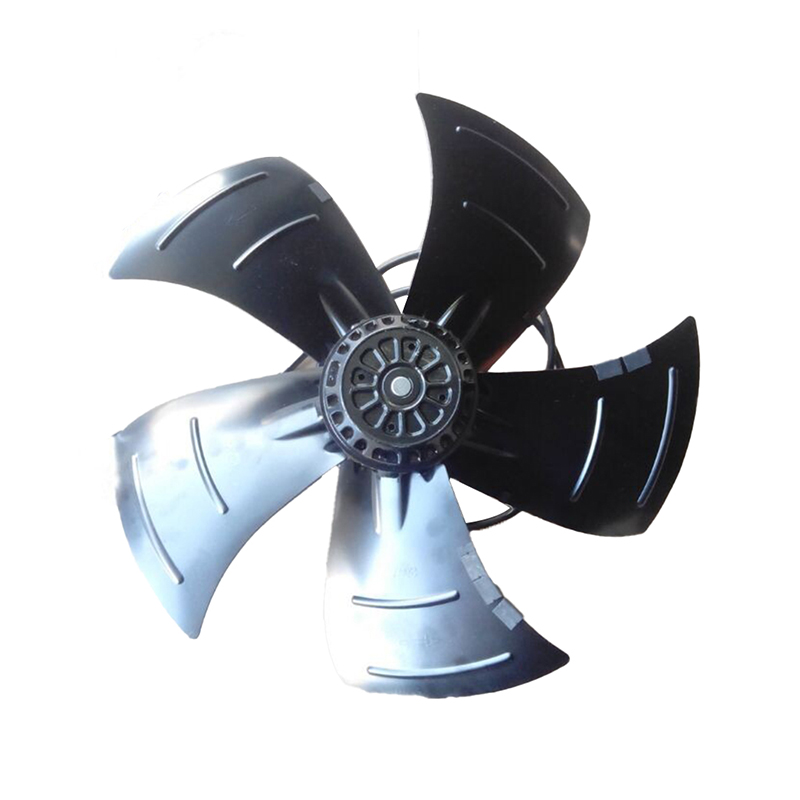

A4E420-AU01-05 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: A4E420-AU01-05 | ebm-papst 230V 370W AC Axial Fan for HVAC/R

Type:: Axial Fans

Industry:: Refrigeration Equipment

Description:: A 230 V AC axial fan for hvac/r, the ebm-papst A4E420-AU01-05 delivers model-specific cooling performance. Its 5475 m³/h airflow, 75 Pa pressure, 1430 RPM supports efficient ventilation where reliable airflow and compact integration are important.

Datasheet:: A4E420-AU01-05 | ebm-papst 230V 370W AC Axial Fan for HVAC/R Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	420
Max.Air Flow(m³/h)	5475
Max.Pressure(Pa)	75
Input Power(W)	370
Speed(rpm)	1430

Product Features

High Airflow Cooling

The ebm-papst A4E420-AU01-05 is an AC axial fan for industrial equipment cooling, delivering directed airflow for machinery, motor systems and ventilation assemblies.

Data includes 230 V operation, airflow up to 5475 m³/h and pressure up to 75 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support for durable motor support. Installed noise depends on the duty point and airflow path. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the A4E420-AU01-05 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

Industrial Cooling

The A4E420-AU01-05 ebm-papst fan is used in industrial equipment cooling where continuous heat generation requires controlled airflow for equipment heat removal and stable system operation.

Product Insights

A4E Series Comparison — A4E420-AU01-05 vs Variants

How the A4E420-AU01-05 compares to nearby A4E series variants:

Model	A4E300-AS72-01	A4E350-AP06-33	A4E500-AM03-01	A4E420-AU01-05
Air Flow	2070 m³/h	3110 m³/h	9850 m³/h	5475 m³/h
Power	80 W	130 W	880 W	370 W
Noise	56 dB	— dB	65 dB	— dB
Size	300 mm	350 mm	500 mm	420 mm

All A4E series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — A4E420-AU01-05 AC Axial

Condenser Cooling: The A4E420-AU01-05 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Is the A4E420-AU01-05 easy to maintain?

Keep the airflow path clean, inspect mounting and wiring, and replace only with a model that matches the documented ratings.

Is the A4E420-AU01-05 suitable for high-reliability cooling?

Assess the documented electrical, airflow and environmental limits against the system requirement; do not exceed the exact-model ratings.
