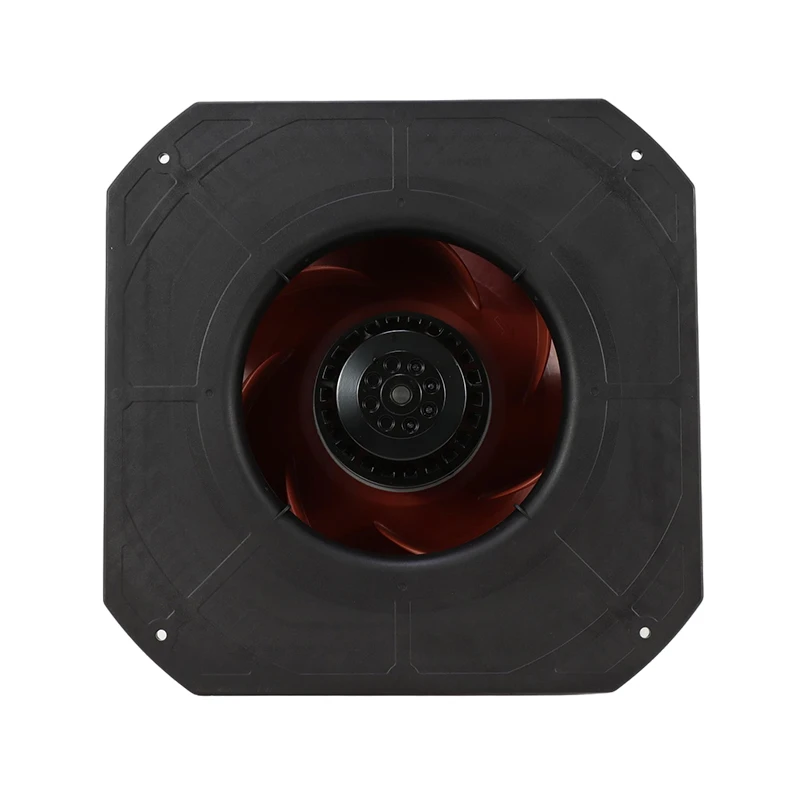

K2E220-RA38-09 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: K2E220-RA38-09 | ebm-papst 230V 107W AC Centrifugal Fan for Energy Storage

Type:: Centrifugal Fans

Industry:: New Energy

Description:: Focused on Energy Storage, the ebm-papst K2E220-RA38-09 is a 230 V AC backward-curved centrifugal fan, characterized by a listed acoustic value of 51 dB. The value helps verify equipment fit.

Datasheet:: K2E220-RA38-09 | ebm-papst 230V 107W AC Centrifugal Fan for Energy Storage Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	220
Max.Air Flow(m³/h)	920
Max.Pressure(Pa)	260
Input Power(W)	107
Speed(rpm)	2050
Noise(db)	51

Product Features

High Static Airflow

The ebm-papst K2E220-RA38-09 is an AC centrifugal blower for energy storage cooling, supporting equipment thermal management and integration.

Data includes 230 V operation, airflow up to 920 m³/h and pressure up to 260 Pa to support evidence-based matching of ventilation demand and pressure loss. The datasheet lists ball-bearing support, IP44 protection for durable motor support. Listed noise is 51 dB at the stated test point. Careful attention to wiring and inlet geometry supports efficient heat removal without unnecessary aerodynamic loss.

The documented profile helps align sourcing and engineering in equipment redesigns while keeping the duty point central. Its technical record supports consistent model identification during sourcing and lifecycle service work.

Application Industry

Energy Storage Cooling

The K2E220-RA38-09 ebm-papst fan is used in energy-storage equipment where continuous thermal loads require controlled air circulation to protect power electronics and support dependable system operation.

Frequently Asked Questions

What compliance information is supplied for the K2E220-RA38-09?

The workbook marks the product RoHS Compliant. Obtain the exact-model declaration and any project-specific approvals required by the destination market.

Which equipment can use the K2E220-RA38-09?

It is listed for Energy Storage. Confirm voltage, duty point, dimensions and mounting against the equipment requirements before selection.

What installation checks apply to the K2E220-RA38-09?

Verify mounting orientation, inlet and outlet clearance, fastener security, electrical connections and the exact dimensional drawing before startup.
