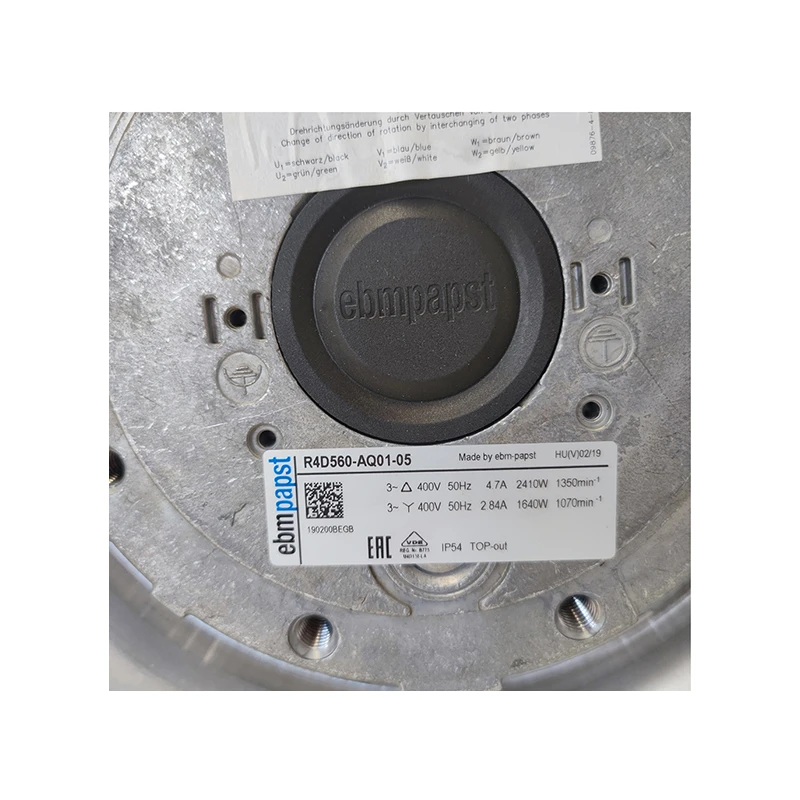

R4D560-AQ01-05 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: R4D560-AQ01-05 | ebm-papst 400V 2410W Centrifugal Fan for Automation

Type:: Centrifugal Fans

Industry:: Automation

Description:: Configured for Automation, the ebm-papst R4D560-AQ01-05 is a 400 V AC backward-curved centrifugal fan, whose supplied data highlights a listed airflow of 11,850 m³/h. The rating clarifies its operating profile.

Datasheet:: R4D560-AQ01-05 | ebm-papst 400V 2410W Centrifugal Fan for Automation Datasheet (Pdf)

Product Features

Rated Voltage(V)	400
Size(mm)	560
Max.Air Flow(m³/h)	11850
Max.Pressure(Pa)	700
Input Power(W)	2410
Speed(rpm)	1350
Noise(db)	72

Product Features

Reliable AC Cooling

The ebm-papst R4D560-AQ01-05 is an AC centrifugal fan for Automation, combining application-focused airflow with practical integration criteria. It serves equipment manufacturers and maintenance teams that require traceable model selection.

Documented selection points include 400 V supply, 2410 W input, 560 mm size, up to 11850 m3/h airflow. These values support electrical, envelope and duty-point comparison.

For procurement, verify voltage, duty point, dimensions, connector and mounting. Correct sizing and clear airflow paths support stable operation, controlled noise and long service life. Confirm speed control, IP protection and approvals in the exact-model datasheet. Service access and clean inlets help protect cooling performance over time.

Application Industry

Industrial Automation

Designed for automation equipment, machine tools and control systems, helping remove heat from motors and electronics. The ebm-papst fan supports equipment cooling and reliable production operation.

Frequently Asked Questions

Which equipment can use the R4D560-AQ01-05?

It is listed for Automation. Confirm voltage, duty point, dimensions and mounting against the equipment requirements before selection.

What compliance information is supplied for the R4D560-AQ01-05?

The workbook marks the product RoHS Compliant. Obtain the exact-model declaration and any project-specific approvals required by the destination market.

Can the R4D560-AQ01-05 help control total ownership cost?

Correct sizing and operation within documented limits can reduce avoidable thermal stress and maintenance events; project savings require duty-cycle analysis.

What should be inspected if airflow drops on the R4D560-AQ01-05?

Check for blocked airflow paths, incorrect supply, loose wiring, abnormal rotation or system resistance before consulting the exact service documentation.
