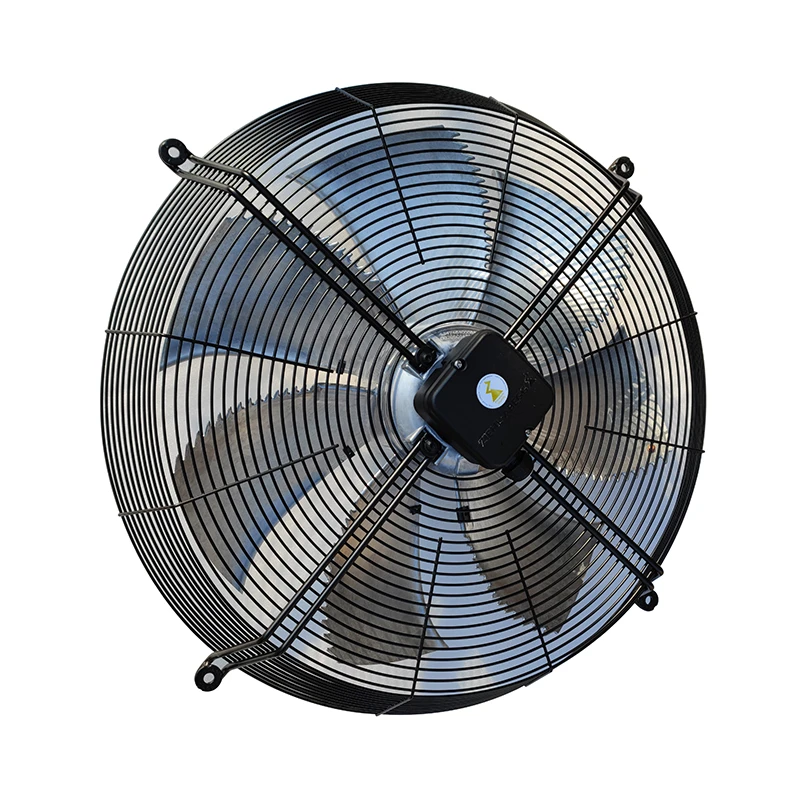

FN056-VDW.4M.A7P2 ZIEHL-ABEGG Axial Fan

Brand :: ZIEHL-ABEGG

Model:: FN056-VDW.4M.A7P2 | ZIEHL-ABEGG 3~400V 1350W AC Axial Fan for Cooling & Ventilation Systems

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: Adapted for HVAC Systems, ZIEHL-ABEGG FN056-VDW.4M.A7P2 is a 400V AC axial fan, presenting a listed pressure capability of 200 Pa. It supports an evidence-based shortlist. Its data aids integration.

Datasheet:: FN056-VDW.4M.A7P2 | ZIEHL-ABEGG 3~400V 1350W AC Axial Fan for Cooling & Ventilation Systems Datasheet (Pdf)

Product Features

Rated Voltage(V)	3~400
Size(mm)	560
Max.Air Flow(m³/h)	11200
Max.Pressure(Pa)	200
Input Power(W)	1350
Speed(rpm)	1320
Noise(db)	82

Product Features

High Static Airflow

The ZIEHL-ABEGG FN056-VDW.4M.A7P2 is an AC axial fan for refrigeration cooling, telecom equipment, supporting equipment thermal management and integration.

Data includes 3~400 V operation, airflow up to 11200 m³/h and pressure up to 200 Pa for selecting a practical balance between air delivery and flow-path restriction. The datasheet lists ball-bearing support, bionic blade geometry for durable motor support. Listed noise is 82 dB at the stated test point. Proper integration of the supply, mounting and air path protects airflow performance and promotes durable operation.

The documented profile provides an audit trail in equipment redesigns while preserving model traceability. Clear model data also supports structured replacement decisions without relying on generic fan assumptions.

Application Industry

Refrigeration Cooling

The FN056-VDW.4M.A7P2 ZIEHL-ABEGG fan is suitable for refrigeration and cooling equipment where forced airflow supports heat rejection, component protection and stable operation under recurring thermal loads.

Telecom Equipment

The FN056-VDW.4M.A7P2 ZIEHL-ABEGG fan is used in communication equipment and cabinets where continuous heat generation requires reliable ventilation to protect electronic hardware and system availability.

HVAC Systems

The FN056-VDW.4M.A7P2 ZIEHL-ABEGG fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Chiller Systems

The FN056-VDW.4M.A7P2 ZIEHL-ABEGG fan is applied in chiller equipment where steady air movement supports heat rejection, temperature control and dependable operation of the refrigeration circuit.

Frequently Asked Questions

How can noise be managed when using the FN056-VDW.4M.A7P2?

The table lists 82 dB. Use unobstructed airflow, secure mounting and suitable isolation where required.

Is the FN056-VDW.4M.A7P2 suitable for high-reliability cooling?

It can be evaluated for demanding service using the documented ratings, installation limits and preventive-maintenance plan for the application.

What performance data is available for the FN056-VDW.4M.A7P2?

The supplied table lists 11,200 m³/h, 200 Pa, 1,320 rpm; use the exact datasheet for the complete operating curve.
