RH22V-4IP.ZC.BR ZIEHL-ABEGG Centrifugal Fan

Brand :: ZIEHL-ABEGG

Model:: RH22V-4IP.ZC.BR | ZIEHL-ABEGG 1~200-240V 170W EC Impeller for Production & Cleanroom Equipment

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Adapted for Ventilation, ZIEHL-ABEGG RH22V-4IP.ZC.BR is a 200-240V EC centrifugal fan, defined by a documented speed of 2,860 rpm. This helps guide installation planning. Its parameters help confirm system compatibility.

Datasheet:: RH22V-4IP.ZC.BR | ZIEHL-ABEGG 1~200-240V 170W EC Impeller for Production & Cleanroom Equipment Datasheet (Pdf)

Product Features

Rated Voltage(V)	1~ 200-240
Size(mm)	220
Max.Air Flow(m³/h)	1420
Max.Pressure(Pa)	780
Input Power(W)	170
Speed(rpm)	2860
Noise(db)	78

Product Features

High Static Airflow

The ZIEHL-ABEGG RH22V-4IP.ZC.BR is an EC centrifugal blower for hvac systems, supporting equipment thermal management and integration.

Data includes 1~ 200-240 V operation, airflow up to 1420 m³/h and pressure up to 780 Pa for selecting a practical balance between air delivery and flow-path restriction. The datasheet lists ball-bearing support for durable motor support. Listed noise is 78 dB at the stated test point. Maintaining the intended air channel and electrical limits helps the fan deliver repeatable cooling over extended duty.

Its operating documentation guides procurement screening during specification review without relying on generic assumptions. This selection basis helps reduce uncertainty when comparing alternatives for an established installation.

Application Industry

HVAC Systems

The RH22V-4IP.ZC.BR ZIEHL-ABEGG fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Frequently Asked Questions

What is the representative feature of the RH22V-4IP.ZC.BR?

The supplied comparison identifies a documented speed of 2,860 rpm; review it together with the other listed ratings rather than as a standalone selection criterion.

Why choose the RH22V-4IP.ZC.BR for Ventilation?

Its documented 200-240V EC centrifugal fan configuration provides a traceable match for projects whose electrical and airflow requirements align with the model data.

Which equipment can use the RH22V-4IP.ZC.BR?

It is listed for Ventilation. Confirm voltage, duty point, dimensions and mounting against the equipment requirements before selection.

Can the RH22V-4IP.ZC.BR help control total ownership cost?

Correct sizing and operation within documented limits can reduce avoidable thermal stress and maintenance events; project savings require duty-cycle analysis.

Related Products

RH35V-4EK.4F.1R 114116 | ZIEHL-ABEGG 1~230VAC 292W AC Centrifugal Fan for industrial automation

RH35V-4EK.4F.1R 114116 is a 1~230 VAC centrifugal fan for packaging machinery. Its main supplied feature is ECblue motor and integrated-control technology referenced for this model. It also lists a 350 mm size specified in the upload data. Review ventilation duty for retrofit assessment.

RH40V-4DK.4I.VR 115595 | ZIEHL-ABEGG 3~400/460VAC 465W AC Centrifugal Fan for industrial automation

RH40V-4DK.4I.VR 115595 is a 3~400/460 VAC centrifugal fan for packaging machinery. Its main supplied feature is a compact construction intended to simplify equipment integration. It also lists a 400 mm size specified in the upload data. Review control method for application engineering.

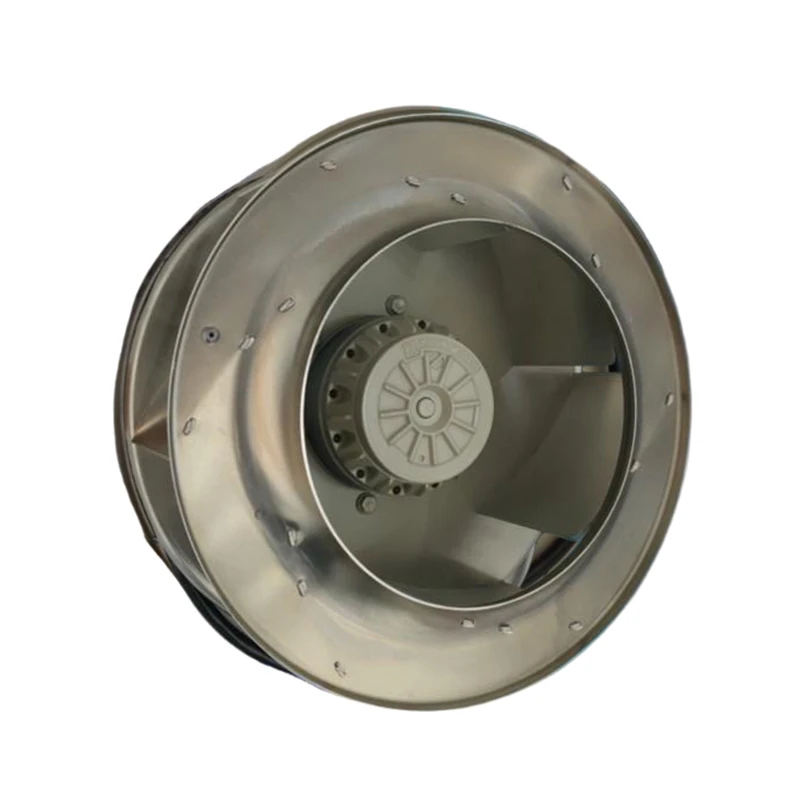

RH25V-2EP.WD.1R | ZIEHL-ABEGG 230V 210W AC Impeller for Production & Cleanroom Equipment
