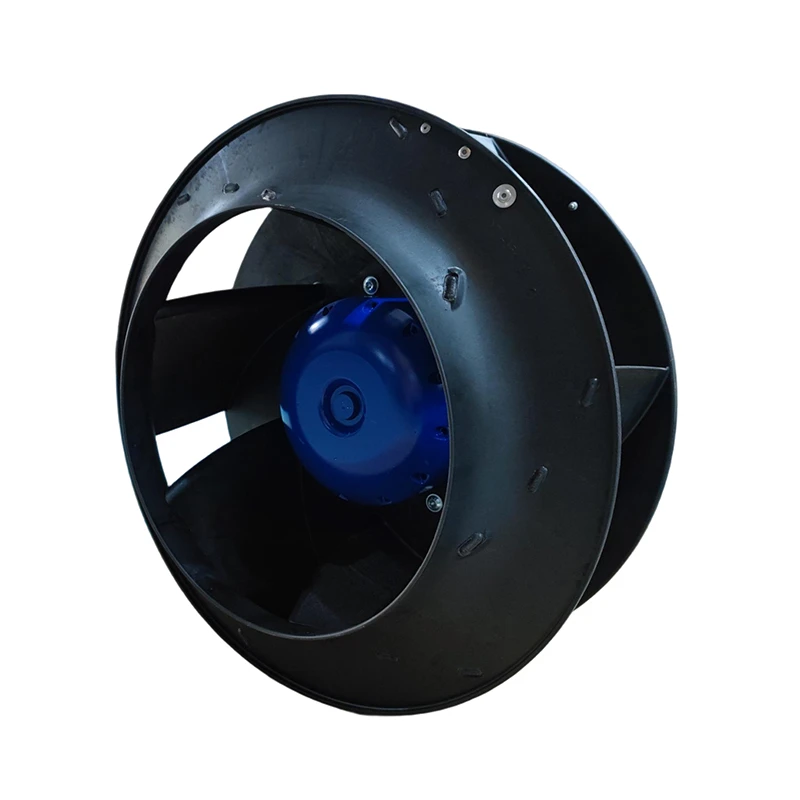

RH56V-ZIK.GG.1R ZIEHL-ABEGG Centrifugal Fan

Brand :: ZIEHL-ABEGG

Model:: RH56V-ZIK.GG.1R | ZIEHL-ABEGG 3~380-480V 3100W EC Impeller for Production & Cleanroom Equipment

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Adapted for Ventilation, the ZIEHL-ABEGG RH56V-ZIK.GG.1R is a 380-480V EC centrifugal fan, supported by a listed pressure capability of 1,050 Pa. It provides a traceable selection parameter.

Product Features

Rated Voltage(V)	3~380-480
Size(mm)	560
Max.Air Flow(m³/h)	14400
Max.Pressure(Pa)	1050
Input Power(W)	3100
Speed(rpm)	1560
Noise(db)	84

Product Features

High Static Airflow

The ZIEHL-ABEGG RH56V-ZIK.GG.1R is an EC centrifugal blower for hvac systems, supporting equipment thermal management and integration.

Data includes 3~380-480 V operation, airflow up to 14400 m³/h and pressure up to 1050 Pa for reviewing airflow capability against the resistance of the finished assembly. Its integrated motor and impeller support stable ventilation. Listed noise is 84 dB at the stated test point. Careful attention to wiring and inlet geometry supports efficient heat removal without unnecessary aerodynamic loss.

The RH56V-ZIK.GG.1R supports evidence-based OEM selection when its wiring, installation geometry, duty point and ambient range are confirmed. The stated operating record supports model verification for installed equipment with attention to real airflow resistance.

Application Industry

HVAC Systems

The RH56V-ZIK.GG.1R ZIEHL-ABEGG fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Frequently Asked Questions

Is inventory stable for the RH56V-ZIK.GG.1R?

The workbook marks it In Stock, but quantity and lead time should be reconfirmed at quotation because availability can change.

How can noise be managed when using the RH56V-ZIK.GG.1R?

The table lists 84 dB. Use unobstructed airflow, secure mounting and suitable isolation where required.

Is the RH56V-ZIK.GG.1R easy to maintain?

Provide service access, keep the airflow path clean, inspect wiring and mounting, and investigate abnormal noise or vibration before continued use.
