Aixal Fans

15 results

By type

By industry

Rated Voltage(V)

Size(mm)

Max.Air Flow(m³/h)

Max.Pressure(Pa)

Input Power(W)

Speed(rpm)

Noise(db)

Applied Filters

Showing

1-15

of 15

Featured Most Popular

Download Table

Mfr Part #	Rated Voltage(V)	Size(mm)	Max.Air Flow(m³/h)	Max.Pressure(Pa)	Input Power(W)	Speed(rpm)	Noise(db)

GTW091PBU29E-V007 \| Delta 3~380-480VAC 2153/4000W 910mm EC Axial Fan for Data Center AHU Delta GTW091PBU29E-V007 is a 3~380-480 VAC EC axial fan for data-center air-handling units. Its supplied data lists 32,843 m³/h maximum airflow, 504 Pa pressure, 1,260 rpm, and 2,153/4,000 W power. It supports 0-10 V, PWM, and RS485 control, with IP55 protection and maintenance-free ball bearings.	3~ 380-480	910	32843	504	2153/4000	1260	86.3
GTW091PUR22EA \| Delta Electronics 3~380-480VAC 2200W EC Axial Fan for Server Cooling GTW091PUR22EA offers EC axial fan ventilation for server cooling on three-phase 380-480VAC. A listed 910 mm size and 950 rpm speed distinguish this entry, with 30984 m3/h maximum airflow in the supplied table.	3~ 380-480	910	30984	155	2200	950	83
GTW080PUU23E \| Delta Electronics 3~380-480VAC 3100W EC Axial Fan for Server and Precision Cooling GTW080PUU23E is an EC axial fan listed for three-phase 380-480VAC server cooling. Its test table records 19626 m3/h at 265 Pa and 1200 rpm without a guard, providing a loaded operating point for system comparison.	3~ 380-480	800	30326	265	3100	1200	78
GTW050EUD19E \| Delta Electronics 1~200-277VAC 800W EC Axial Fan for Server and Precision Cooling GTW050EUD19E is listed as an EC axial fan for server and precision cooling on single-phase 200-277VAC. The supplied 497 mm size and 1500 rpm speed accompany a maximum airflow specification of 9046 m3/h.	1~ 200-277	497	9046	-	800	1500	-
GTW091PUU23E \| Delta Electronics 3~380-480VAC 3100W EC Axial Fan for Server and Precision Cooling The GTW091PUU23E is an EC axial fan for server and precision cooling, listed for three-phase 380-480VAC. Its PDF records 36185.9 m3/h at free air and 1100 rpm without a fan guard, identifying the test condition.	3~380-480	910	36186	219	3100	1100	86
GTW091PUR22E \| Delta Electronics 3~380-480VAC 2200W EC Axial Fan for Server and Precision Cooling GTW091PUR22E pairs nominal 400VAC EC axial operation with a 950 rpm speed for server and precision cooling. Its PDF lists 30984 m3/h maximum airflow and 0-10V/PWM control for adjusting the fan speed.	3~380-480	905	30984	-	2200	950	-
GTW080PUR23E \| Delta Electronics 3~380-480VAC 2200W EC Axial Fan for Server and Precision Cooling An 800 mm EC axial fan format identifies GTW080PUR23E for server and precision cooling. Listed for three-phase 380-480VAC, the model has a 2200 W input specification; exact control interfaces need confirmation.	3`380-480	800	-	-	2200	-	-
GTW071PUT23E \| Delta Electronics 3~230/400VAC 2700W EC Axial Fan for Server and Precision Cooling GTW071PUT23E is a nominal 400VAC EC axial fan for server and precision cooling. Its PDF specifies an IP54 rating and RS485 Modbus control, with 23134 m3/h maximum airflow at the documented 1250 rpm setup.	3~230/400	710	23134	259	2700	1250	82
GTWA63HBK21E \| Delta Electronics 3~230/400VAC 546W EC Axial Fan for Server and Precision Cooling GTWA63HBK21E uses an EC axial fan design for server and precision cooling on three-phase 230/400VAC. The supplied 850 x 850 x 222 mm assembly is listed at 1250 rpm, with 13780 m3/h maximum airflow.	3~230/400	850 x 850 x 222	13780	196	546	1250	75

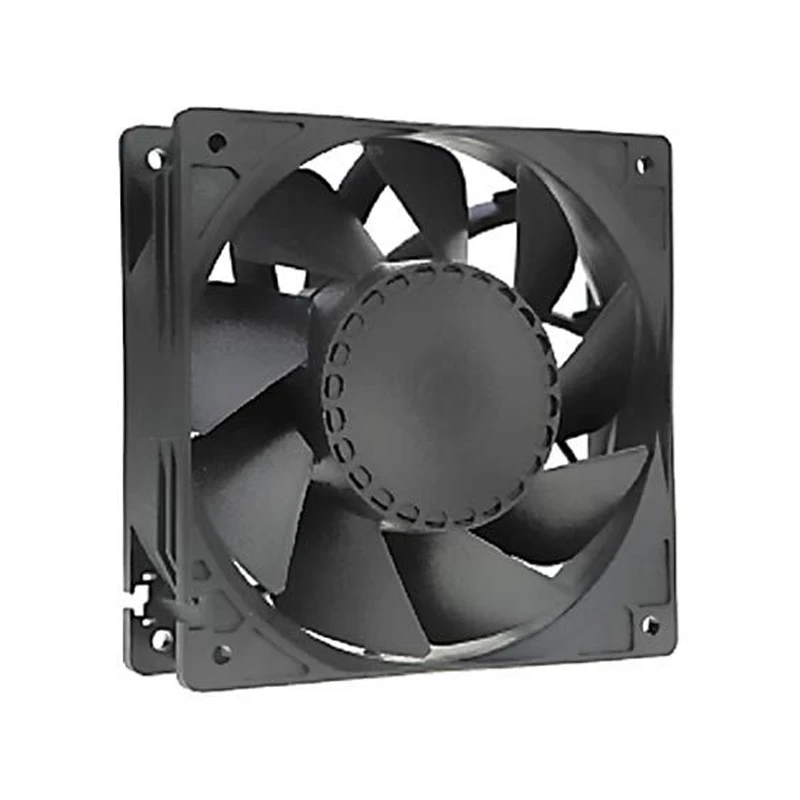

GTW012FU804-U00 \| Delta Electronics 220VAC 11W EC Axial Fan for Server and Precision Cooling GTW012FU804-U00 brings EC axial operation to a 120 x 120 x 38 mm server-cooling format. With 220VAC listed in the supplied table, the fan is specified at 4200 rpm and 246.5 m3/h maximum airflow.	220	12012038	246.5	112.1	11	4200	54.9

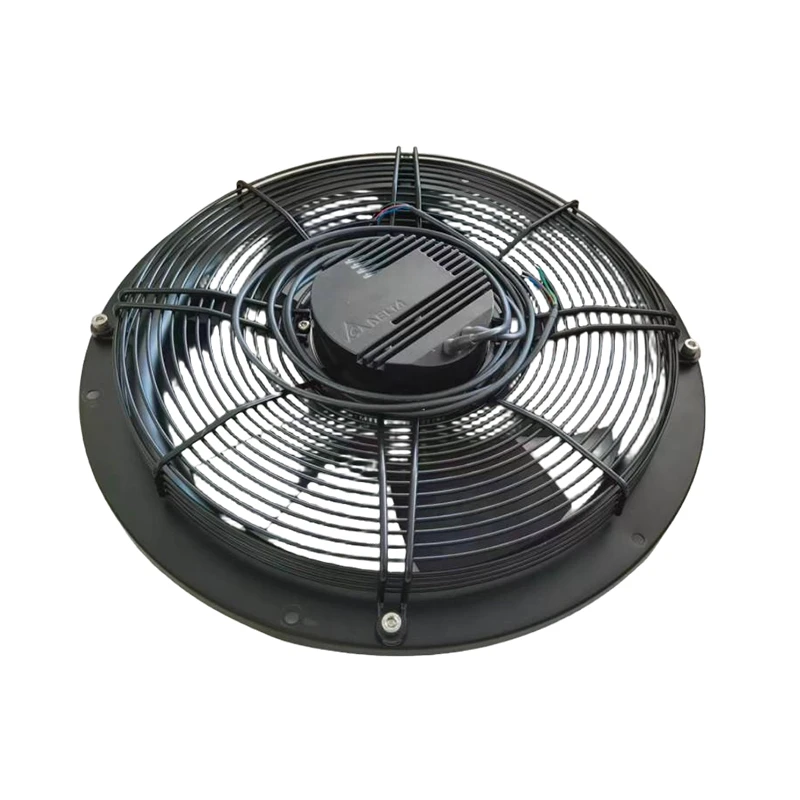

GTW040FUC15E-M001 \| Delta Electronics 230VAC 330W EC Axial Fan for Server and Precision Cooling GTW040FUC15E-M001 combines EC axial fan cooling with a nominal 230VAC supply for server and precision equipment. Its listed 5350 m3/h maximum airflow and 1650 rpm speed define this model's ventilation profile.	230	φ528 x 154	5350	198	330	1650	72

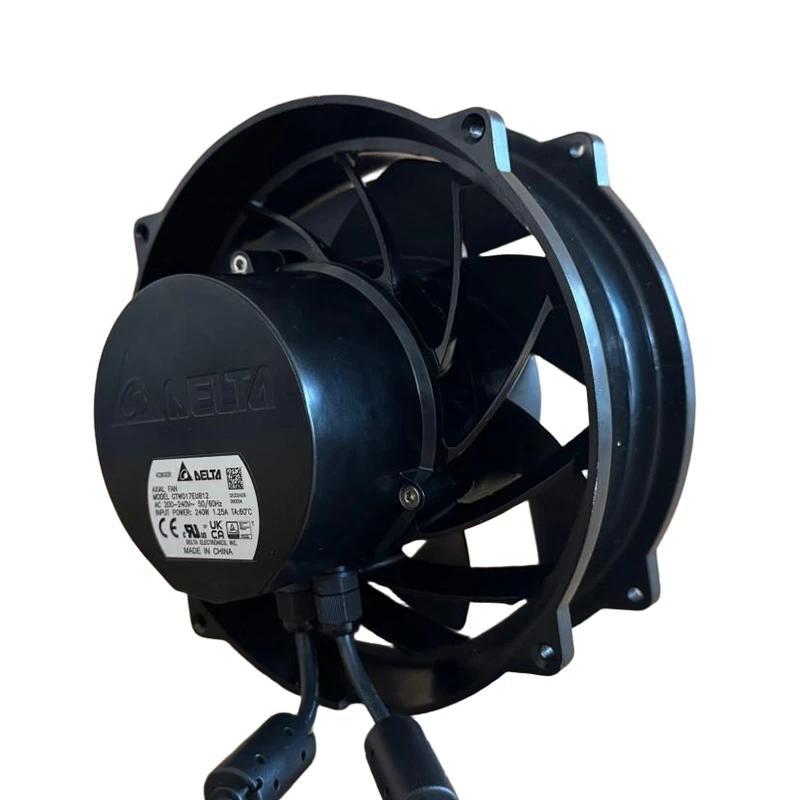

GTW017EUB12 \| Delta Electronics 1~200-240VAC 240W EC Axial Fan for Server and Precision Cooling GTW017EUB12 is an EC axial fan for server and precision cooling with a specified 200-240VAC input. Its PDF documents 0-10V/PWM speed control and a fan-speed signal, alongside a 5800 rpm rating.	1~200-240	200 x 122	1177	844	240	5800	70.5
GTW080PUR22E \| Delta Electronics 3~380-480VAC 2200W EC Axial Fan for Server and Precision Cooling GTW080PUR22E offers EC axial fan airflow for server and precision cooling at nominal 400VAC. The PDF specifies 0-10V/PWM and RS485 control, with 25077 m3/h maximum airflow and a rated 1020 rpm speed.	3~380-480	788	25077	-	2200	1020	-

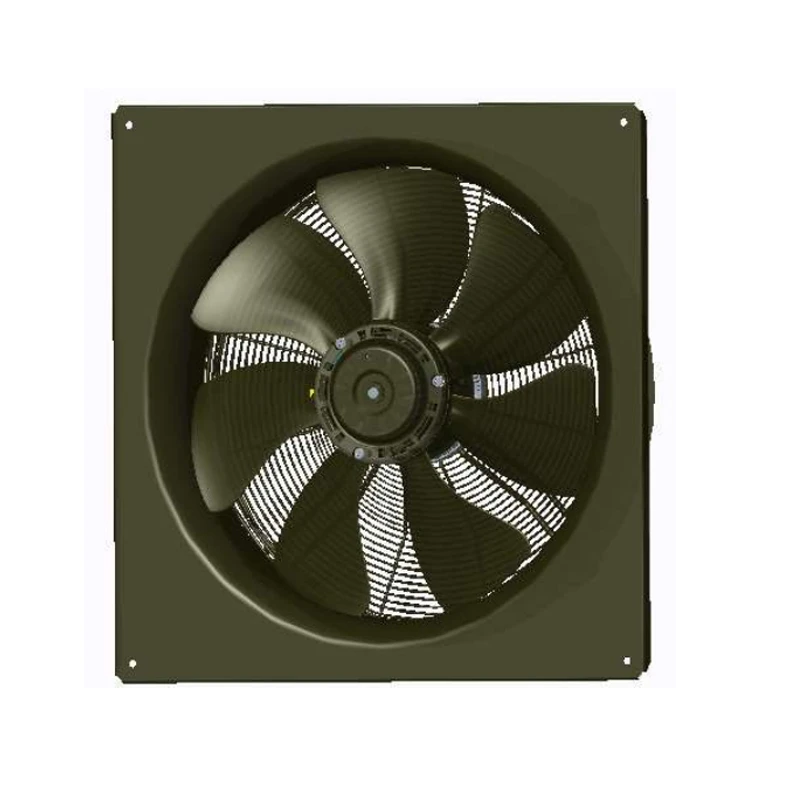

GTW063HBK21E-M001 \| Delta Electronics 3~230/400VAC 670W EC Axial Fan for Server Cooling GTW063HBK21E-M001 is listed as an EC axial fan for server cooling on three-phase 230/400VAC. Its supplied 805 x 805 x 225 mm dimensions and 1200 rpm speed define the mechanical and operating selection points.	3~ 230/400	805805225	13218	212	670	1200	76

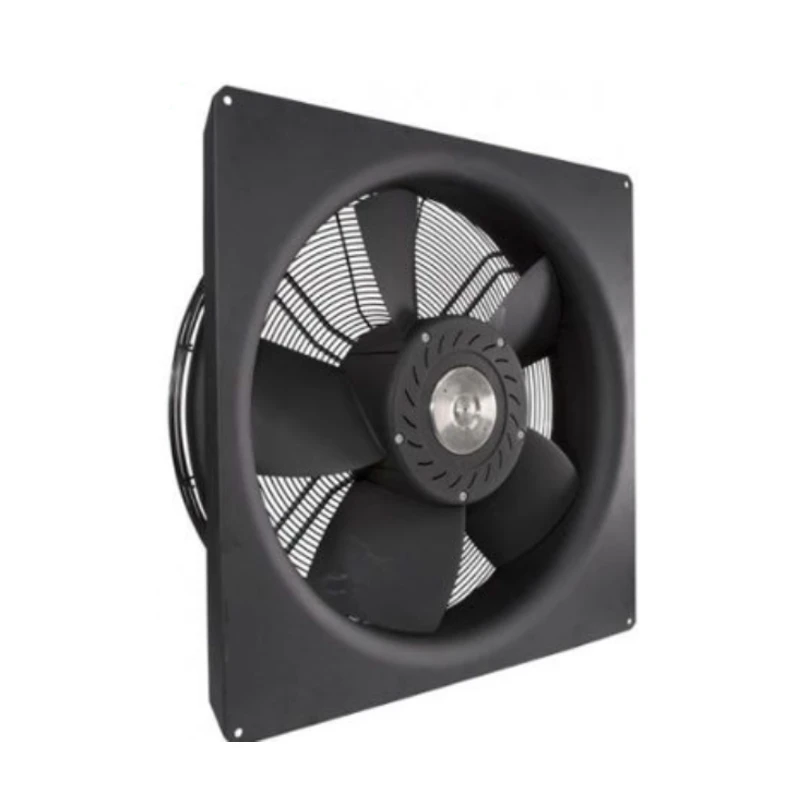

GTW091PUU29E-V001 \| Delta Electronics 400VAC 4000W EC Axial Fan for Server and Precision Cooling GTW091PUU29E-V001 uses nominal 400VAC EC axial fan drive for server and precision cooling. The supplied PDF documents IP55 protection, 0-10V/PWM control and a maximum airflow of 34410 m3/h at the rated setup.	400	910	11906	364	4000	1260	86.3

Showing

1-15

of 15

About Aixal Fans

How to Select the Right Aixal Fans

Choosing the right aixal Fans starts with the operating point rather than the model name. Define the airflow you actually need in CFM or m³/h and the static pressure the fan must overcome, then look for units whose performance curves pass through that point with a safety margin instead of sitting at the edge of the curve.

Pay attention to the electrical details early. DC fans typically run on 12/24/48 V and integrate easily with control boards, while AC fans suit 115/230 V fixed-speed installations. If the airflow must change with load, choose EC technology with PWM or analog control and, where monitoring matters, a tachometer output so the controller can detect fan failure.

Environment and compliance come next. Match the IP rating to dust and moisture exposure, prefer ball bearings wherever the fan runs hot, vertically or around the clock, and confirm certifications — UL, CE, RoHS — against your destination market. Setting the acoustic limit in dBA early prevents late-stage redesign when the first unit proves too loud.

Finally, compare candidates on total delivery risk, not only on price: confirm stock for the quantity you need, check the lead time for the next batch, and ask for datasheets and dimension drawings before committing. Our team cross-checks curves, dimensions and electrical data for you before quotation There are currently 15 items in this category ready to compare.

Typical Applications and Use Cases for Aixal Fans

Aixal Fans appear in almost every sector where heat or stale air must be moved reliably. Typical environments include server rooms and data centers, refrigeration condensers and cold-store evaporators, HVAC air handling units, telecom cabinets, medical and laboratory equipment, welding and CNC machine enclosures, and renewable-energy power cabinets. In each of these settings the fan is a critical component: its failure stops production, damages stored goods or forces expensive emergency downtime.

One recurring scenario comes from control cabinet retrofits: the original fan is obsolete, the mounting hole pattern cannot change, and downtime is measured in hours. We match the old unit against current series by frame size, airflow and noise, propose the closest drop-in alternative, and ship with a datasheet that lets the electrician connect it without redesign.

For cold storage operators the pain is simple: a failed evaporator or condenser fan must be replaced now, not after a six-week import cycle. Matching blade diameter, speed and protection class against stocked equivalents lets us restore cooling capacity within days, which is why replacement supply has become a core part of this category for us.

Whether the project involves new equipment or the replacement of installed Delta units, the workflow is the same: send us the operating point and constraints, and we return a validated selection with datasheets, curves and a clear lead time.

Frequently Asked Questions About Buying Aixal Fans

Do you have aixal Fans in stock and how fast can you deliver?

Common series and mainstream voltage versions are normally in stock and can ship within a few working days; specialized or customized variants are produced to order and typically require additional production time. Send us the exact model or the required parameters and we will confirm stock, unit price and the earliest shipment date in one reply Currently 15 products in this category are listed online.

Can you replace my existing aixal Fans from another supplier or a discontinued model?

Yes. Replacement supply is one of our core services: we cross-reference the mounting dimensions, voltage, speed and performance curve of your installed unit and propose the closest current-series equivalent. Where the frame or connector differs slightly, we state the difference clearly before you order, so the replacement installs without surprises.

Can I order a single piece or request a sample before a bulk purchase?

Single-piece orders and samples are welcome — many customers validate one unit in their system before committing to volume. There is no minimum order quantity for standard stock models, and the sample price is deducted from the bulk order in most repeat purchases. Tell us the quantity you plan to use and we will quote both scenarios.
