Mfr Part #	Rated Voltage(V)	Size(mm)	Max.Air Flow(m³/h)	Max.Pressure(Pa)	Input Power(W)	Speed(rpm)	Noise(db)

CF4207LBL-10000-A99 \| SUNON 100～240V ø250x77mm 2293.7m3/h 1350rpm EC Axial Fan for New Energy For inverters, energy-storage systems, and charging equipment, CF4207LBL-10000-A99 combines 100～240 VAC operation with a ø250 × 77 mm EC axial fan design. Up to 2293.7 m³/h is its most prominent listed performance figure. For noise-control planning, start with the supplied speed benchmark. Confirm environmental protection for the ordered version.	100～240	ø250x77mm	2293.7	67.3	-	1350	41.2

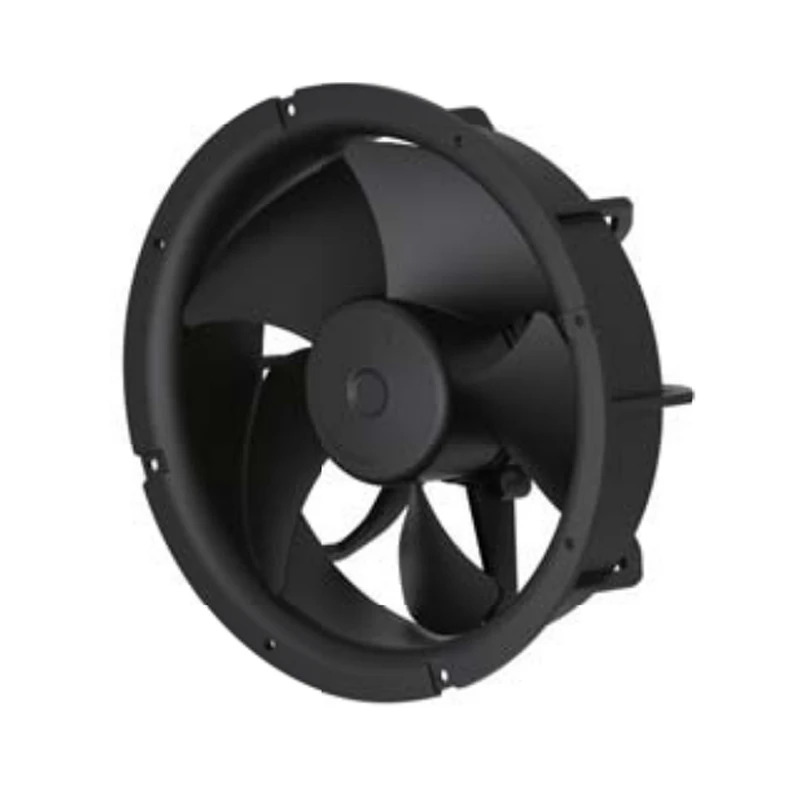

CF4207HBL-10000-A99 \| SUNON 100～240V ø250x77mm 3567.9m3/h 2100rpm EC Axial Fan for New Energy Built around inverters, energy-storage systems, and charging equipment, SUNON CF4207HBL-10000-A99 is a 100～240 VAC EC axial fan in a ø250 × 77 mm frame. Up to 3567.9 m³/h is its most prominent listed performance figure. Use the documented airflow profile when planning noise-control planning. Confirm environmental protection for the ordered version.	100～240	ø250x77mm	3567.9	142	-	2100	53.4
CF4113MBT-10000-A99 \| SUNON 100～240V 3.6W 120x120x38mm EC Axial Fan for Refrigeration Equipment Within commercial refrigeration and refrigerator cooling, SUNON CF4113MBT-10000-A99 serves as a 120 × 120 × 38 mm EC axial fan operating at 100～240 VAC. Up to 153.1 m³/h is its most prominent listed performance figure. Review its application data during reliability evaluation. Treat bearing and life data as suffix-specific.	100～240	120x120x38mm	153.1	77.2	3.6	3100	40.2

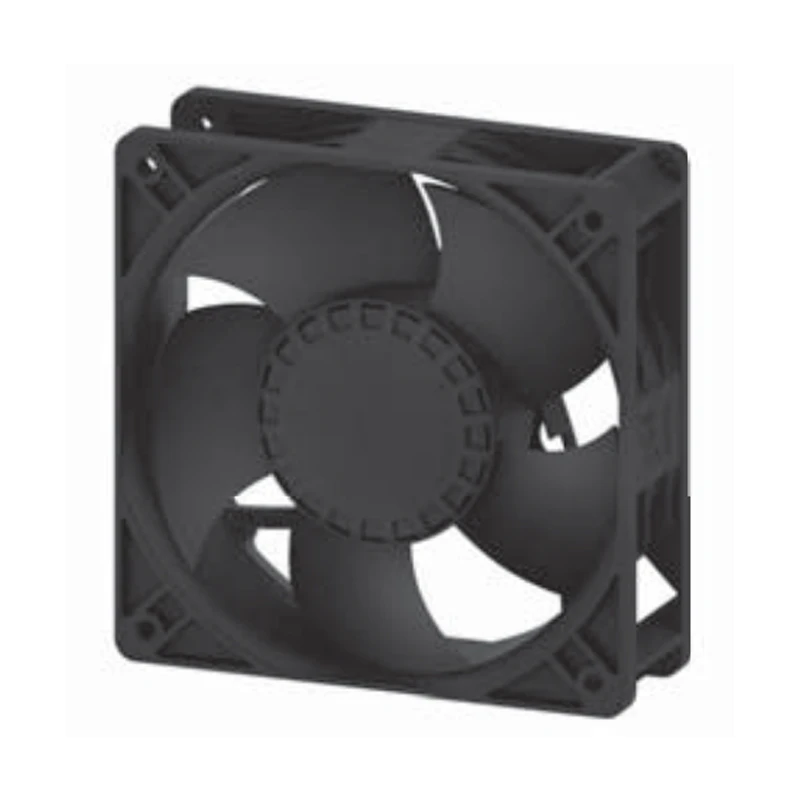

CF4113MBL-10000-A99 \| SUNON 100～240V 3.6W 120x120x38mm 153.1m3/h EC Axial Fan for New Energy The 120 × 120 × 38 mm CF4113MBL-10000-A99 brings 100～240 VAC EC axial fan cooling to inverters, energy-storage systems, and charging equipment. Up to 153.1 m³/h is its most prominent listed performance figure. Treat the technical profile as a primary input to reliability evaluation. Treat bearing and life data as suffix-specific.	100～240	120x120x38mm	153.1	77.2	3.6	3100	40.2
CF4113MBL-0000-AE9 \| SUNON 100～240V 3.4W 120x120x38mm 153.1m3/h EC Axial Fan for New Energy The CF4113MBL-0000-AE9 is SUNON's 100～240 VAC, 120 × 120 × 38 mm EC axial fan option for inverters, energy-storage systems, and charging equipment. Up to 153.1 m³/h is its most prominent listed performance figure. Base reliability evaluation on the stated model record. Treat bearing and life data as suffix-specific.	100～240	120x120x38mm	153.1	77.2	3.4	3000	40.2
CF4113LBT-10000-A99 \| SUNON 100～240V 1.8W 120x120x38mm EC Axial Fan for Refrigeration Equipment CF4113LBT-10000-A99 addresses commercial refrigeration and refrigerator cooling through a 100～240 VAC EC axial fan platform measuring 120 × 120 × 38 mm. Its 2100 rpm rating defines a lower-speed operating point. During reliability evaluation, compare the model's product configuration. Treat bearing and life data as suffix-specific.	100～240	120x120x38mm	109.2	42.3	1.8	2100	31.4
CF4113LBL-10000-A99 \| SUNON 100～240V 1.8W 120x120x38mm EC Axial Fan for Refrigeration Equipment SUNON CF4113LBL-10000-A99 combines a 120 × 120 × 38 mm EC axial fan platform with a 100～240 VAC rating for commercial refrigeration and refrigerator cooling. Its 2100 rpm rating defines a lower-speed operating point. The recorded system interface should guide reliability evaluation. Treat bearing and life data as suffix-specific.	100～240	120x120x38mm	109.2	42.3	1.8	2100	31.4
CF4113LBL-0000-AE9 \| SUNON 100～240V 1.8W 120x120x38mm 109.2m3/h EC Axial Fan for New Energy Configured for inverters, energy-storage systems, and charging equipment, SUNON CF4113LBL-0000-AE9 is a 100～240 VAC EC axial fan in a 120 × 120 × 38 mm frame. Its 2000 rpm rating defines a lower-speed operating point. For reliability evaluation, start with the supplied cooling specification. Treat bearing and life data as suffix-specific.	100～240	120x120x38mm	109.2	42.3	1.8	2000	31.4
CF4113HBT-10000-A99 \| SUNON 100～240V 5.1W 120x120x38mm EC Axial Fan for Refrigeration Equipment Within commercial refrigeration and refrigerator cooling, SUNON CF4113HBT-10000-A99 serves as a 120 × 120 × 38 mm EC axial fan operating at 100～240 VAC. Up to 185.2 m³/h is its most prominent listed performance figure. Use the documented duty-point values when planning reliability evaluation. Treat bearing and life data as suffix-specific.	100～240	120x120x38mm	185.2	92.2	5.1	3600	44.9
CF4113HBL-10000-A99 \| SUNON 100～240V 5.1W 120x120x38mm 185.2m3/h EC Axial Fan for New Energy The 100～240 VAC SUNON CF4113HBL-10000-A99 is a EC axial fan sized 120 × 120 × 38 mm for inverters, energy-storage systems, and charging equipment. Up to 185.2 m³/h is its most prominent listed performance figure. Review its installation footprint during reliability evaluation. Treat bearing and life data as suffix-specific.	100～240	120x120x38mm	185.2	92.2	5.1	3600	44.9
CF4113HBL-0000-AE9 \| SUNON 100～240V 5.1W 120x120x38mm 185.2m3/h EC Axial Fan for New Energy The CF4113HBL-0000-AE9 is SUNON's 100～240 VAC, 120 × 120 × 38 mm EC axial fan option for inverters, energy-storage systems, and charging equipment. Up to 185.2 m³/h is its most prominent listed performance figure. Treat the selection parameters as a primary input to reliability evaluation. Treat bearing and life data as suffix-specific.	100～240	120x120x38mm	185.2	92.2	5.1	3500	44.9

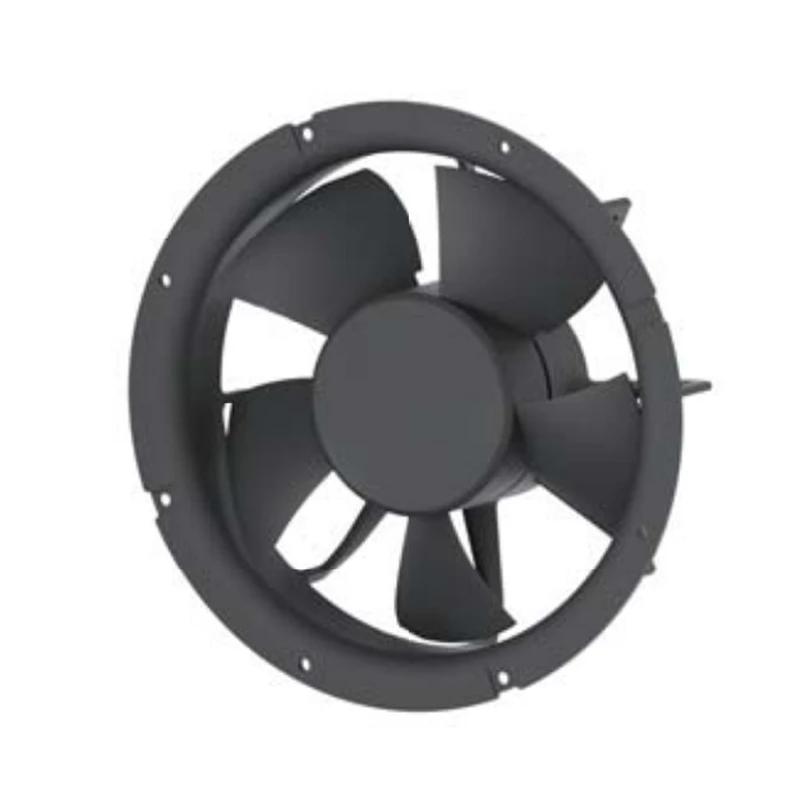

CF2207LBL-0000-HE9 \| SUNON ø250x77mm EC Axial Fan for Refrigeration Equipment For compact cooling within commercial refrigeration and refrigerator cooling, the CF2207LBL-0000-HE9 provides a 0 VAC EC axial fan configuration measuring ø250 × 77 mm. Its ø250 × 77 mm format is the main stated selection detail. Base reliability evaluation on the stated rated dataset. Treat bearing and life data as suffix-specific.	0	ø250x77mm	-	-	-	-	-

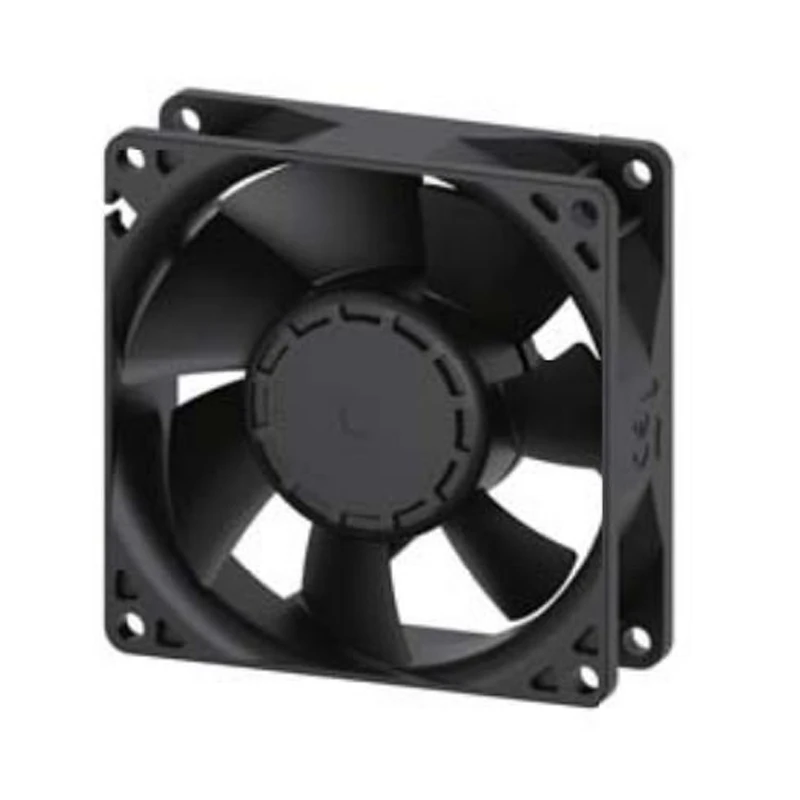

CF2092HVL-10000-999 \| SUNON 200V 50W 92x92x25mm 0.4m3/h EC Axial Fan for Refrigeration Equipment SUNON CF2092HVL-10000-999 combines a 92 × 92 × 25 mm EC axial fan platform with a 200 VAC rating for commercial refrigeration and refrigerator cooling. Its 0.4 m³/h airflow rating suits the stated equipment-cooling role. During reliability evaluation, compare the model's motor input. Treat bearing and life data as suffix-specific.	200	92x92x25mm	0.4	65.8	50	60	3.8
CF2082HVL-10000-999 \| SUNON 200V 50W 80x80x25mm 0.4m3/h EC Axial Fan for Refrigeration Equipment Engineered for commercial refrigeration and refrigerator cooling, SUNON CF2082HVL-10000-999 is a 200 VAC EC axial fan in a 80 × 80 × 25 mm frame. Its 0.4 m³/h airflow rating suits the stated equipment-cooling role. The recorded ventilation capacity should guide reliability evaluation. Treat bearing and life data as suffix-specific.	200	80x80x25mm	0.4	63.5	50	60	3.6
CF2072HVL-10000-999 \| SUNON 200V 50W 70x70x25mm 0.5m3/h EC Axial Fan for Refrigeration Equipment Within commercial refrigeration and refrigerator cooling, SUNON CF2072HVL-10000-999 serves as a 70 × 70 × 25 mm EC axial fan operating at 200 VAC. Its 60 rpm rating defines a lower-speed operating point. For reliability evaluation, start with the supplied equipment fit. Treat bearing and life data as suffix-specific.	200	70x70x25mm	0.5	75.7	50	60	3.6

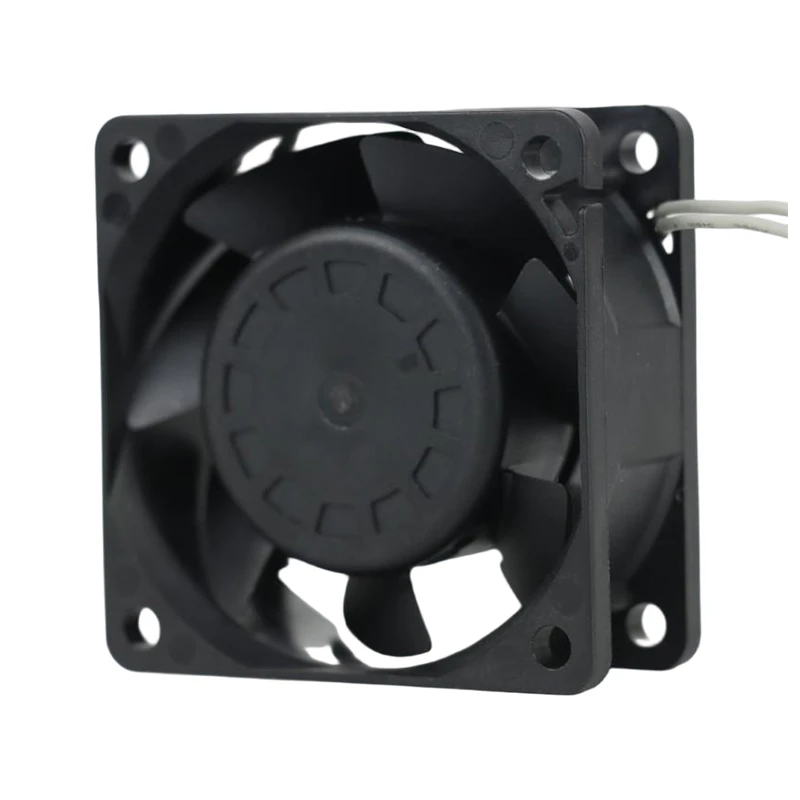

CF2062HVL-10000-999 \| SUNON 200V 50W 60x60x25mm 0.5m3/h EC Axial Fan for Refrigeration Equipment Built for commercial refrigeration and refrigerator cooling, SUNON CF2062HVL-10000-999 uses a 60 × 60 × 25 mm EC axial fan arrangement at 200 VAC. Its 60 rpm rating defines a lower-speed operating point. Use the documented suffix definition when planning reliability evaluation. Treat bearing and life data as suffix-specific.	200	60x60x25mm	0.5	72.7	50	60	3.3

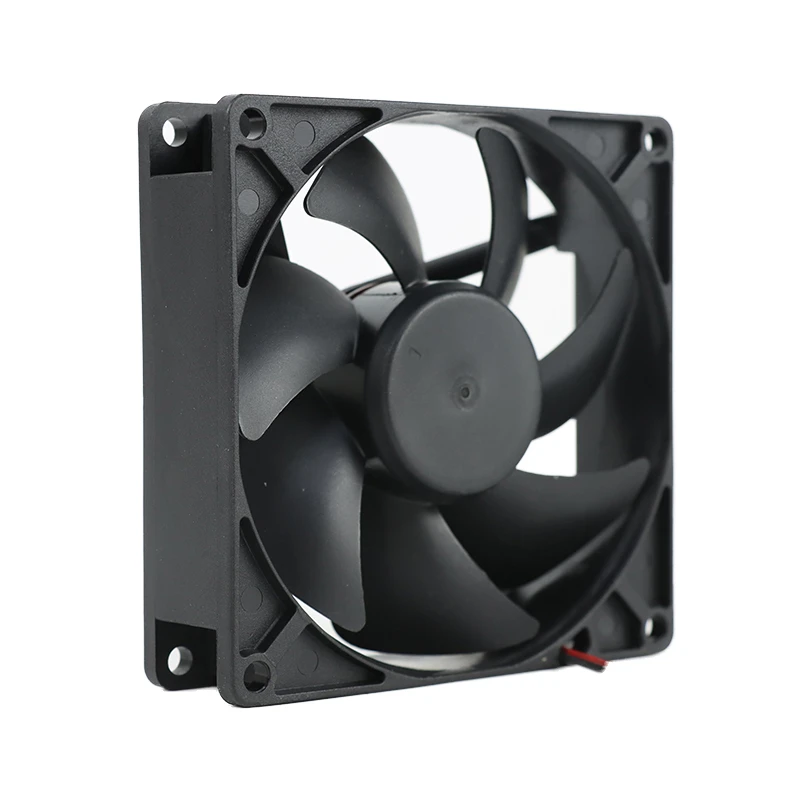

CF1092HVL-10000-999 \| SUNON 100V 50W 92x92x25mm 0.4m3/h EC Axial Fan for Refrigeration Equipment The CF1092HVL-10000-999 is SUNON's 100 VAC, 92 × 92 × 25 mm EC axial fan option for commercial refrigeration and refrigerator cooling. Its 0.4 m³/h airflow rating suits the stated equipment-cooling role. Review its catalog specification during reliability evaluation. Treat bearing and life data as suffix-specific.	100	92x92x25mm	0.4	57.3	50	60	3.3
CF1082HVL-10000-999 \| SUNON 100V 50W 80x80x25mm 0.4m3/h EC Axial Fan for Refrigeration Equipment A 80 × 80 × 25 mm frame and 100 VAC rating define CF1082HVL-10000-999, a EC axial fan for commercial refrigeration and refrigerator cooling. A listed noise value of 3.2 dB is the model's key differentiator. Treat the thermal-duty record as a primary input to reliability evaluation. Treat bearing and life data as suffix-specific.	100	80x80x25mm	0.4	52.6	50	60	3.2
CF1072HVL-10000-999 \| SUNON 100V 50W 70x70x25mm 0.4m3/h EC Axial Fan for Refrigeration Equipment SUNON CF1072HVL-10000-999 combines a 70 × 70 × 25 mm EC axial fan platform with a 100 VAC rating for commercial refrigeration and refrigerator cooling. A listed noise value of 3 dB is the model's key differentiator. Base reliability evaluation on the stated performance curve. Treat bearing and life data as suffix-specific.	100	70x70x25mm	0.4	58.5	50	60	3
CF1062HVL-10000-999 \| SUNON 100V 50W 60x60x25mm 0.4m3/h EC Axial Fan for Refrigeration Equipment Sized for commercial refrigeration and refrigerator cooling, SUNON CF1062HVL-10000-999 is a 100 VAC EC axial fan in a 60 × 60 × 25 mm frame. A listed noise value of 2.7 dB is the model's key differentiator. During reliability evaluation, compare the model's mounting size. Treat bearing and life data as suffix-specific.	100	60x60x25mm	0.4	54.8	50	60	2.7

Showing

1-20

1-20 21-23

of 23

1 2

GO page

About EC Fans

How to Select the Right EC Fans

Choosing the right EC Fans starts with the operating point rather than the model name. Define the airflow you actually need in CFM or m³/h and the static pressure the fan must overcome, then look for units whose performance curves pass through that point with a safety margin instead of sitting at the edge of the curve.

Pay attention to the electrical details early. DC fans typically run on 12/24/48 V and integrate easily with control boards, while AC fans suit 115/230 V fixed-speed installations. If the airflow must change with load, choose EC technology with PWM or analog control and, where monitoring matters, a tachometer output so the controller can detect fan failure.

Environment and compliance come next. Match the IP rating to dust and moisture exposure, prefer ball bearings wherever the fan runs hot, vertically or around the clock, and confirm certifications — UL, CE, RoHS — against your destination market. Setting the acoustic limit in dBA early prevents late-stage redesign when the first unit proves too loud.

Finally, compare candidates on total delivery risk, not only on price: confirm stock for the quantity you need, check the lead time for the next batch, and ask for datasheets and dimension drawings before committing. Our team cross-checks curves, dimensions and electrical data for you before quotation There are currently 23 items in this category ready to compare.

Typical Applications and Use Cases for EC Fans

EC Fans appear in almost every sector where heat or stale air must be moved reliably. Typical environments include server rooms and data centers, refrigeration condensers and cold-store evaporators, HVAC air handling units, telecom cabinets, medical and laboratory equipment, welding and CNC machine enclosures, and renewable-energy power cabinets. In each of these settings the fan is a critical component: its failure stops production, damages stored goods or forces expensive emergency downtime.

One recurring scenario comes from control cabinet retrofits: the original fan is obsolete, the mounting hole pattern cannot change, and downtime is measured in hours. We match the old unit against current series by frame size, airflow and noise, propose the closest drop-in alternative, and ship with a datasheet that lets the electrician connect it without redesign.

For cold storage operators the pain is simple: a failed evaporator or condenser fan must be replaced now, not after a six-week import cycle. Matching blade diameter, speed and protection class against stocked equivalents lets us restore cooling capacity within days, which is why replacement supply has become a core part of this category for us.

Whether the project involves new equipment or the replacement of installed SUNON units, the workflow is the same: send us the operating point and constraints, and we return a validated selection with datasheets, curves and a clear lead time.

Frequently Asked Questions About Buying EC Fans

Do you support customized or OEM versions of EC Fans?

Yes. Beyond catalogue models we can discuss modified lead wires, connectors, speed curves, IP upgrades or private-label packaging for OEM projects. Customization usually starts from a defined annual quantity; our engineers will review your requirement and confirm feasibility, tooling cost and lead time before any commitment.

What warranty and after-sales support do you provide?

Every unit is covered by the manufacturer's warranty against defects in materials and workmanship, and we support you through the whole claim process so you deal with one supplier instead of chasing a factory overseas. If a failure appears in service, send us the serial number, operating conditions and photos, and we will arrange the replacement or credit path agreed in the quotation.

What technical documentation do you provide before purchase?

Datasheets, performance curves, dimension drawings and certification files (UL, CE, RoHS where applicable) are available on request before you buy — we believe a purchase order should follow a verified selection, not replace it. For project tenders we can also provide product comparison tables that put the candidate models side by side on the parameters you care about.
