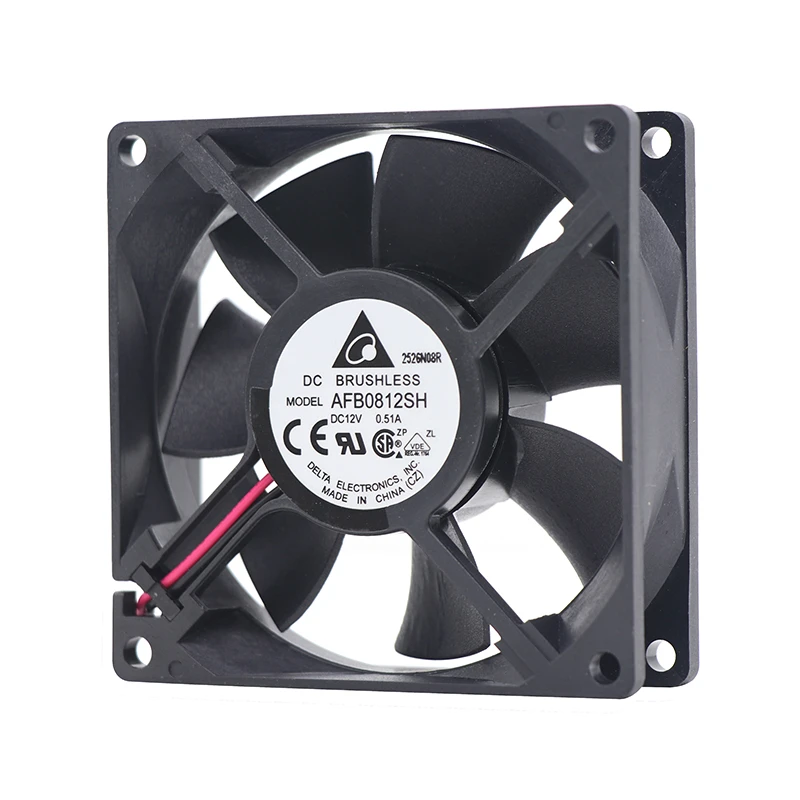

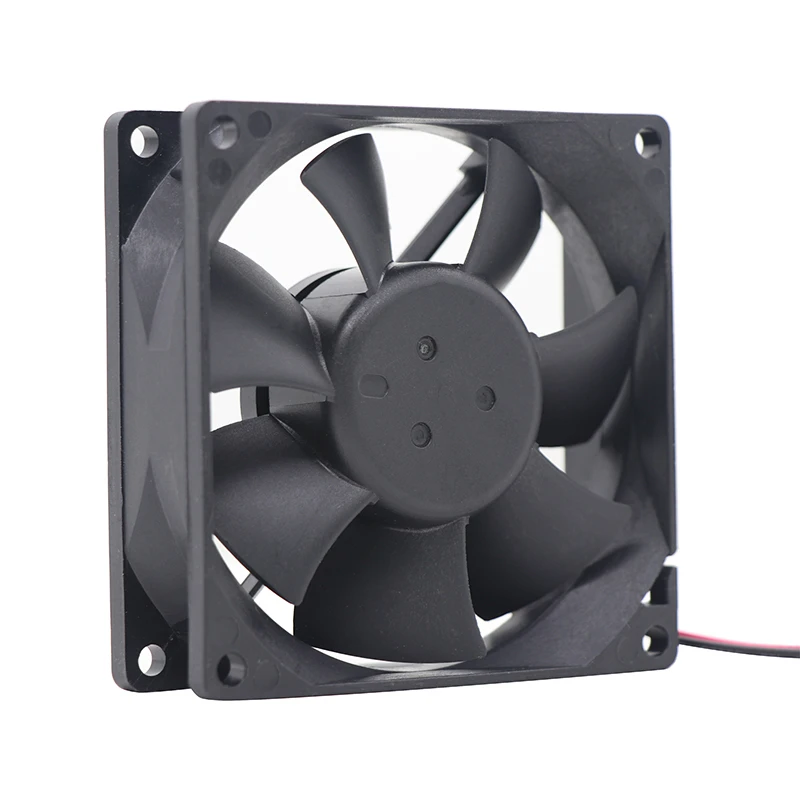

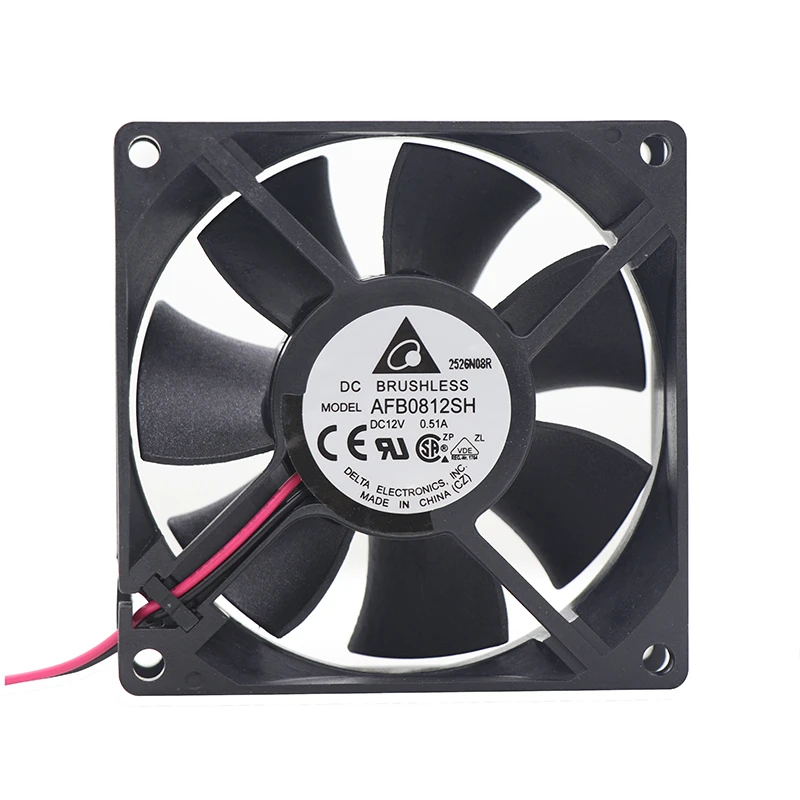

AFB0812SH Delta Blower Fan

Brand :: Delta

Model:: AFB0812SH | Delta Electronics 12VDC 4.08W Axial Fan for Server and Power Supply Cooling

Type:: Blower Fans

Industry:: Data Center Cooling

Description:: The AFB0812SH is a 12VDC axial fan for servers and power supplies with an 80 x 80 x 25 mm frame. Its listed 4000 rpm speed and 4.08 W input provide the main operating distinctions for this configuration.

Datasheet:: AFB0812SH | Delta Electronics 12VDC 4.08W Axial Fan for Server and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	808025
Max.Air Flow(m³/h)	27.4
Max.Pressure(Pa)	6.8
Input Power(W)	4.08
Speed(rpm)	4000
Noise(db)	40

Product Features

DC Equipment Cooling

Equipment manufacturers evaluating telecommunications equipment can consider Delta AFB0812SH, a brushless DC axial fan. The fan supports heat removal by keeping air moving through the selected cooling path.

A listed speed of 4000 rpm helps define the operating profile when reviewing airflow demand, mechanical mounting and the enclosure's acoustic target. The axial layout moves air along the fan axis, supporting a direct ventilation route through the equipment opening. Separating the intake from warmed exhaust improves the effectiveness of air exchange across the equipment section.

For OEM design-in and replacement sourcing, confirm the full suffix, connector and mounting pattern to support dependable service in the intended assembly.

Application Industry

Server & Storage

Delta AFB0812SH serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

In power-supply equipment, Delta AFB0812SH helps remove heat from power-conversion components. The cooling solution addresses electrical conversion losses to support dependable power delivery.

Telecommunications

For telecommunications equipment, Delta AFB0812SH provides equipment cooling around densely arranged electronic assemblies. Managing continuous communication duty helps maintain service continuity.

Industrial Controls

In industrial control equipment, air movement helps handle heat accumulated within enclosures. Delta AFB0812SH supports cooling around controllers and electronic modules, contributing to stable automation operation.

Frequently Asked Questions

Why choose AFB0812SH over a general-purpose fan?

AFB0812SH provides a defined axial fan format with a listed 4000 rpm speed in a 80 x 80 x 25 mm size. Compare its fan curve with the actual duty point rather than assuming a universal advantage.

Which certifications or standards apply to AFB0812SH?

RoHS Compliant is listed in the workbook. Obtain the current exact-model declaration and datasheet before claiming safety approvals, ingress protection or international compliance.

Can AFB0812SH reduce total ownership cost?

The provided parameters do not prove a cost saving. Compare purchase price, power at the real operating point, service access, expected life and downtime risk for the complete cooling system.

How should the pressure capability of AFB0812SH be checked?

The workbook lists 6.8 Pa maximum pressure. Maximum pressure and maximum airflow occur at different points, so select AFB0812SH from its curve at the required system resistance.

What equipment is AFB0812SH intended to cool?

AFB0812SH is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

Does AFB0812SH support speed control?

The filter data does not confirm a control interface. Check the exact-model datasheet and wiring for PWM, analog control, FG/RD feedback or fixed-speed operation before connection.
