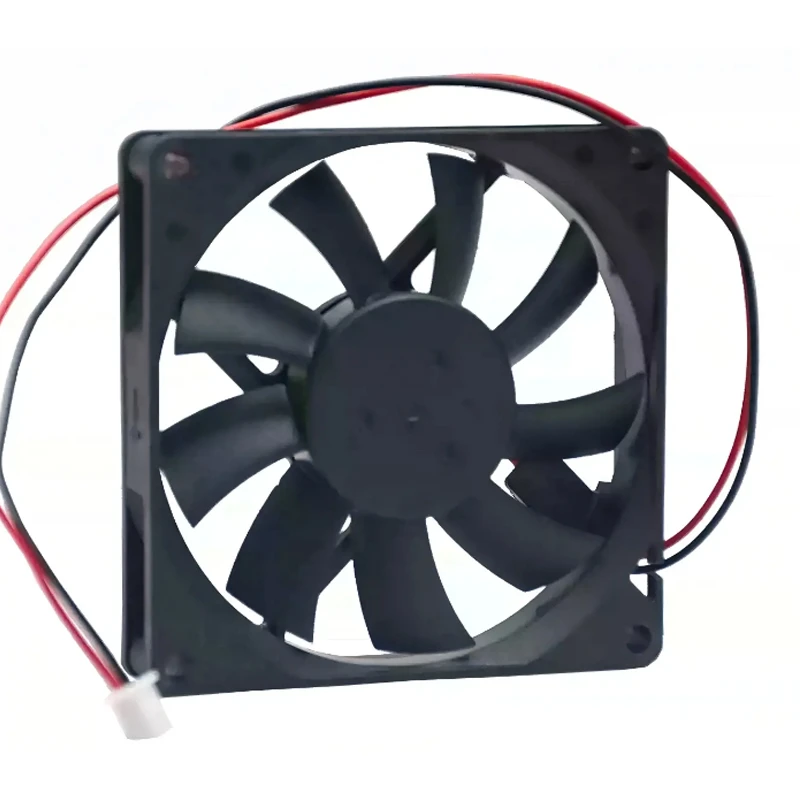

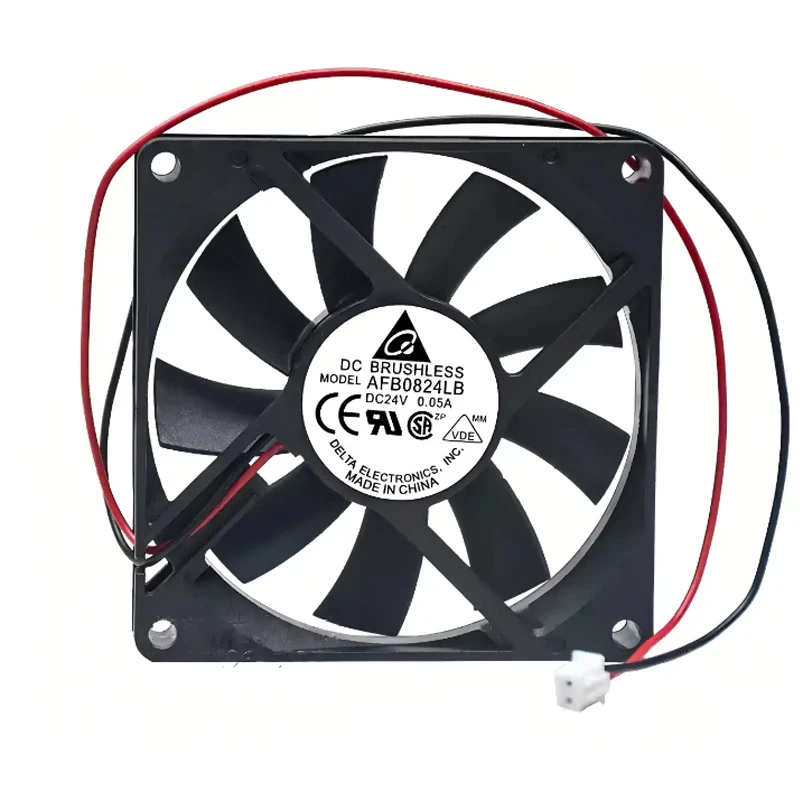

AFB0824LB Delta Blower Fan

Brand :: Delta

Model:: AFB0824LB | Delta Electronics 24VDC 1.2W Axial Fan for Server and Power Supply Cooling

Type:: Blower Fans

Industry:: Data Center Cooling

Description:: AFB0824LB emphasizes a 1.2 W listed input within an 80 mm axial fan frame. Powered by 24VDC for server and power-supply cooling, it uses a 15 mm-deep housing and a 2400 rpm rotor, with 42 m3/h maximum airflow.

Datasheet:: AFB0824LB | Delta Electronics 24VDC 1.2W Axial Fan for Server and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	808015
Max.Air Flow(m³/h)	42
Max.Pressure(Pa)	21.6
Input Power(W)	1.2
Speed(rpm)	2400
Noise(db)	27.5

Product Features

Quiet Duty Cooling

The Delta AFB0824LB is a brushless DC axial fan for server and storage equipment. It provides a defined airflow path where equipment layout leaves limited room for passive heat removal.

A listed speed of 2400 rpm helps define the operating profile when reviewing airflow demand, mechanical mounting and the enclosure's acoustic target. The series combines ball-bearing construction with UL 94V-0 materials, addressing mechanical durability and component flammability requirements. Keeping inlet obstructions clear helps preserve useful airflow without spending extra power on avoidable system losses.

Choose it for a model-specific cooling requirement, with connector, operating conditions and airflow direction checked before release to production.

Application Industry

Server & Storage

Delta AFB0824LB serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

Delta AFB0824LB supports cooling in power-supply equipment. Air circulation around power-conversion components helps manage electrical conversion losses, supporting dependable power delivery.

Telecommunications

In telecommunications equipment, Delta AFB0824LB helps remove heat from densely arranged electronic assemblies. The cooling solution addresses continuous communication duty to support service continuity.

Industrial Controls

For industrial control equipment, Delta AFB0824LB provides equipment cooling around controllers and electronic modules. Managing heat accumulated within enclosures helps maintain stable automation operation.

Frequently Asked Questions

What operating speed is listed for AFB0824LB?

2400 rpm is listed in the workbook. This value alone does not establish adjustable-speed capability; confirm the control input and permitted operating range in the exact datasheet.

How should the pressure capability of AFB0824LB be checked?

The workbook lists 21.6 Pa maximum pressure. Maximum pressure and maximum airflow occur at different points, so select AFB0824LB from its curve at the required system resistance.

How should noise from AFB0824LB be evaluated?

The listed noise value is 27.5 dB, but compare values only under matching test conditions. Installed noise also depends on speed, restriction, resonance and enclosure geometry.

Is AFB0824LB suitable for a high-reliability cooling system?

Suitability depends on thermal margin, operating temperature, alarm or feedback requirements and system redundancy. Qualify AFB0824LB at the actual duty point; the model name alone is not a reliability guarantee.

What equipment is AFB0824LB intended to cool?

AFB0824LB is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What supply voltage should be used for AFB0824LB?

24VDC is listed for AFB0824LB. Verify the allowable input range, phase, frequency where applicable, polarity and wiring diagram in the exact specification.
