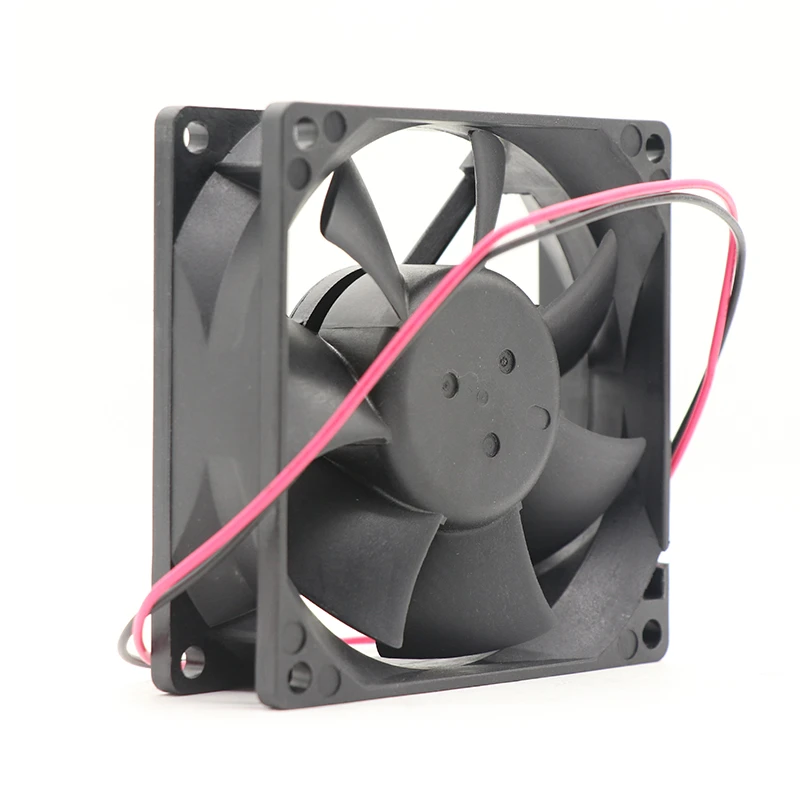

AFB0824VH Delta Compact Fan

Brand :: Delta

Model:: AFB0824VH | Delta Electronics 24VDC 3.36W Axial Fan for Server and Power Supply Cooling

Type:: Compact Fans

Industry:: Data Center Cooling

Description:: The AFB0824VH pairs a 3600 rpm rotor with a 24VDC axial fan motor for server and power-supply cooling. Its 80 x 80 x 25 mm body is rated at 3.36 W input, separating it from the faster SH model in the list.

Datasheet:: AFB0824VH | Delta Electronics 24VDC 3.36W Axial Fan for Server and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	808025
Max.Air Flow(m³/h)	72
Input Power(W)	3.36
Speed(rpm)	3600
Noise(db)	38

Product Features

DC Equipment Cooling

The Delta AFB0824VH is a brushless DC axial fan for server and storage equipment. It provides a defined airflow path where equipment layout leaves limited room for passive heat removal.

The 24 V DC supply requirement gives electrical designers a clear basis for matching the fan to the equipment power architecture. The series combines ball-bearing construction with UL 94V-0 materials, addressing mechanical durability and component flammability requirements. Separating the intake from warmed exhaust improves the effectiveness of air exchange across the equipment section.

For procurement, retain the complete model code and check the interface against the drawing; this supports repeatable assembly and accurate replacement ordering.

Application Industry

Server & Storage

Delta AFB0824VH serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

In power-supply equipment, Delta AFB0824VH helps remove heat from power-conversion components. The cooling solution addresses electrical conversion losses to support dependable power delivery.

Telecommunications

For telecommunications equipment, Delta AFB0824VH provides equipment cooling around densely arranged electronic assemblies. Managing continuous communication duty helps maintain service continuity.

Industrial Controls

In industrial control equipment, air movement helps handle heat accumulated within enclosures. Delta AFB0824VH supports cooling around controllers and electronic modules, contributing to stable automation operation.

Frequently Asked Questions

Is stock and lead time stable for AFB0824VH?

In Stock is shown in the workbook, but this is not a delivery guarantee. Confirm the complete part number, quantity, current inventory and committed lead time when ordering.

What operating speed is listed for AFB0824VH?

3600 rpm is listed in the workbook. This value alone does not establish adjustable-speed capability; confirm the control input and permitted operating range in the exact datasheet.

How should the pressure capability of AFB0824VH be checked?

No maximum-pressure value is present in the filter row. Match the exact-model curve to the system resistance before using the fan in a restricted airflow path.

How should the energy efficiency of AFB0824VH be assessed?

The listed input-power figure is 3.36 W, but efficiency must be evaluated at the required airflow and pressure. Check the applicable fan curve and test conditions before comparison.

What equipment is AFB0824VH intended to cool?

AFB0824VH is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What maximum airflow is listed for AFB0824VH?

The workbook lists a maximum airflow of 72 m3/h. This is not the airflow at every system resistance; use the applicable pressure-flow curve to identify the installed operating point.

Related Products

AFB0624VH | Delta Electronics 24VDC 3.36W Axial Fan for Server and Power Supply Cooling

AFB0624VH offers a 60 x 60 x 25.4 mm axial fan option for server and power-supply cooling. At 24VDC, the model lists a 5500 rpm rotor and 85.9 Pa maximum static pressure, with 3.36 W input specified.

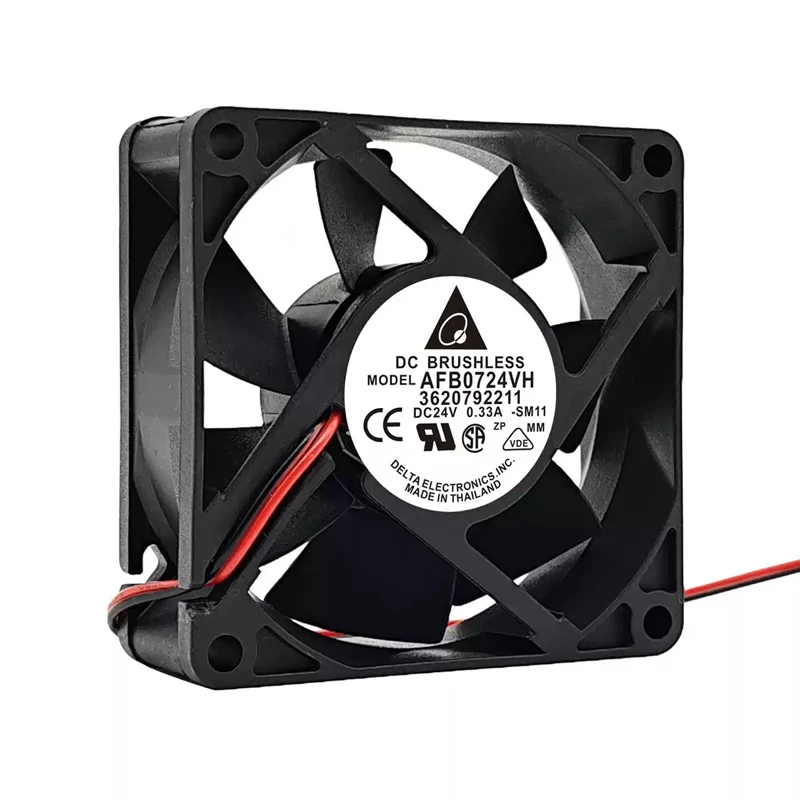

AFB0724VH | Delta Electronics 24VDC 6.48W Axial Fan for Server and Power Supply Cooling

The 70 mm AFB0724VH axial fan is listed for server cooling on 24VDC. A 25.4 mm body depth defines the required clearance, while its 6.48 W input distinguishes it from the supplied 12VDC version of similar speed.

AFB0624MB | Delta Electronics 24VDC 1.44W Axial Fan for Server and Power Supply Cooling

A 1.44 W input makes AFB0624MB a lower-input entry among the listed 24VDC axial fan fans. For server and power-supply ventilation, it provides a 60 x 60 x 15 mm format with a specified 4000 rpm rotor.

AFB0612HH-A | Delta Electronics 12VDC 2.04W Axial Fan for Server and Power Supply Cooling

AFB0612HH-A combines a 5000 rpm rotor with a 12VDC axial fan motor for server and power-supply cooling. Its listed 2.04 W input and 74 Pa maximum static pressure accompany a 60 x 60 x 25.4 mm frame.

AFB1224GHE-C | Delta Electronics 24VDC 27.6W Axial Fan for Server and Power Supply Cooling

AFB1224GHE-C is a 24VDC axial fan for server chassis, with 409.7 m3/h listed maximum airflow. Its 27.6 W input differs from the 12VDC GHE entry; retain the -C suffix when checking connector and control configuration.

AFB0912HH | Delta Electronics 12VDC 3W Axial Fan for Server, Storage and Power Supply Cooling

AFB0912HH supports storage-enclosure cooling with a 12VDC axial fan design. At 3200 rpm and 3 W listed input, it represents a distinct operating choice among the supplied 92 mm fans, with a specified 25.4 mm depth.
