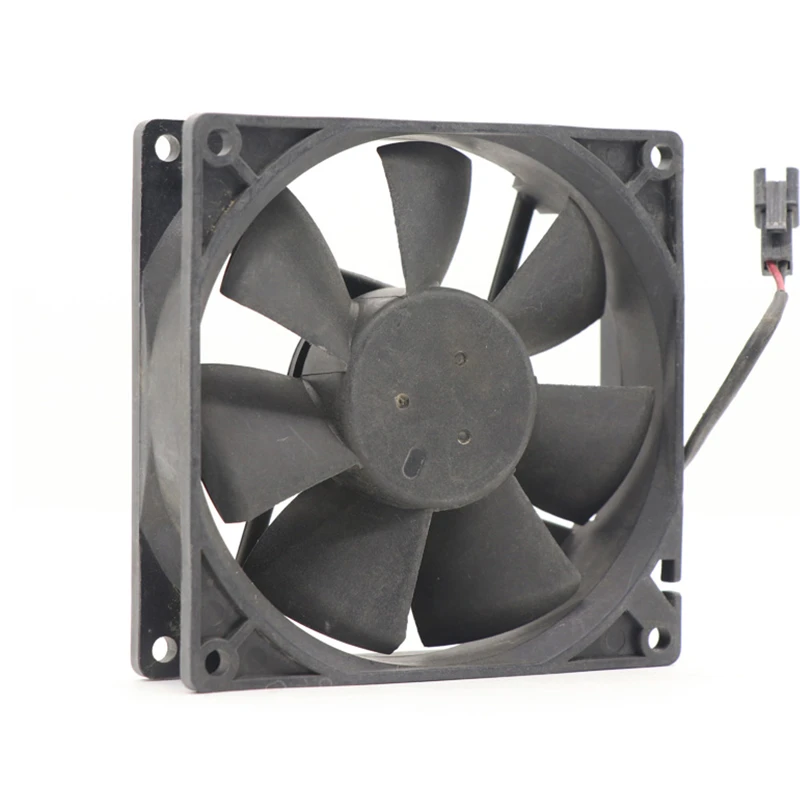

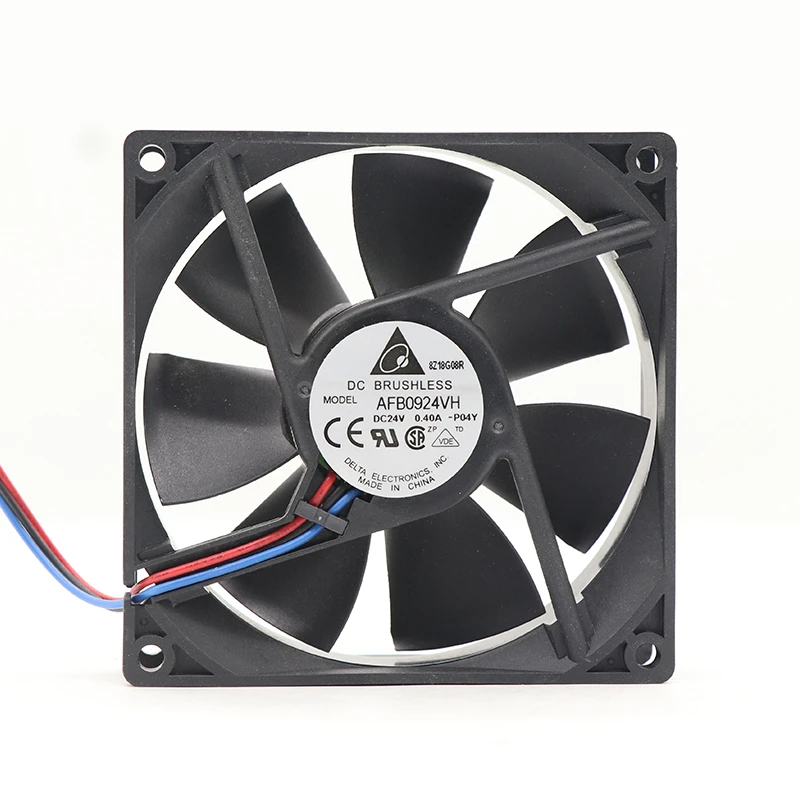

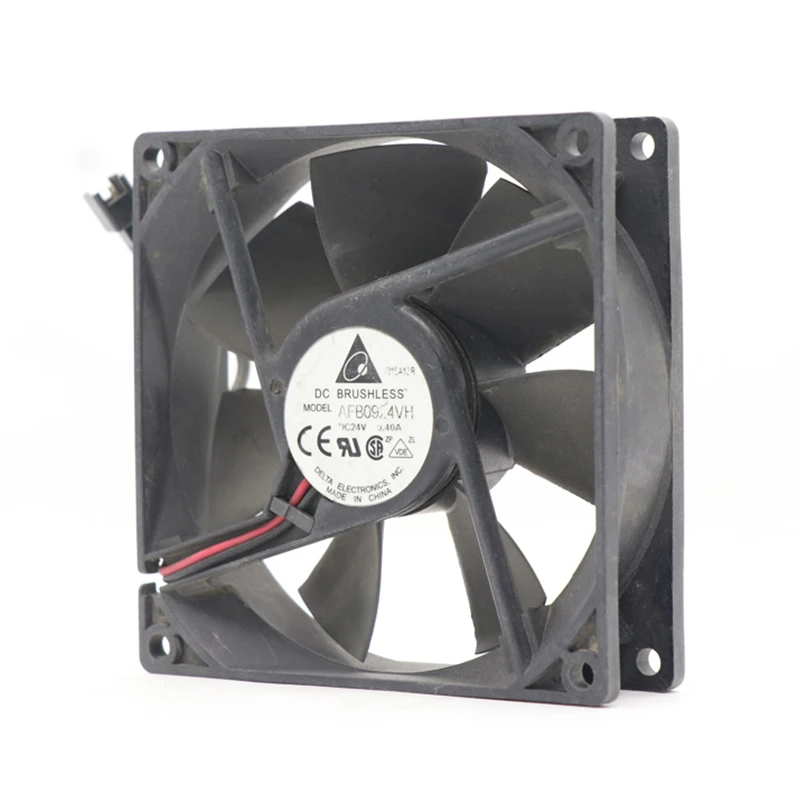

AFB0924VH Delta Compact Fan

Brand :: Delta

Model:: AFB0924VH | Delta Electronics 24VDC 5.28W Axial Fan for Server and Power Supply Cooling

Type:: Compact Fans

Industry:: Data Center Cooling

Description:: A 25 mm-deep, 92 mm frame makes AFB0924VH a defined fit for server or power-supply ventilation. The 24VDC axial fan is specified at 3800 rpm, with 115 m3/h maximum airflow and 5.28 W listed input.

Datasheet:: AFB0924VH | Delta Electronics 24VDC 5.28W Axial Fan for Server and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	929225
Max.Air Flow(m³/h)	115
Input Power(W)	5.28
Speed(rpm)	3800
Noise(db)	45

Product Features

DC Equipment Cooling

Equipment manufacturers evaluating telecommunications equipment can consider Delta AFB0924VH, a brushless DC axial fan. The fan supports heat removal by keeping air moving through the selected cooling path.

Its listed 92 x 92 x 25 mm format defines the space needed for installation, helping designers reserve room for adjacent components and cable routing. The series combines ball-bearing construction with UL 94V-0 materials, addressing mechanical durability and component flammability requirements. Matching the fan curve to the finished air path supports efficient cooling; free-air flow alone does not determine installed performance.

For OEM design-in and replacement sourcing, confirm the full suffix, connector and mounting pattern to support dependable service in the intended assembly.

Application Industry

Server & Storage

Delta AFB0924VH serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

For power-supply equipment, Delta AFB0924VH provides equipment cooling around power-conversion components. Managing electrical conversion losses helps maintain dependable power delivery.

Telecommunications

In telecommunications equipment, air movement helps handle continuous communication duty. Delta AFB0924VH supports cooling around densely arranged electronic assemblies, contributing to service continuity.

Industrial Controls

Delta AFB0924VH supports cooling in industrial control equipment. Air circulation around controllers and electronic modules helps manage heat accumulated within enclosures, supporting stable automation operation.

Frequently Asked Questions

What maximum airflow is listed for AFB0924VH?

The workbook lists a maximum airflow of 115 m3/h. This is not the airflow at every system resistance; use the applicable pressure-flow curve to identify the installed operating point.

What should be checked if AFB0924VH fails to start?

Isolate power first. Verify the approved supply, connector, polarity or phase, control-enable input and any obstruction; follow the exact specification and do not bypass protection circuits.

Why choose AFB0924VH over a general-purpose fan?

AFB0924VH provides a defined axial fan format with a listed 3800 rpm speed in a 92 x 92 x 25 mm size. Compare its fan curve with the actual duty point rather than assuming a universal advantage.

What equipment is AFB0924VH intended to cool?

AFB0924VH is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What installation space is required for AFB0924VH?

The workbook lists 92 x 92 x 25 mm. Confirm overall depth, hole pattern, connector clearance and guard or inlet-ring dimensions in the exact mechanical drawing.

How should the energy efficiency of AFB0924VH be assessed?

The listed input-power figure is 5.28 W, but efficiency must be evaluated at the required airflow and pressure. Check the applicable fan curve and test conditions before comparison.
