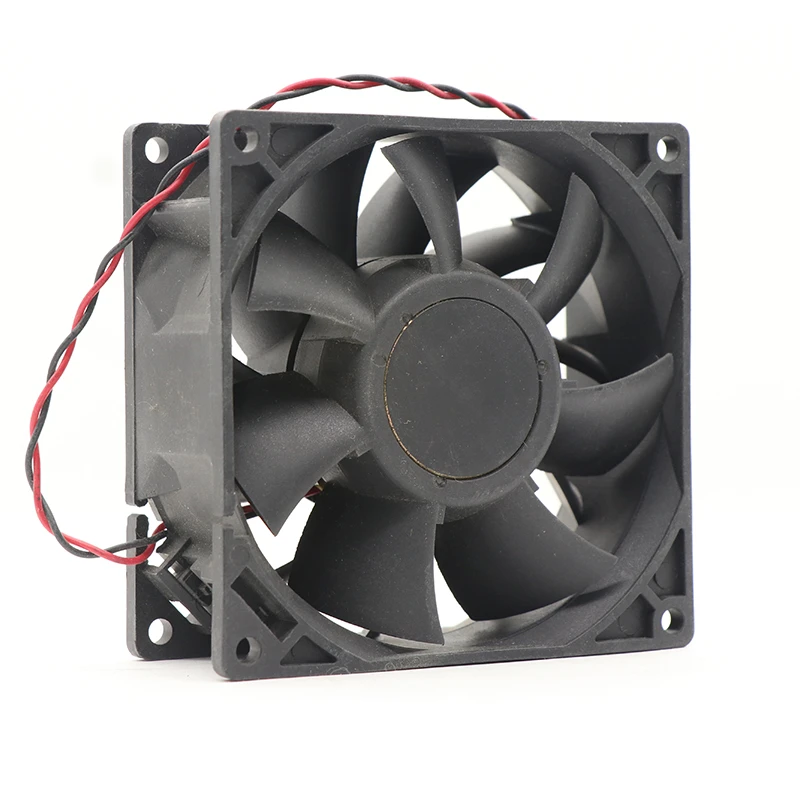

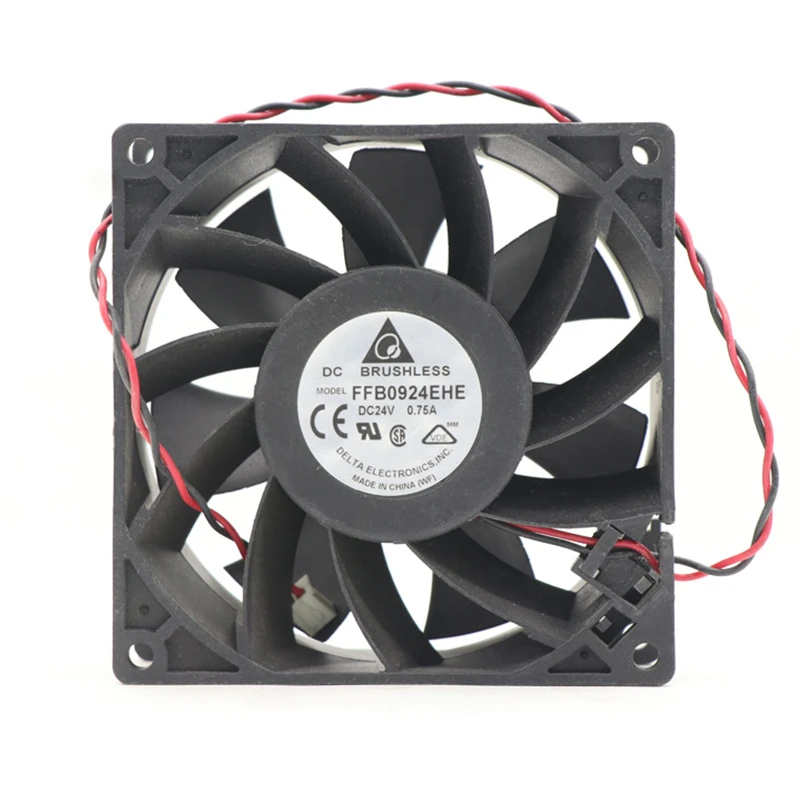

FFB0924EHE Delta Compact Fan

Brand :: Delta

Model:: FFB0924EHE | Delta Electronics 24VDC 12W Axial Fan for Server and Telecommunications Cooling

Type:: Compact Fans

Industry:: Data Center Cooling

Description:: FFB0924EHE combines a 92 x 92 x 38 mm axial fan assembly with 24VDC operation for telecom and server cooling. Its listed 187 m3/h maximum airflow is paired with a 4800 rpm speed and 12 W input.

Datasheet:: FFB0924EHE | Delta Electronics 24VDC 12W Axial Fan for Server and Telecommunications Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	929238
Max.Air Flow(m³/h)	187
Max.Pressure(Pa)	17
Input Power(W)	12
Speed(rpm)	4800
Noise(db)	55

Product Features

DC Equipment Cooling

Delta FFB0924EHE serves power-supply equipment as a brushless DC axial fan. Equipment builders can use its mechanical format to establish forced ventilation near heat-producing parts.

Its listed 92 x 92 x 38 mm format defines the space needed for installation, helping designers reserve room for adjacent components and cable routing. The series uses ball-bearing motor support for rotational durability, giving OEMs a service-life-oriented construction for equipment cooling. Acoustic results depend on the enclosure and duty point; smooth inlet geometry helps control avoidable airflow noise.

For system integrators, a confirmed operating point and exact interface match provide the basis for stable cooling and dependable replacement planning.

Application Industry

Server & Storage

Delta FFB0924EHE serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

UPS Equipment

Delta FFB0924EHE supports cooling in uninterruptible power systems. Air circulation around power electronics helps manage heat produced during power conversion, supporting stable backup-power operation.

Power Supplies

In power-supply equipment, Delta FFB0924EHE helps remove heat from power-conversion components. The cooling solution addresses electrical conversion losses to support dependable power delivery.

Telecommunications

For telecommunications equipment, Delta FFB0924EHE provides equipment cooling around densely arranged electronic assemblies. Managing continuous communication duty helps maintain service continuity.

Frequently Asked Questions

What operating speed is listed for FFB0924EHE?

4800 rpm is listed in the workbook. This value alone does not establish adjustable-speed capability; confirm the control input and permitted operating range in the exact datasheet.

Does FFB0924EHE support speed control?

The filter data does not confirm a control interface. Check the exact-model datasheet and wiring for PWM, analog control, FG/RD feedback or fixed-speed operation before connection.

What supply voltage should be used for FFB0924EHE?

24VDC is listed for FFB0924EHE. Verify the allowable input range, phase, frequency where applicable, polarity and wiring diagram in the exact specification.

What equipment is FFB0924EHE intended to cool?

FFB0924EHE is listed for Server and Telecommunications cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What should be checked if FFB0924EHE fails to start?

Isolate power first. Verify the approved supply, connector, polarity or phase, control-enable input and any obstruction; follow the exact specification and do not bypass protection circuits.

Can FFB0924EHE directly replace another fan?

A matching outline alone does not prove compatibility. Check 24VDC, mounting dimensions, connector, pinout, airflow direction, control signals and the required pressure-flow point.

Related Products

FFB1224EHE | Delta Electronics 24VDC 24W Axial Fan for Server and Telecommunications Cooling

For server and telecom ventilation, FFB1224EHE is a 24VDC axial fan with a 24 W input rating. Its 120 x 120 x 38 mm dimensions and 4000 rpm speed offer a defined mechanical and electrical selection profile.

FFB0824EHE | Delta Electronics 24VDC 12W Axial Fan for Server and Telecommunications Cooling

The FFB0824EHE is an 80 mm axial fan for telecom cooling on 24VDC. With 5700 rpm listed for its 38 mm-deep assembly, rotor speed and housing depth are central checks when choosing this model for an equipment rack.

FFB1212EHE | Delta Electronics 12VDC 24W Axial Fan for Server and Telecommunications Cooling

FFB1212EHE supports server and telecom ventilation with 322.8 m3/h listed maximum airflow. The 12VDC axial fan combines a 120 x 120 x 38 mm frame with a 4000 rpm speed and 24 W electrical input.

FFB0812EHE | Delta Electronics 12VDC 10.8W Axial Fan for Server and Telecommunications Cooling

For server airflow in an 80 mm frame, FFB0812EHE uses a 38 mm-deep axial design. The 12VDC fan has a 5700 rpm rating and a listed maximum airflow of 136 m3/h, with 10.8 W input power specified.

FFB0612EHE | Delta Electronics 12VDC 14.4W Axial Fan for Server and Telecommunications Cooling

FFB0612EHE is the 12VDC axial fan configuration with 14.4 W listed input in this 60 mm telecom-cooling group. The 38 mm-deep housing permits a specific mechanical fit; its nominal speed is recorded as 8000 rpm.

FFB0624EHE | Delta Electronics 24VDC 9.12W Axial Fan for Server and Telecommunications Cooling

FFB0624EHE brings a 38 mm-deep, 60 mm axial format to server and telecom cooling. The 24VDC model runs at 8000 rpm, with 85.34 m3/h maximum airflow specified for this higher-speed enclosure fan.
