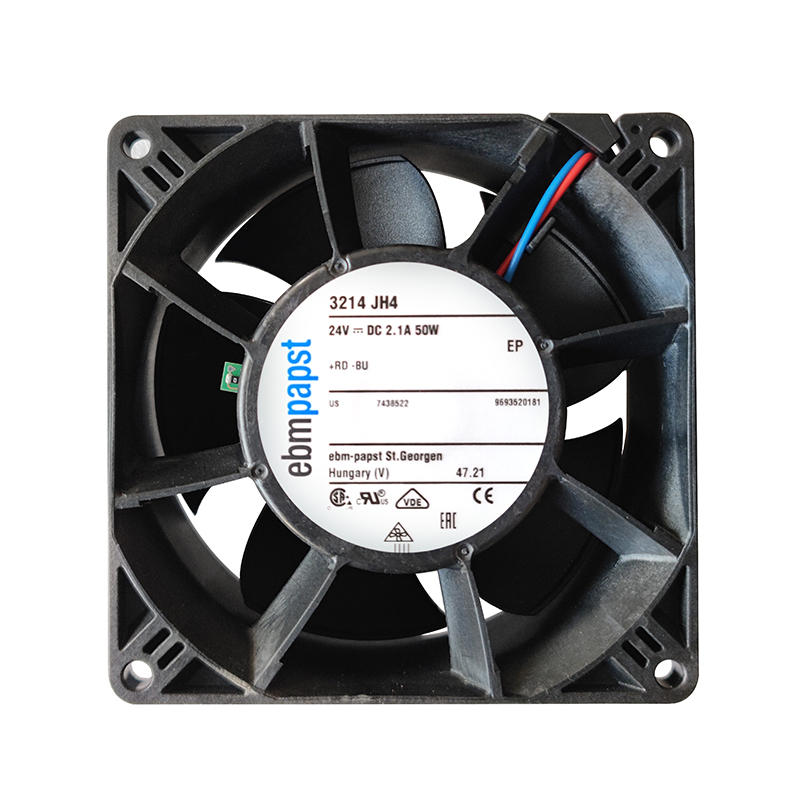

3214JH4 ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 3214JH4 | ebm-papst 24V 50W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 3214JH4 is a high-performance dc axial fan engineered for drive modules and battery systems. It provides reliable airflow and efficient thermal management for demanding equipment.

Datasheet:: 3214JH4 | ebm-papst 24V 50W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	929238
Max.Air Flow(m³/h)	285
Input Power(W)	50
Speed(rpm)	13000

Product Features

High Airflow Cooling

Designed as a compact DC axial cooling fan, the ebmpapst 3214JH4 supports thermal management in drive modules, lithium-battery systems. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 24 V supply, and airflow up to 285 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. Its integrated frame, impeller and motor support stable ventilation. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

OEM buyers and automation engineers can consider the 3214JH4 for space-conscious cooling. Confirm airflow demand, wiring, mounting and temperature limits before design-in. Proper installation supports stable thermal control and long fan life.

Application Industry

Battery System Cooling

3214JH4 Helps ventilate lithium-battery control and power assemblies by moving heat away from densely installed electronic components.

Product Insights

Other Series Comparison — 3214JH4 vs Variants

How the 3214JH4 compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	5 m³/h	2 m³/h	130 m³/h	285 m³/h
Power	0.7 W	0.2 W	6.5 W	50 W
Noise	— dB	5 dB	— dB	— dB
Size	25258 mm	25258 mm	929238 mm	929238 mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 3214JH4 Other Fan

Condenser Cooling: The 3214JH4 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Is the 3214JH4 listed as RoHS compliant?

Yes. The workbook lists RoHS Compliant; request the exact-model document if formal confirmation is required.

How should the 3214JH4 be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.

What is the rated voltage of the ebmpapst 3214JH4?

The product data lists a rated voltage of 24 V. Match the supply before wiring.

What are the dimensions of the 3214JH4?

The listed size is 92*92*38 mm. Confirm mounting holes and available clearance before replacement.
