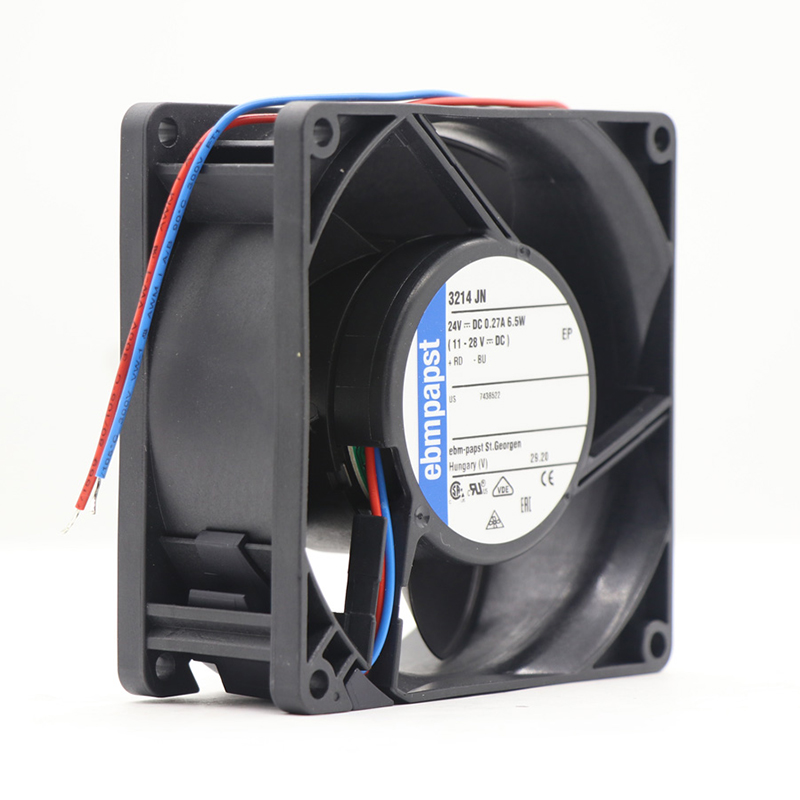

3214JN ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 3214JN | ebm-papst 24V 6.5W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 3214JN is a high-performance dc axial fan engineered for variable-frequency drives. It delivers reliable airflow, efficient cooling and dependable operation in compact equipment.

Datasheet:: 3214JN | ebm-papst 24V 6.5W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	929238
Max.Air Flow(m³/h)	130
Max.Pressure(Pa)	205
Input Power(W)	6.5
Speed(rpm)	6000
Noise(db)	51

Product Features

High Static Cooling

Designed as a compact DC axial cooling fan, the ebmpapst 3214JN supports thermal management in variable-frequency drives, drive modules, power supplies and power modules. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 24 V supply, airflow up to 130 m³/h, and maximum pressure of 205 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support for durable motor support. Listed noise is 51 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Drive System Cooling

3214JN Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Power Module Cooling

3214JN Delivers focused ventilation for power supplies and power modules used in compact electronic and automation assemblies.

Cabinet Ventilation

3214JN Supports continuous air exchange in control cabinets, helping manage localized heat around drives, controllers and power devices.

Enclosure Cooling

3214JN Provides compact forced-air cooling for equipment enclosures where internal electronics require a defined ventilation path.

Product Insights

Other Series Comparison — 3214JN vs Variants

How the 3214JN compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	5 m³/h	2 m³/h	130 m³/h	285 m³/h
Power	0.7 W	0.2 W	6.5 W	50 W
Noise	— dB	5 dB	— dB	— dB
Size	25258 mm	25258 mm	929238 mm	929238 mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 3214JN Other Fan

Condenser Cooling: The 3214JN axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What are the dimensions of the 3214JN?

The listed size is 92*92*38 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 3214JN?

The product data lists airflow up to 130 m³/h, speed 6000 RPM, pressure up to 205 Pa; confirm the required operating point.

What power or noise data is available for the 3214JN?

The listed values are input power 6.5 W, noise 51 dB. Use the exact model data for selection.
