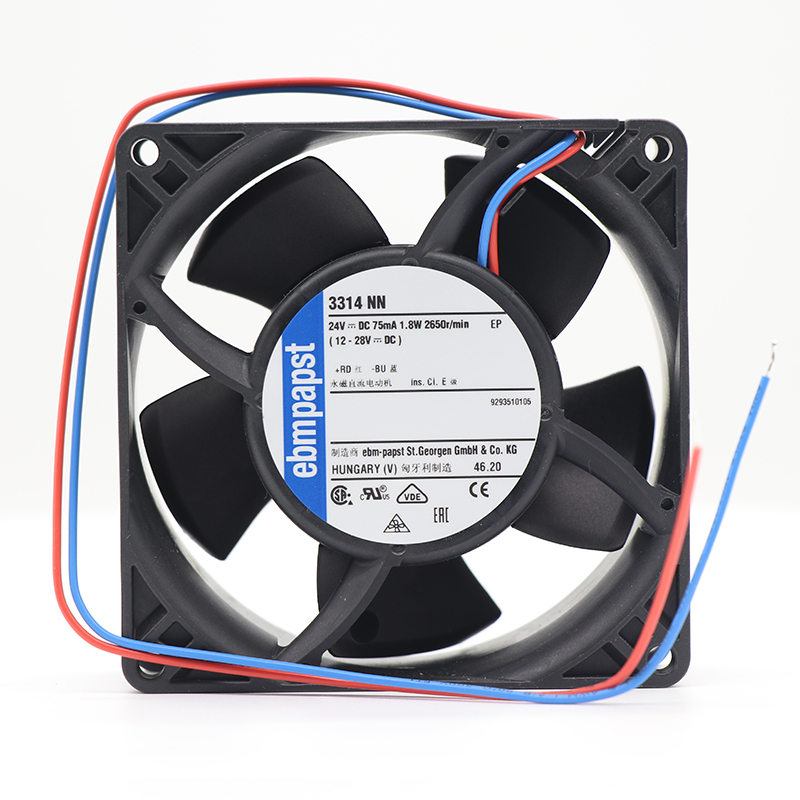

3314NN ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 3314NN | ebm-papst 24V 1.8W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 3314NN is a high-performance dc axial fan engineered for power supplies and power modules. It provides reliable airflow and efficient thermal management for demanding equipment.

Datasheet:: 3314NN | ebm-papst 24V 1.8W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	929232
Max.Air Flow(m³/h)	80
Input Power(W)	1.8
Speed(rpm)	2650

Product Features

Compact Airflow

The ebmpapst 3314NN is a compact DC axial cooling fan intended for power supplies and power modules. It integrates into equipment enclosures and automation modules where localized heat loads require stable air exchange in limited space.

Key selection data includes a 24 V supply, and airflow up to 80 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. Its integrated frame, impeller and motor support stable ventilation. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The 3314NN suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

Application Industry

Power Module Cooling

3314NN Delivers focused ventilation for power supplies and power modules used in compact electronic and automation assemblies.

Product Insights

Other Series Comparison — 3314NN vs Variants

How the 3314NN compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	5 m³/h	2 m³/h	130 m³/h	285 m³/h
Power	0.7 W	0.2 W	6.5 W	50 W
Noise	— dB	5 dB	— dB	— dB
Size	25258 mm	25258 mm	929238 mm	929238 mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 3314NN Other Fan

Condenser Cooling: The 3314NN axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Is the 3314NN compatible with my equipment?

Compare 24 V, 92*92*32 mm, airflow demand and connection details with your equipment.

Where can the 3314NN be used?

It is a compact DC axial fan listed for automation cooling and ventilation applications.

Is the 3314NN listed as RoHS compliant?

Yes. The workbook lists RoHS Compliant; request the exact-model document if formal confirmation is required.

How should the 3314NN be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.
