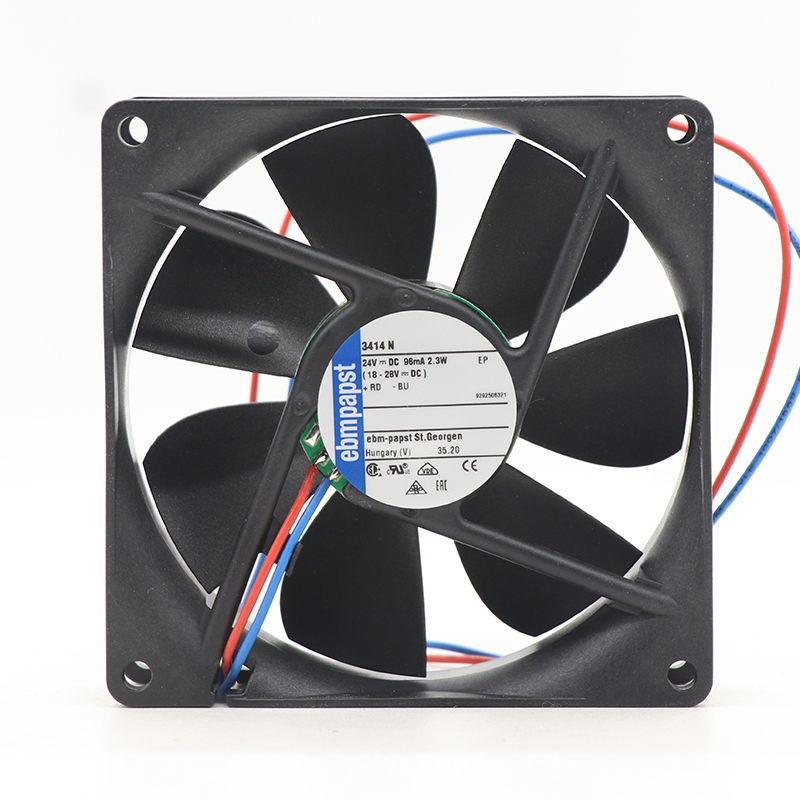

3414N | ebm-papst 24V 2.3W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 3414N | ebm-papst 24V 2.3W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 3414N is a high-performance dc axial fan engineered for control cabinets and enclosures. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 3414N | ebm-papst 24V 2.3W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	929225
Max.Air Flow(m³/h)	82
Input Power(W)	2.3
Speed(rpm)	2700

Product Features

Compact Airflow

The ebmpapst 3414N is a compact DC axial cooling fan for control cabinets and enclosed electronics. Its space-saving format fits control cabinets, embedded electronics and automation assemblies that need a direct airflow path for continuous heat removal.

Key selection data includes a 24 V supply, and airflow up to 82 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. The datasheet identifies ball-bearing motor support for durable motor support. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

OEM buyers and automation engineers can consider the 3414N for space-conscious cooling. Confirm airflow demand, wiring, mounting and temperature limits before design-in. Proper installation supports stable thermal control and long fan life.

Application Industry

Cabinet Ventilation

3414N Supports continuous air exchange in control cabinets, helping manage localized heat around drives, controllers and power devices.

Frequently Asked Questions

What are the dimensions of the 3414N?

The listed size is 92*92*25 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 3414N?

The product data lists airflow up to 82 m³/h, speed 2700 RPM; confirm the required operating point.
