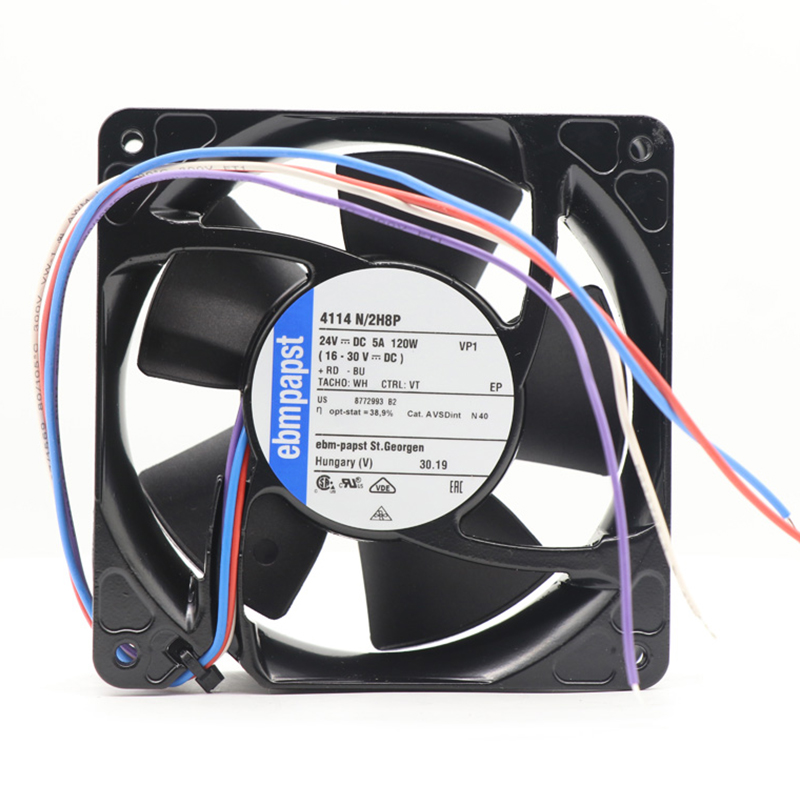

4114N/2H8P | ebm-papst 24V 120W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 4114N/2H8P | ebm-papst 24V 120W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 4114N/2H8P is a high-performance dc axial fan engineered for power supplies and power modules. It provides reliable airflow and efficient thermal management for demanding equipment.

Datasheet:: 4114N/2H8P | ebm-papst 24V 120W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911938
Max.Air Flow(m³/h)	570
Max.Pressure(Pa)	1250
Input Power(W)	120
Speed(rpm)	11000
Noise(db)	78

Product Features

High Static Cooling

Designed as a compact DC axial cooling fan, the ebmpapst 4114N/2H8P supports thermal management in power supplies and power modules. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 24 V supply, airflow up to 570 m³/h, and maximum pressure of 1250 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. Its integrated frame, impeller and motor support stable ventilation. Listed noise is 78 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Power Module Cooling

4114N/2H8P Delivers focused ventilation for power supplies and power modules used in compact electronic and automation assemblies.

Frequently Asked Questions

How should the 4114N/2H8P be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.

What is the rated voltage of the ebmpapst 4114N/2H8P?

The product data lists a rated voltage of 24 V. Match the supply before wiring.

What are the dimensions of the 4114N/2H8P?

The listed size is 119*119*38 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 4114N/2H8P?

The product data lists airflow up to 570 m³/h, speed 11000 RPM, pressure up to 1250 Pa; confirm the required operating point.
