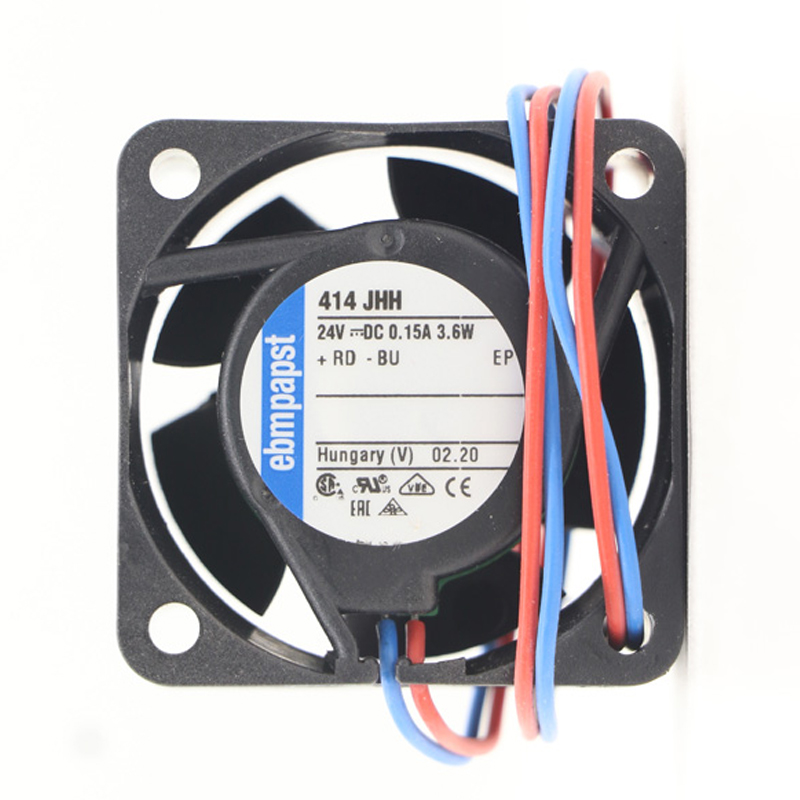

414JHH ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 414JHH | ebm-papst 24V 3.6W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 414JHH is a high-performance dc axial fan engineered for variable-frequency drives. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 414JHH | ebm-papst 24V 3.6W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404025
Max.Air Flow(m³/h)	24
Input Power(W)	3.6
Speed(rpm)	13000

Product Features

Compact Airflow

The ebmpapst 414JHH is a compact DC axial cooling fan for variable-frequency drives. Its space-saving format fits control cabinets, embedded electronics and automation assemblies that need a direct airflow path for continuous heat removal.

Key selection data includes a 24 V supply, and airflow up to 24 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. Its integrated frame, impeller and motor support stable ventilation. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The 414JHH suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

Application Industry

Drive System Cooling

414JHH Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Product Insights

Other Series Comparison — 414JHH vs Variants

How the 414JHH compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	5 m³/h	2 m³/h	130 m³/h	285 m³/h
Power	0.7 W	0.2 W	6.5 W	50 W
Noise	— dB	5 dB	— dB	— dB
Size	25258 mm	25258 mm	929238 mm	929238 mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 414JHH Other Fan

Condenser Cooling: The 414JHH axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Where can the 414JHH be used?

It is a compact DC axial fan listed for automation cooling and ventilation applications.

Is the 414JHH listed as RoHS compliant?

Yes. The workbook lists RoHS Compliant; request the exact-model document if formal confirmation is required.
