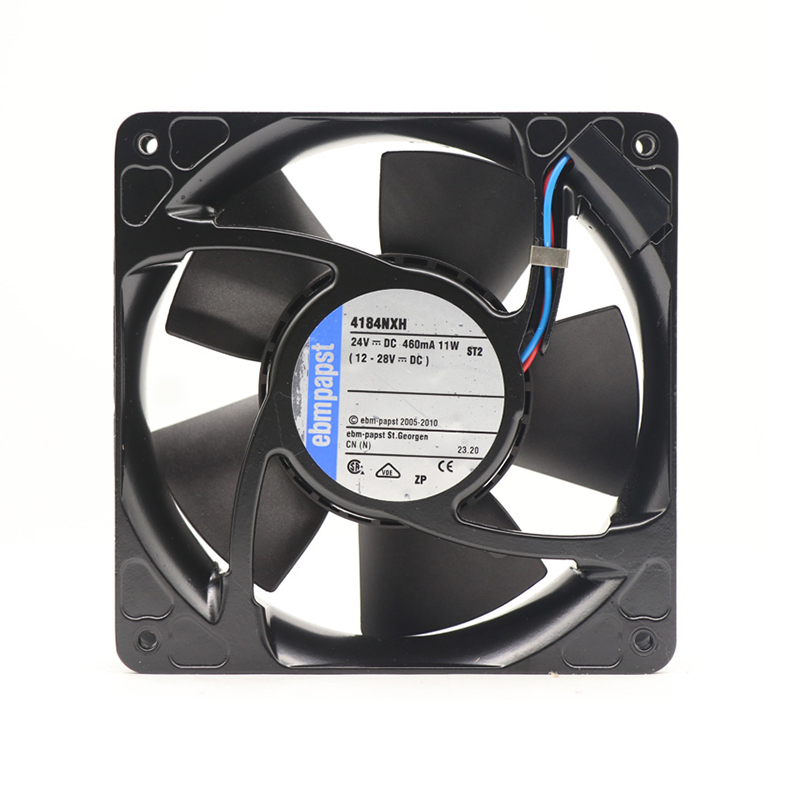

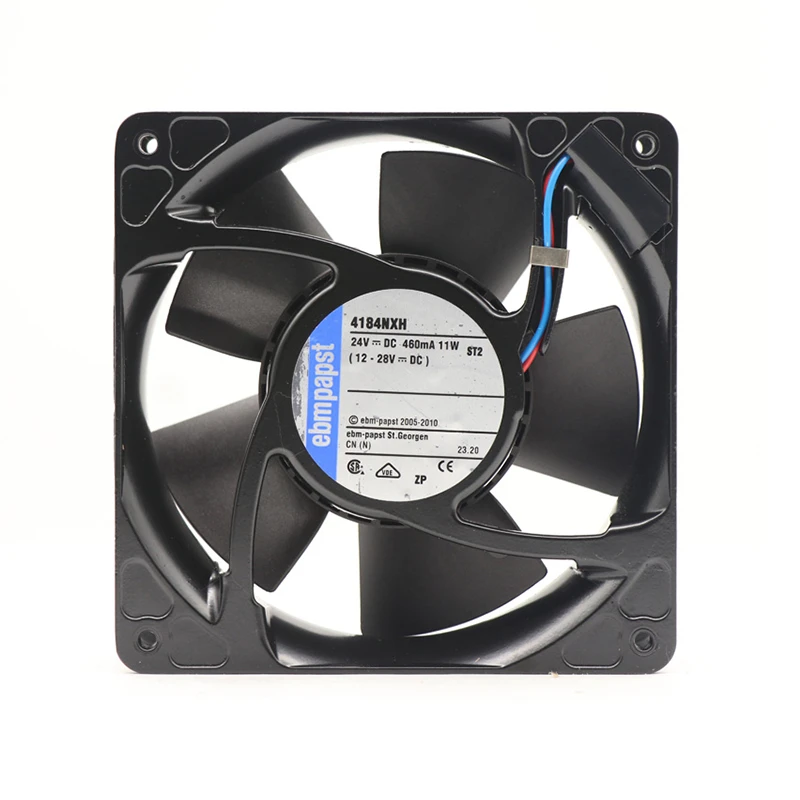

4184NXH ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 4184NXH | ebm-papst 24V 11W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 4184NXH is a high-performance dc axial fan engineered for control cabinets and enclosures. It provides reliable airflow and efficient thermal management for demanding equipment.

Datasheet:: 4184NXH | ebm-papst 24V 11W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911938
Max.Air Flow(m³/h)	237
Max.Pressure(Pa)	160
Input Power(W)	11
Speed(rpm)	4400
Noise(db)	57

Product Features

High Airflow Cooling

The ebmpapst 4184NXH is a compact DC axial cooling fan intended for control cabinets and enclosed electronics, equipment enclosures. It integrates into equipment enclosures and automation modules where localized heat loads require stable air exchange in limited space.

Key selection data includes a 24 V supply, airflow up to 237 m³/h, and maximum pressure of 160 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support and an aluminum housing for durable motor support. Listed noise is 57 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The 4184NXH suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

Application Industry

Cabinet Ventilation

4184NXH Supports continuous air exchange in control cabinets, helping manage localized heat around drives, controllers and power devices.

Enclosure Cooling

4184NXH Provides compact forced-air cooling for equipment enclosures where internal electronics require a defined ventilation path.

Product Insights

Other Series Comparison — 4184NXH vs Variants

How the 4184NXH compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	5 m³/h	2 m³/h	130 m³/h	285 m³/h
Power	0.7 W	0.2 W	6.5 W	50 W
Noise	— dB	5 dB	— dB	— dB
Size	25258 mm	25258 mm	929238 mm	929238 mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 4184NXH Other Fan

Condenser Cooling: The 4184NXH axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What are the dimensions of the 4184NXH?

The listed size is 119*119*38 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 4184NXH?

The product data lists airflow up to 237 m³/h, speed 4400 RPM, pressure up to 160 Pa; confirm the required operating point.

What power or noise data is available for the 4184NXH?

The listed values are input power 11 W, noise 57 dB. Use the exact model data for selection.
