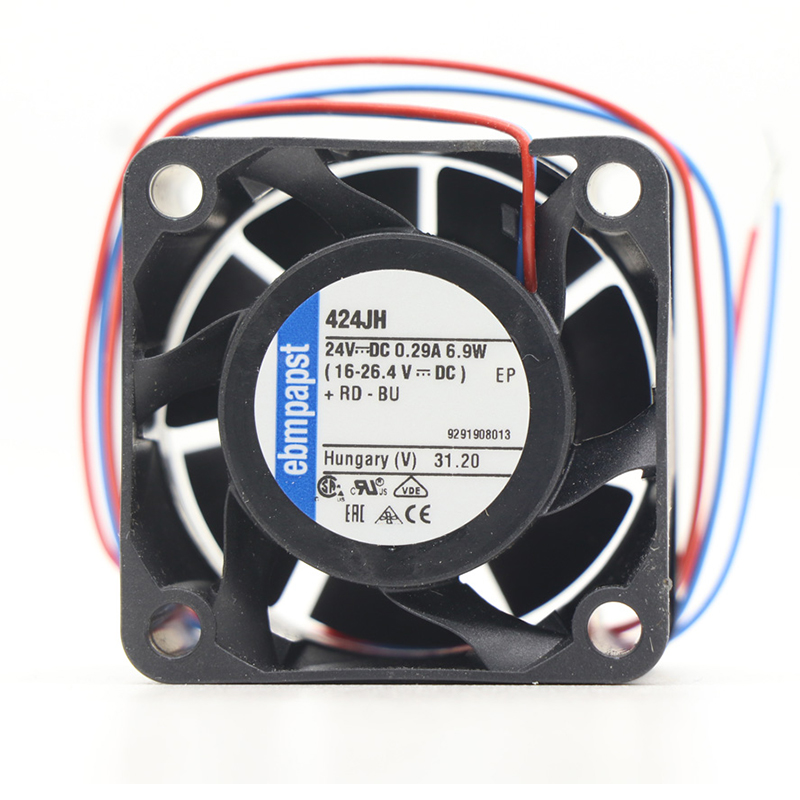

424JH | ebm-papst 24V 6.9W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 424JH | ebm-papst 24V 6.9W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 424JH is a high-performance dc axial fan engineered for control cabinets. It delivers reliable airflow, efficient cooling and dependable operation in compact equipment.

Datasheet:: 424JH | ebm-papst 24V 6.9W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404028
Max.Air Flow(m³/h)	38
Input Power(W)	6.9
Speed(rpm)	17250

Product Features

Compact Airflow

The ebmpapst 424JH is a compact DC axial cooling fan for control cabinets and enclosed electronics. Its space-saving format fits control cabinets, embedded electronics and automation assemblies that need a direct airflow path for continuous heat removal.

Key selection data includes a 24 V supply, airflow up to 38 m³/h,. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support for durable motor support. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Cabinet Ventilation

424JH Supports continuous air exchange in control cabinets, helping manage localized heat around drives, controllers and power devices.

Frequently Asked Questions

What power or noise data is available for the 424JH?

The listed values are input power 6.9 W. Use the exact model data for selection.

Is the 424JH compatible with my equipment?

Compare 24 V, 40*40*28 mm, airflow demand and connection details with your equipment.

Where can the 424JH be used?

It is a compact DC axial fan listed for automation cooling and ventilation applications.
