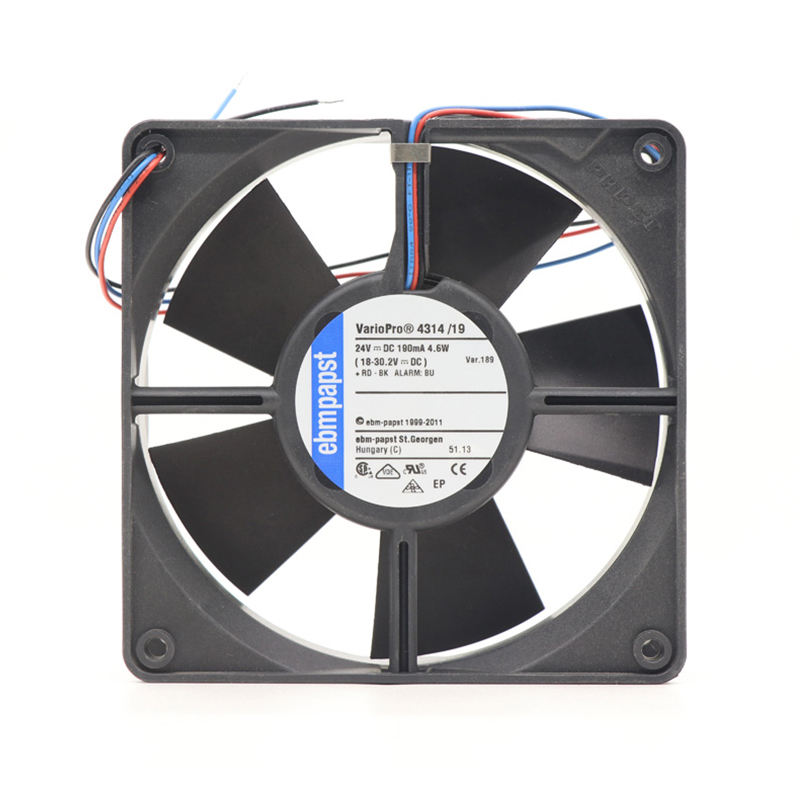

4314/19-189 ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 4314/19-189 | ebm-papst 24V 4.6W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 4314/19-189 is a high-performance dc axial fan engineered for rail transportation equipment. It provides reliable airflow and efficient thermal management for demanding equipment.

Datasheet:: 4314/19-189 | ebm-papst 24V 4.6W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911932
Max.Air Flow(m³/h)	170
Max.Pressure(Pa)	78
Input Power(W)	4.6
Noise(db)	45

Product Features

Compact Airflow

Designed as a compact DC axial cooling fan, the ebmpapst 4314/19-189 supports thermal management in industrial automation and electronic equipment. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 24 V supply, airflow up to 170 m³/h, and maximum pressure of 78 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support for durable motor support. Listed noise is 45 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The 4314/19-189 suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

Application Industry

Automation Cooling

4314/19-189 Supports reliable heat removal in automation controllers, machine electronics and compact industrial control equipment.

Frequently Asked Questions

How should the 4314/19-189 be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.

What is the rated voltage of the ebmpapst 4314/19-189?

The product data lists a rated voltage of 24 V. Match the supply before wiring.

What are the dimensions of the 4314/19-189?

The listed size is 119*119*32 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 4314/19-189?

The product data lists airflow up to 170 m³/h, pressure up to 78 Pa; confirm the required operating point.
