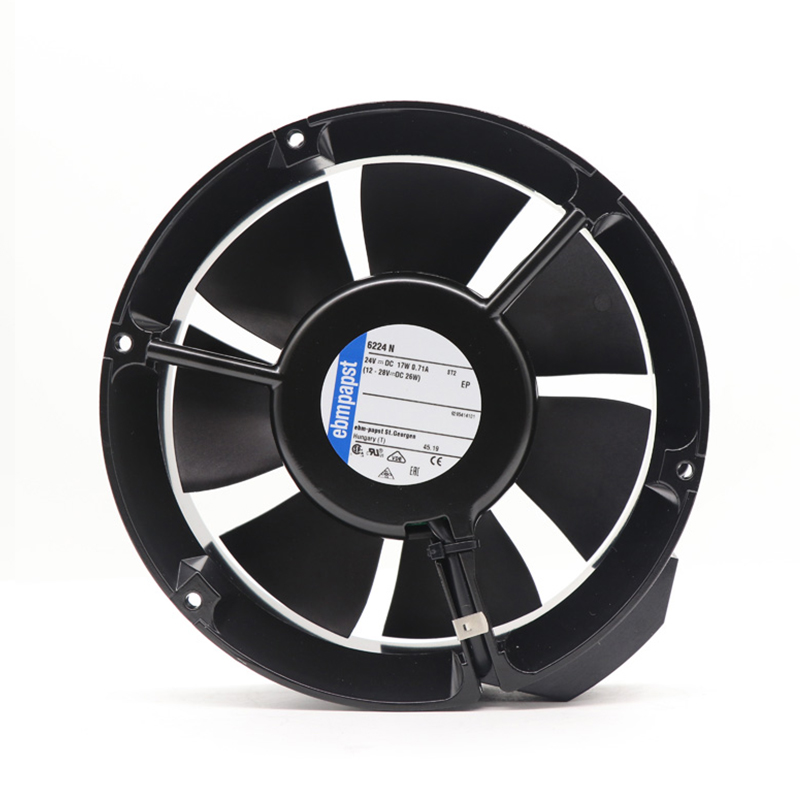

6224N ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 6224N | ebm-papst 24V 17W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 6224N is a high-performance dc axial fan engineered for variable-frequency drives. It delivers reliable airflow, efficient cooling and dependable operation in compact equipment.

Datasheet:: 6224N | ebm-papst 24V 17W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	172φ*51
Max.Air Flow(m³/h)	390
Input Power(W)	17
Speed(rpm)	3400

Product Features

High Airflow Cooling

The ebmpapst 6224N is a compact DC axial cooling fan for variable-frequency drives, control cabinets and enclosed electronics. Its space-saving format fits control cabinets, embedded electronics and automation assemblies that need a direct airflow path for continuous heat removal.

Key selection data includes a 24 V supply, and airflow up to 390 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. The datasheet identifies ball-bearing motor support for durable motor support. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Drive System Cooling

6224N Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Cabinet Ventilation

6224N Supports continuous air exchange in control cabinets, helping manage localized heat around drives, controllers and power devices.

Product Insights

Other Series Comparison — 6224N vs Variants

How the 6224N compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	5 m³/h	2 m³/h	130 m³/h	285 m³/h
Power	0.7 W	0.2 W	6.5 W	50 W
Noise	— dB	5 dB	— dB	— dB
Size	25258 mm	25258 mm	929238 mm	929238 mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 6224N Other Fan

Condenser Cooling: The 6224N axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What performance is listed for the 6224N?

The product data lists airflow up to 390 m³/h, speed 3400 RPM; confirm the required operating point.

What power or noise data is available for the 6224N?

The listed values are input power 17 W. Use the exact model data for selection.

Is the 6224N compatible with my equipment?

Compare 24 V, 172φ*51 mm, airflow demand and connection details with your equipment.
