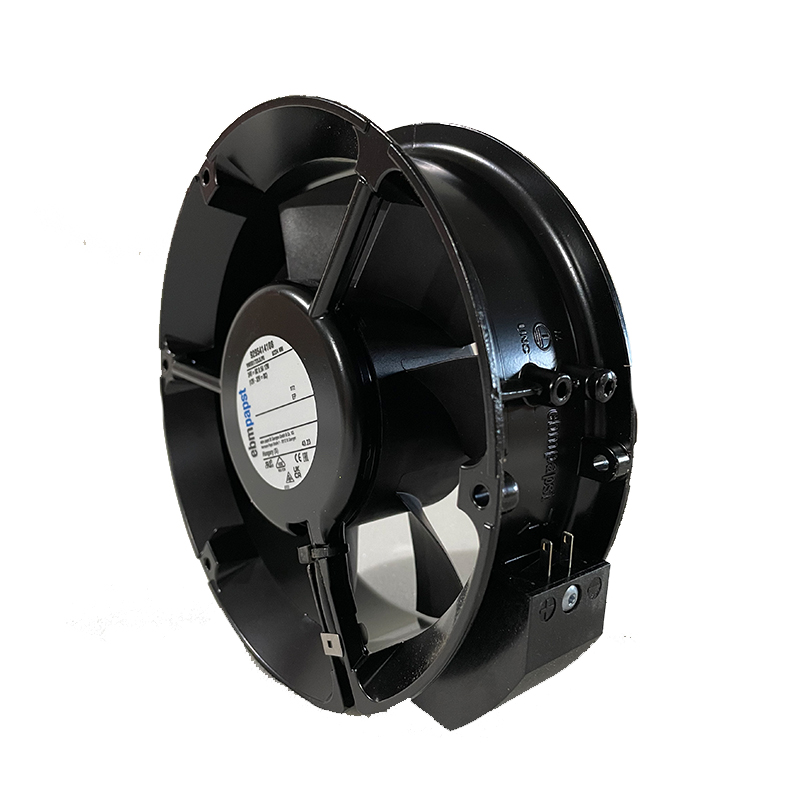

6224NM | ebm-papst 24V 11.5W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 6224NM | ebm-papst 24V 11.5W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 6224NM is a high-performance dc axial fan engineered for variable-frequency drives. It delivers reliable airflow, efficient cooling and dependable operation in compact equipment.

Datasheet:: 6224NM | ebm-papst 24V 11.5W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	φ172*51
Max.Air Flow(m³/h)	330
Max.Pressure(Pa)	138
Input Power(W)	11.5
Speed(rpm)	2850
Noise(db)	50

Product Features

High Airflow Cooling

Designed as a compact DC axial cooling fan, the ebmpapst 6224NM supports thermal management in industrial automation and electronic equipment. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 24 V supply, airflow up to 330 m³/h, and maximum pressure of 138 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support for durable motor support. Listed noise is 50 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

OEM buyers and automation engineers can consider the 6224NM for space-conscious cooling. Confirm airflow demand, wiring, mounting and temperature limits before design-in. Proper installation supports stable thermal control and long fan life.

Application Industry

Automation Cooling

6224NM Supports reliable heat removal in automation controllers, machine electronics and compact industrial control equipment.

Frequently Asked Questions

What is the rated voltage of the ebmpapst 6224NM?

The product data lists a rated voltage of 24 V. Match the supply before wiring.

What are the dimensions of the 6224NM?

The listed size is φ172*51 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 6224NM?

The product data lists airflow up to 330 m³/h, speed 2850 RPM, pressure up to 138 Pa; confirm the required operating point.

Related Products

G2E140-PI51-42 | ebm-papst 230V 225W AC Centrifugal Blower for Inverter Cooling

Designed around inverter cooling, G2E140-PI51-42 uses a 230 V AC centrifugal blower platform. For selection, its most distinctive listed attribute is thermal-overload protection with 460 Pa pressure.

G2D160-AF02-09 | ebm-papst 230V 305W AC Centrifugal Blower for Motor Cooling

Designed around motor cooling, G2D160-AF02-09 uses a 230 V AC centrifugal blower platform. The model's defining specification is IP44 protection with 2,300 rpm operation. It supports exact-model comparison for OEM sourcing.

G4D200-CD04-28 | ebm-papst 400V 210W AC Centrifugal Blower for Power Electronics

For power electronics, G4D200-CD04-28 provides a 400 V AC centrifugal blower configuration. The model's defining specification is IP44 protection with 1,020 m³/h airflow. It supports exact-model comparison for OEM sourcing.

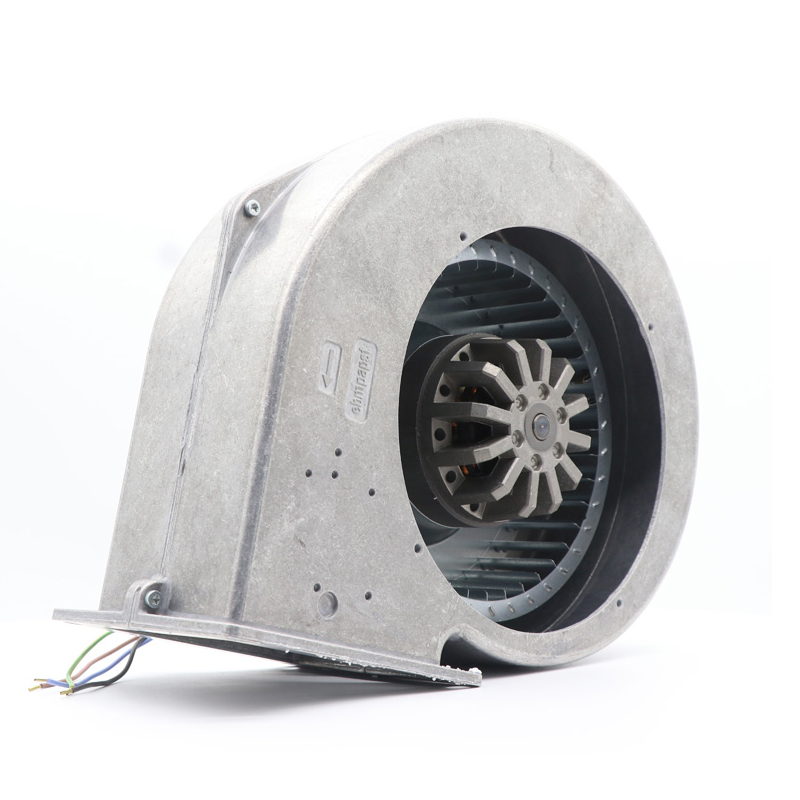

G2D180-BD18-11 | ebm-papst 400V 305W AC Centrifugal Blower for CNC Machines
