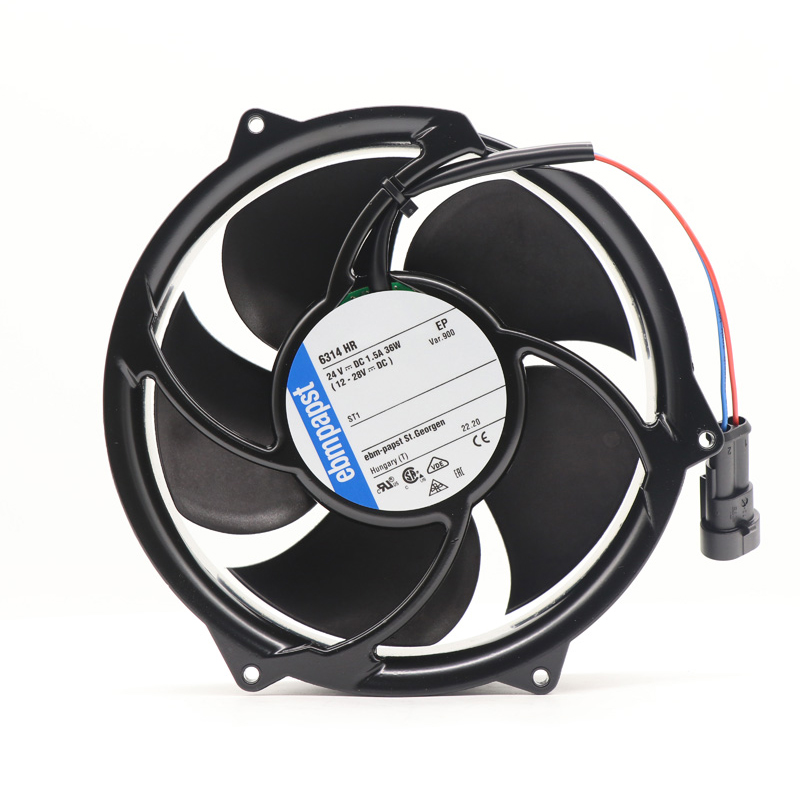

6314HR ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 6314HR | ebm-papst 24V 36W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 6314HR is a high-performance dc axial fan engineered for variable-frequency drives. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 6314HR | ebm-papst 24V 36W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	φ17215051
Max.Air Flow(m³/h)	550
Input Power(W)	36
Speed(rpm)	5300

Product Features

High Airflow Cooling

The ebmpapst 6314HR is a compact DC axial cooling fan for variable-frequency drives. Its space-saving format fits control cabinets, embedded electronics and automation assemblies that need a direct airflow path for continuous heat removal.

Key selection data includes a 24 V supply, airflow up to 550 m³/h, The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. Its integrated frame, impeller and motor support stable ventilation. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Drive System Cooling

6314HR Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Product Insights

Other Series Comparison — 6314HR vs Variants

How the 6314HR compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	5 m³/h	2 m³/h	130 m³/h	285 m³/h
Power	0.7 W	0.2 W	6.5 W	50 W
Noise	— dB	5 dB	— dB	— dB
Size	25258 mm	25258 mm	929238 mm	929238 mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 6314HR Other Fan

Condenser Cooling: The 6314HR axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What are the dimensions of the 6314HR?

The listed size is φ172*150*51 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 6314HR?

The product data lists airflow up to 550 m³/h, speed 5300 RPM, pressure up to 0 Pa; confirm the required operating point.
