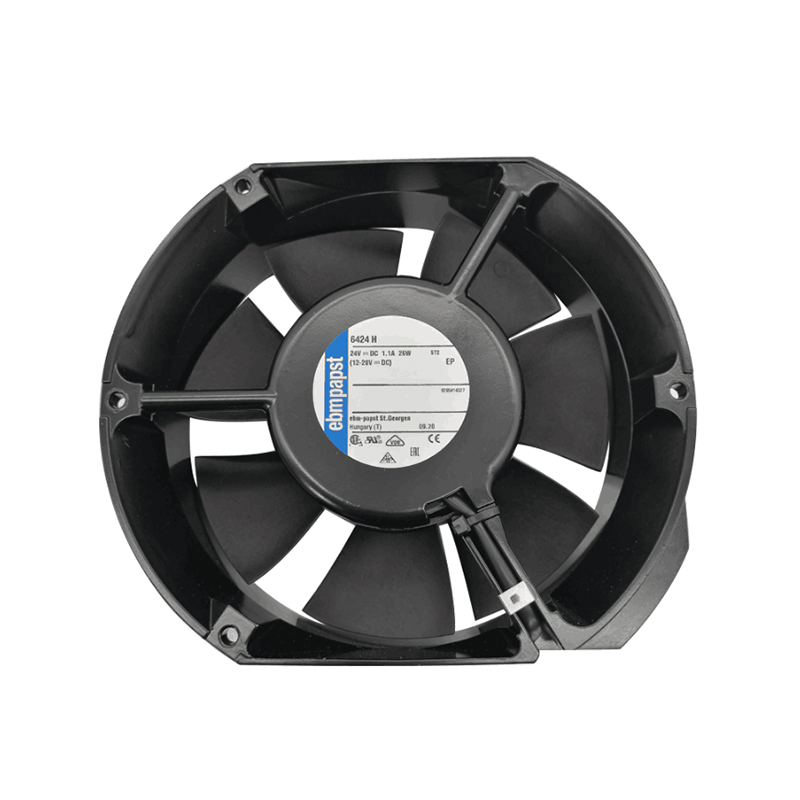

6424H ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 6424H | ebm-papst 24V 26W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 6424H is a high-performance dc axial fan engineered for variable-frequency drives. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 6424H | ebm-papst 24V 26W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	172φ*51
Max.Air Flow(m³/h)	480
Max.Pressure(Pa)	174
Input Power(W)	26
Speed(rpm)	4000
Noise(db)	63

Product Features

High Airflow Cooling

Designed as a compact DC axial cooling fan, the ebmpapst 6424H supports thermal management in variable-frequency drives. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 24 V supply, airflow up to 480 m³/h, and maximum pressure of 174 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support and an aluminum housing for durable motor support. Listed noise is 63 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The 6424H suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

Application Industry

Drive System Cooling

6424H Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Frequently Asked Questions

What are the dimensions of the 6424H?

The listed size is 172φ*51 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 6424H?

The product data lists airflow up to 480 m³/h, speed 4000 RPM, pressure up to 174 Pa; confirm the required operating point.

What power or noise data is available for the 6424H?

The listed values are input power 26 W, noise 63 dB. Use the exact model data for selection.

Is the 6424H compatible with my equipment?

Compare 24 V, 172φ*51 mm, airflow demand and connection details with your equipment.
