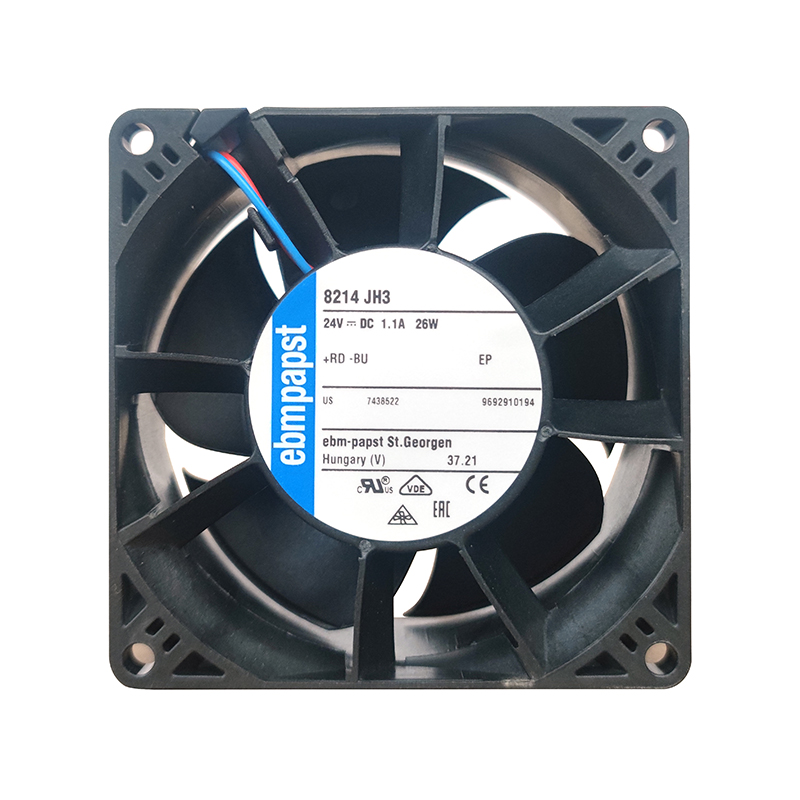

8214JH3 | ebm-papst 24V 25W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 8214JH3 | ebm-papst 24V 25W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 8214JH3 is a high-performance dc axial fan engineered for variable-frequency drives. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 8214JH3 | ebm-papst 24V 25W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	808038
Max.Air Flow(m³/h)	190
Max.Pressure(Pa)	480
Input Power(W)	25
Speed(rpm)	12000
Noise(db)	66

Product Features

High Static Cooling

The ebmpapst 8214JH3 is a compact DC axial cooling fan for variable-frequency drives. Its space-saving format fits control cabinets, embedded electronics and automation assemblies that need a direct airflow path for continuous heat removal.

Key selection data includes a 24 V supply, airflow up to 190 m³/h, and maximum pressure of 480 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support and fiberglass-reinforced plastic components for durable motor support. Listed noise is 66 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

OEM buyers and automation engineers can consider the 8214JH3 for space-conscious cooling. Confirm airflow demand, wiring, mounting and temperature limits before design-in. Proper installation supports stable thermal control and long fan life.

Application Industry

Drive System Cooling

8214JH3 Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Frequently Asked Questions

What power or noise data is available for the 8214JH3?

The listed values are input power 25 W, noise 66 dB. Use the exact model data for selection.

Is the 8214JH3 compatible with my equipment?

Compare 24 V, 80*80*38 mm, airflow demand and connection details with your equipment.

Where can the 8214JH3 be used?

It is a compact DC axial fan listed for automation cooling and ventilation applications.
