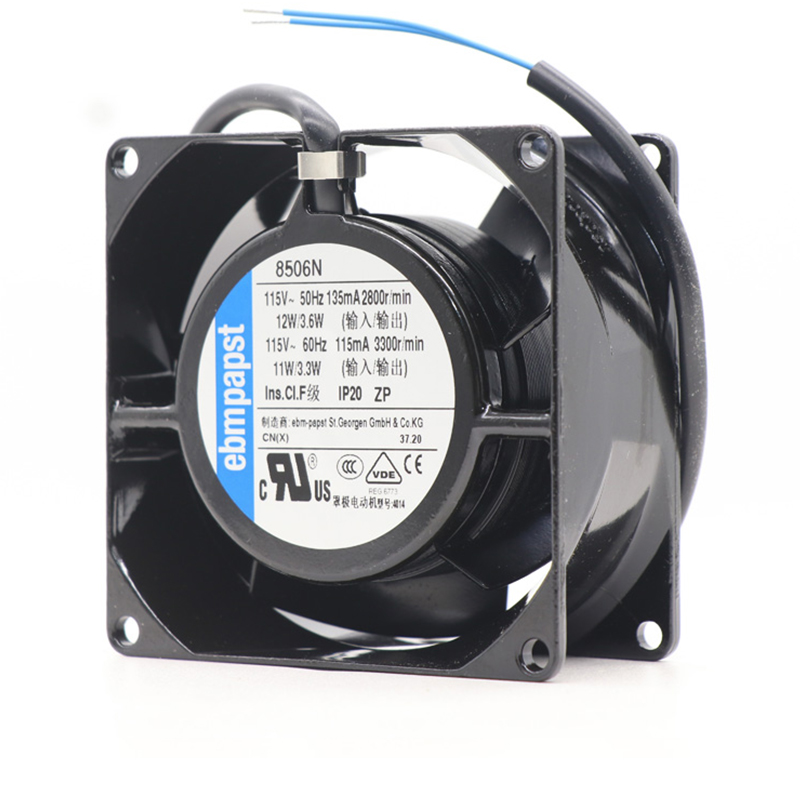

8506N | ebm-papst 115V 12W AC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 8506N | ebm-papst 115V 12W AC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 8506N is a high-performance ac axial fan engineered for control cabinets and enclosures. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 8506N | ebm-papst 115V 12W AC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	115
Size(mm)	808038
Max.Air Flow(m³/h)	61
Max.Pressure(Pa)	70
Input Power(W)	12
Speed(rpm)	2800
Noise(db)	35

Product Features

Low Noise Cooling

The ebmpapst 8506N is a compact axial cooling fan intended for control cabinets and enclosed electronics, equipment enclosures. It integrates into equipment enclosures and automation modules where localized heat loads require stable air exchange in limited space.

Key selection data includes a 115 V supply, airflow up to 61 m³/h, and maximum pressure of 70 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support and an aluminum housing for durable motor support. Listed noise is 35 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

OEM buyers and automation engineers can consider the 8506N for space-conscious cooling. Confirm airflow demand, wiring, mounting and temperature limits before design-in. Proper installation supports stable thermal control and long fan life.

Application Industry

Cabinet Ventilation

8506N Supports continuous air exchange in control cabinets, helping manage localized heat around drives, controllers and power devices.

Enclosure Cooling

8506N Provides compact forced-air cooling for equipment enclosures where internal electronics require a defined ventilation path.

Frequently Asked Questions

What performance is listed for the 8506N?

The product data lists airflow up to 61 m³/h, speed 2800 RPM, pressure up to 70 Pa; confirm the required operating point.

What power or noise data is available for the 8506N?

The listed values are input power 12 W, noise 35 dB. Use the exact model data for selection.

Is the 8506N compatible with my equipment?

Compare 115 V, 80*80*38 mm, airflow demand and connection details with your equipment.
