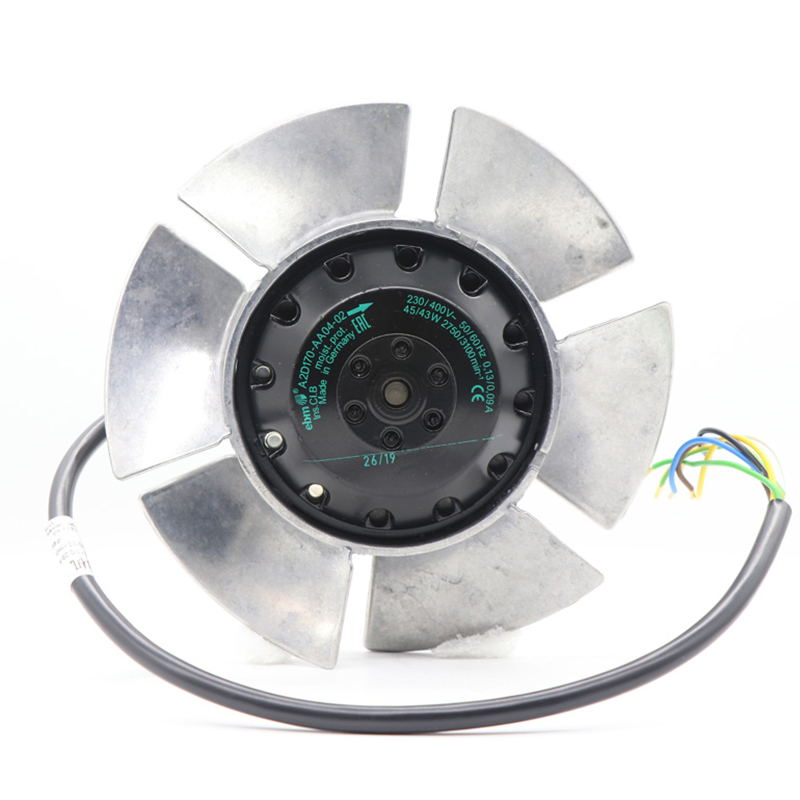

A2D170-AA04-02 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: A2D170-AA04-02 | ebm-papst 400V 45W AC Axial Fan for Motor Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: For industrial motor cooling, the ebm-papst A2D170-AA04-02 provides a 400 V AC axial fan solution. Performance data of 535 m³/h airflow, 80 Pa pressure, 2750 RPM supports practical selection for continuous ventilation, component cooling and replacement planning.

Datasheet:: A2D170-AA04-02 | ebm-papst 400V 45W AC Axial Fan for Motor Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	400
Size(mm)	170
Max.Air Flow(m³/h)	535
Max.Pressure(Pa)	80
Input Power(W)	45
Speed(rpm)	2750

Product Features

Reliable AC Cooling

The ebm-papst A2D170-AA04-02 is an AC axial fan for industrial equipment cooling, delivering directed airflow for machinery, motor systems and ventilation assemblies.

Data includes 400 V operation, airflow up to 535 m³/h and pressure up to 80 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support for durable motor support. Installed noise depends on the duty point and airflow path. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the A2D170-AA04-02 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

Motor Cooling

The A2D170-AA04-02 ebm-papst fan is used in industrial motor systems to remove accumulated heat around the motor body, supporting stable duty cycles and reducing thermal stress on nearby components.

Product Insights

A2D Series Comparison — A2D170-AA04-02 vs Variants

How the A2D170-AA04-02 compares to nearby A2D series variants:

Model	A2D160-AB22-06	A2D170-AA04-02	A2D200-AA02-02	A2D200-AH18-01
Air Flow	155 m³/h	535 m³/h	840 m³/h	—
Power	43 W	45 W	53 W	70 W
Noise	— dB	— dB	67 dB	— dB
Size	160 mm	170 mm	200 mm	200 mm

All A2D series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — A2D170-AA04-02 AC Axial

Condenser Cooling: The A2D170-AA04-02 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Does the A2D170-AA04-02 have environmental compliance information?

The product workbook lists RoHS Compliant. Request the exact-model compliance document when formal evidence is required.

How does the A2D170-AA04-02 compare with a general-purpose fan?

Its documented 535 m³/h airflow and 80 Pa pressure and 2750 RPM supports model-specific selection instead of relying on a generic fan rating.
