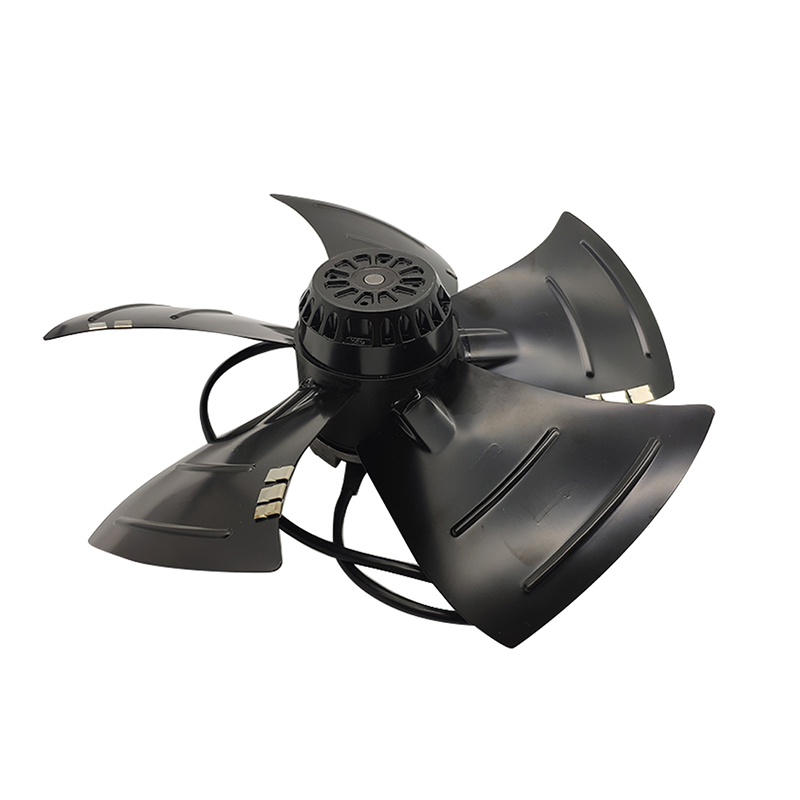

A4D500-AM03-01 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: A4D500-AM03-01 | ebm-papst 460V 1060W AC Axial Fan for Refrigeration

Type:: Axial Fans

Industry:: Refrigeration Equipment

Description:: For refrigeration and cooling equipment, the ebm-papst A4D500-AM03-01 provides a 460 V AC axial fan solution. Performance data of 10920 m³/h airflow, 138 Pa pressure, 1640 RPM supports practical selection for continuous ventilation, component cooling and replacement planning.

Datasheet:: A4D500-AM03-01 | ebm-papst 460V 1060W AC Axial Fan for Refrigeration Datasheet (Pdf)

Product Features

Rated Voltage(V)	460
Size(mm)	500
Max.Air Flow(m³/h)	10920
Max.Pressure(Pa)	138
Input Power(W)	1060
Speed(rpm)	1640
Noise(db)	68

Product Features

High Airflow Cooling

The ebm-papst A4D500-AM03-01 is an AC axial fan for industrial equipment cooling, delivering directed airflow for machinery, motor systems and ventilation assemblies.

Data includes 460 V operation, airflow up to 10920 m³/h and pressure up to 138 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support for durable motor support. Listed noise is 68 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the A4D500-AM03-01 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

Refrigeration Cooling

The A4D500-AM03-01 ebm-papst fan is suitable for refrigeration and cooling equipment where forced airflow supports heat rejection, component protection and stable operation under recurring thermal loads.

Product Insights

A4D Series Comparison — A4D500-AM03-01 vs Variants

How the A4D500-AM03-01 compares to nearby A4D series variants:

Model	A4D500-AJ03-01	A4D500-AM03-01	A4D500-AM03-02	A4D560-AM03-01
Air Flow	9030 m³/h	10920 m³/h	10920 m³/h	12600 m³/h
Power	710 W	1060 W	1060 W	1160 W
Noise	64 dB	68 dB	68 dB	74 dB
Size	500 mm	500 mm	500 mm	560 mm

All A4D series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — A4D500-AM03-01 AC Axial

Condenser Cooling: The A4D500-AM03-01 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Why choose the A4D500-AM03-01?

It combines 10920 m³/h airflow and 138 Pa pressure and 1640 RPM in an AC axial-fan format for targeted equipment cooling.

What equipment is the A4D500-AM03-01 suitable for?

It is suited to 制冷; confirm airflow, space and electrical requirements before selection.

How can the A4D500-AM03-01 support lower ownership cost?

Correct sizing and unobstructed airflow can reduce avoidable thermal stress; verify performance at the real operating point before purchase.
