A4D560-AM03-01 ebm-papst Axial Fan

Brand :: ebmpapst

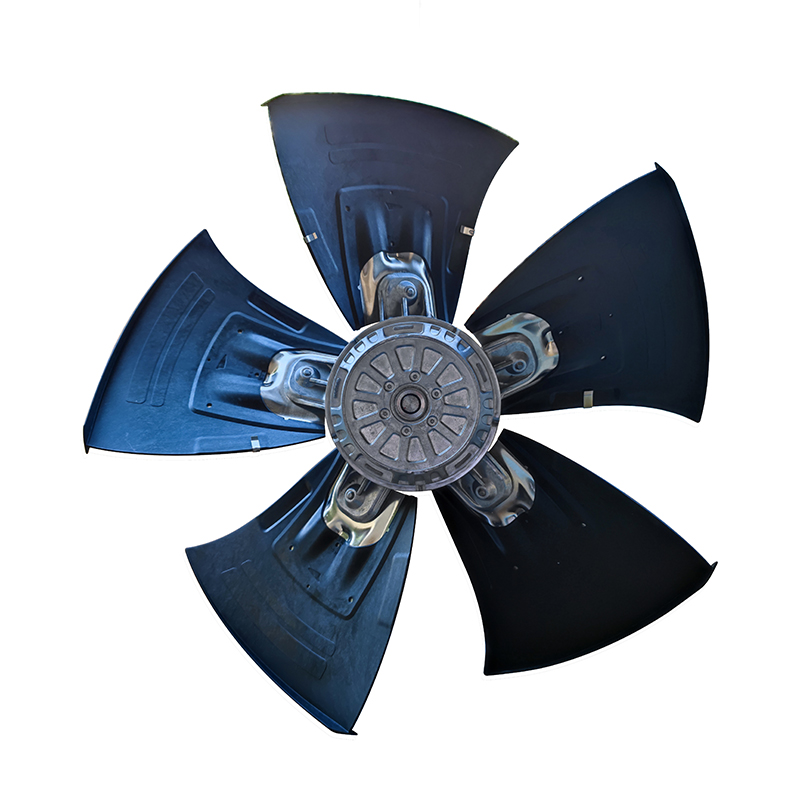

Model:: A4D560-AM03-01 | ebm-papst 400V 1160W AC Axial Fan for Refrigeration

Type:: Axial Fans

Industry:: Refrigeration Equipment

Description:: Built for refrigeration and cooling equipment, the ebm-papst A4D560-AM03-01 is a 400 V AC axial fan. Its combination of 12600 m³/h airflow, 140 Pa pressure, 1295 RPM is intended to maintain controlled airflow and reduce thermal stress in demanding installations.

Datasheet:: A4D560-AM03-01 | ebm-papst 400V 1160W AC Axial Fan for Refrigeration Datasheet (Pdf)

Product Features

Rated Voltage(V)	400
Size(mm)	560
Max.Air Flow(m³/h)	12600
Max.Pressure(Pa)	140
Input Power(W)	1160
Speed(rpm)	1295
Noise(db)	74

Product Features

High Airflow Cooling

The ebm-papst A4D560-AM03-01 is an AC axial fan for industrial equipment cooling, delivering directed airflow for machinery, motor systems and ventilation assemblies.

Data includes 400 V operation, airflow up to 12600 m³/h and pressure up to 140 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support for durable motor support. Listed noise is 74 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the A4D560-AM03-01 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

Refrigeration Cooling

The A4D560-AM03-01 ebm-papst fan is suitable for refrigeration and cooling equipment where forced airflow supports heat rejection, component protection and stable operation under recurring thermal loads.

Product Insights

A4D Series Comparison — A4D560-AM03-01 vs Variants

How the A4D560-AM03-01 compares to nearby A4D series variants:

Model	A4D500-AJ03-01	A4D500-AM03-01	A4D500-AM03-02	A4D560-AM03-01
Air Flow	9030 m³/h	10920 m³/h	10920 m³/h	12600 m³/h
Power	710 W	1060 W	1060 W	1160 W
Noise	64 dB	68 dB	68 dB	74 dB
Size	500 mm	500 mm	500 mm	560 mm

All A4D series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — A4D560-AM03-01 AC Axial

Condenser Cooling: The A4D560-AM03-01 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

How should the A4D560-AM03-01 be installed?

Mount it with the intended airflow direction, keep inlet and outlet clear, and follow the exact-model drawing and wiring data.

Is the A4D560-AM03-01 suitable for high-reliability cooling?

Assess the documented electrical, airflow and environmental limits against the system requirement; do not exceed the exact-model ratings.

How can the A4D560-AM03-01 support lower ownership cost?

Correct sizing and unobstructed airflow can reduce avoidable thermal stress; verify performance at the real operating point before purchase.

What is the rated voltage of the A4D560-AM03-01?

The listed rated voltage is 400 V. Match the power supply and wiring to the datasheet.
