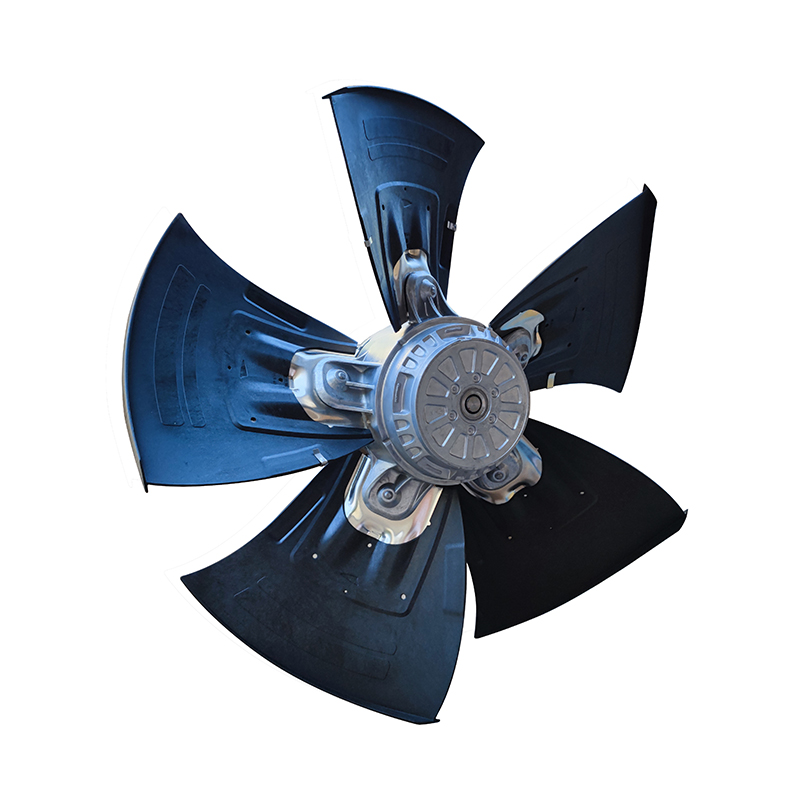

A4D560-AR03-03 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: A4D560-AR03-03 | ebm-papst 400V AC Axial Fan for Refrigeration

Type:: Axial Fans

Industry:: Refrigeration Equipment

Description:: The ebm-papst A4D560-AR03-03, a 400 V AC axial fan, is intended for refrigeration and cooling equipment. Listed performance includes 12000 m³/h airflow, 305 Pa pressure, giving designers a clear basis for checking airflow, mounting and electrical compatibility.

Datasheet:: A4D560-AR03-03 | ebm-papst 400V AC Axial Fan for Refrigeration Datasheet (Pdf)

Product Features

Rated Voltage(V)	400
Size(mm)	560
Max.Air Flow(m³/h)	12000
Max.Pressure(Pa)	305

Product Features

High Static Airflow

The ebm-papst A4D560-AR03-03 is an AC axial fan for industrial equipment cooling, delivering directed airflow for machinery, motor systems and ventilation assemblies.

Data includes 400 V operation, airflow up to 12000 m³/h and pressure up to 305 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support for durable motor support. Installed noise depends on the duty point and airflow path. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the A4D560-AR03-03 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

Refrigeration Cooling

The A4D560-AR03-03 ebm-papst fan is suitable for refrigeration and cooling equipment where forced airflow supports heat rejection, component protection and stable operation under recurring thermal loads.

Frequently Asked Questions

What equipment is the A4D560-AR03-03 suitable for?

It is suited to 制冷; confirm airflow, space and electrical requirements before selection.

Why choose the A4D560-AR03-03?

It combines 12000 m³/h airflow and 305 Pa pressure in an AC axial-fan format for targeted equipment cooling.

What is the rated voltage of the A4D560-AR03-03?

The listed rated voltage is 400 V. Match the power supply and wiring to the datasheet.
