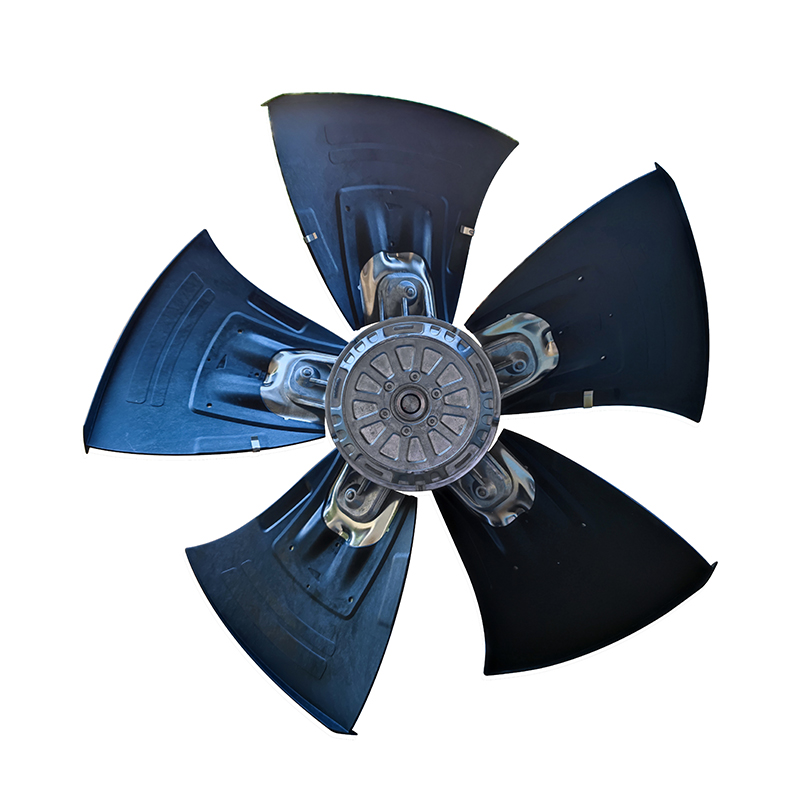

A4D630-AF03-03 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: A4D630-AF03-03 | ebm-papst 400V 2860W AC Axial Fan for Refrigeration

Type:: Axial Fans

Industry:: Refrigeration Equipment

Description:: The A4D630-AF03-03 from ebm-papst combines 400 V operation with an AC axial fan configuration for refrigeration and cooling equipment. Its documented 18830 m³/h airflow, 310 Pa pressure, 1715 RPM helps engineers compare the fan with the system resistance, installation space and cooling demand.

Datasheet:: A4D630-AF03-03 | ebm-papst 400V 2860W AC Axial Fan for Refrigeration Datasheet (Pdf)

Product Features

Rated Voltage(V)	400
Size(mm)	630
Max.Air Flow(m³/h)	18830
Max.Pressure(Pa)	310
Input Power(W)	2860
Speed(rpm)	1715
Noise(db)	86

Product Features

High Static Airflow

The ebm-papst A4D630-AF03-03 is an AC axial fan for industrial equipment cooling, delivering directed airflow for machinery, motor systems and ventilation assemblies.

Data includes 400 V operation, airflow up to 18830 m³/h and pressure up to 310 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support for durable motor support. Listed noise is 86 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the A4D630-AF03-03 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

Refrigeration Cooling

The A4D630-AF03-03 ebm-papst fan is suitable for refrigeration and cooling equipment where forced airflow supports heat rejection, component protection and stable operation under recurring thermal loads.

Product Insights

A4D Series Comparison — A4D630-AF03-03 vs Variants

How the A4D630-AF03-03 compares to nearby A4D series variants:

Model	A4D500-AJ03-01	A4D500-AM03-01	A4D500-AM03-02	A4D560-AM03-01
Air Flow	9030 m³/h	10920 m³/h	10920 m³/h	12600 m³/h
Power	710 W	1060 W	1060 W	1160 W
Noise	64 dB	68 dB	68 dB	74 dB
Size	500 mm	500 mm	500 mm	560 mm

All A4D series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — A4D630-AF03-03 AC Axial

Condenser Cooling: The A4D630-AF03-03 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Is the A4D630-AF03-03 suitable for high-reliability cooling?

Assess the documented electrical, airflow and environmental limits against the system requirement; do not exceed the exact-model ratings.

How should the A4D630-AF03-03 be installed?

Mount it with the intended airflow direction, keep inlet and outlet clear, and follow the exact-model drawing and wiring data.

What equipment is the A4D630-AF03-03 suitable for?

It is suited to 制冷; confirm airflow, space and electrical requirements before selection.
