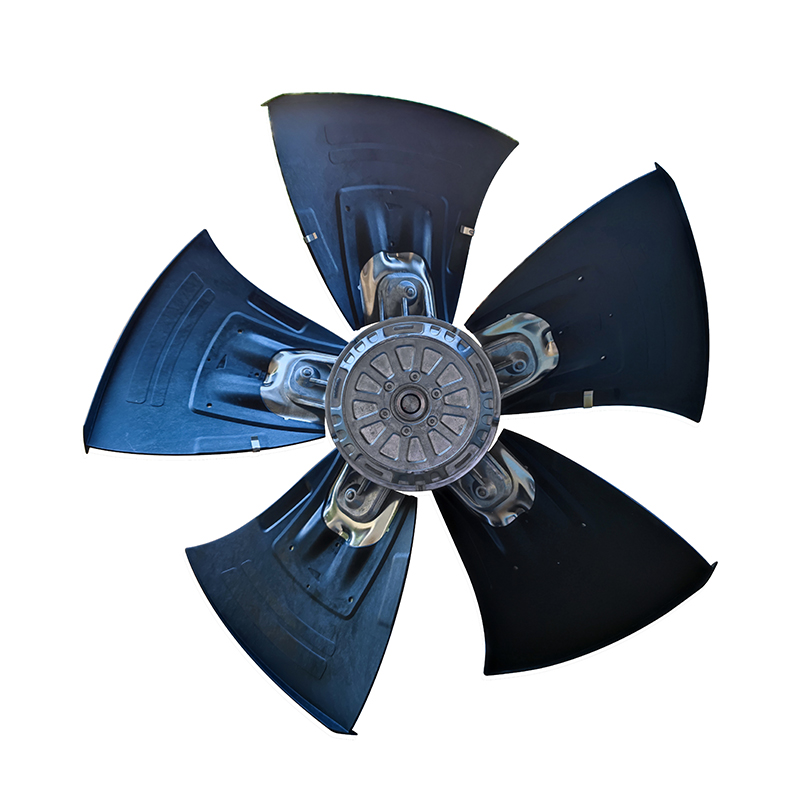

A4D630-AR01-01 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: A4D630-AR01-01 | ebm-papst 400V 1250W AC Axial Fan for Refrigeration

Type:: Axial Fans

Industry:: Refrigeration Equipment

Description:: For refrigeration and cooling equipment, the ebm-papst A4D630-AR01-01 provides a 400 V AC axial fan solution. Performance data of 13830 m³/h airflow, 150 Pa pressure, 1395 RPM supports practical selection for continuous ventilation, component cooling and replacement planning.

Datasheet:: A4D630-AR01-01 | ebm-papst 400V 1250W AC Axial Fan for Refrigeration Datasheet (Pdf)

Product Features

Rated Voltage(V)	400
Size(mm)	630
Max.Air Flow(m³/h)	13830
Max.Pressure(Pa)	150
Input Power(W)	1250
Speed(rpm)	1395
Noise(db)	79

Product Features

High Airflow Cooling

The ebm-papst A4D630-AR01-01 is an AC axial fan for industrial equipment cooling, delivering directed airflow for machinery, motor systems and ventilation assemblies.

Data includes 400 V operation, airflow up to 13830 m³/h and pressure up to 150 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support for durable motor support. Listed noise is 79 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the A4D630-AR01-01 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

Refrigeration Cooling

The A4D630-AR01-01 ebm-papst fan is suitable for refrigeration and cooling equipment where forced airflow supports heat rejection, component protection and stable operation under recurring thermal loads.

Product Insights

A4D Series Comparison — A4D630-AR01-01 vs Variants

How the A4D630-AR01-01 compares to nearby A4D series variants:

Model	A4D500-AJ03-01	A4D500-AM03-01	A4D500-AM03-02	A4D560-AM03-01
Air Flow	9030 m³/h	10920 m³/h	10920 m³/h	12600 m³/h
Power	710 W	1060 W	1060 W	1160 W
Noise	64 dB	68 dB	68 dB	74 dB
Size	500 mm	500 mm	500 mm	560 mm

All A4D series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — A4D630-AR01-01 AC Axial

Condenser Cooling: The A4D630-AR01-01 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Can the A4D630-AR01-01 run continuously?

Continuous-duty suitability depends on the specified operating point, temperature and installation. Verify these limits in the exact-model datasheet.

Why choose the A4D630-AR01-01?

It combines 13830 m³/h airflow and 150 Pa pressure and 1395 RPM in an AC axial-fan format for targeted equipment cooling.

Does the A4D630-AR01-01 have environmental compliance information?

The product workbook lists RoHS Compliant. Request the exact-model compliance document when formal evidence is required.
