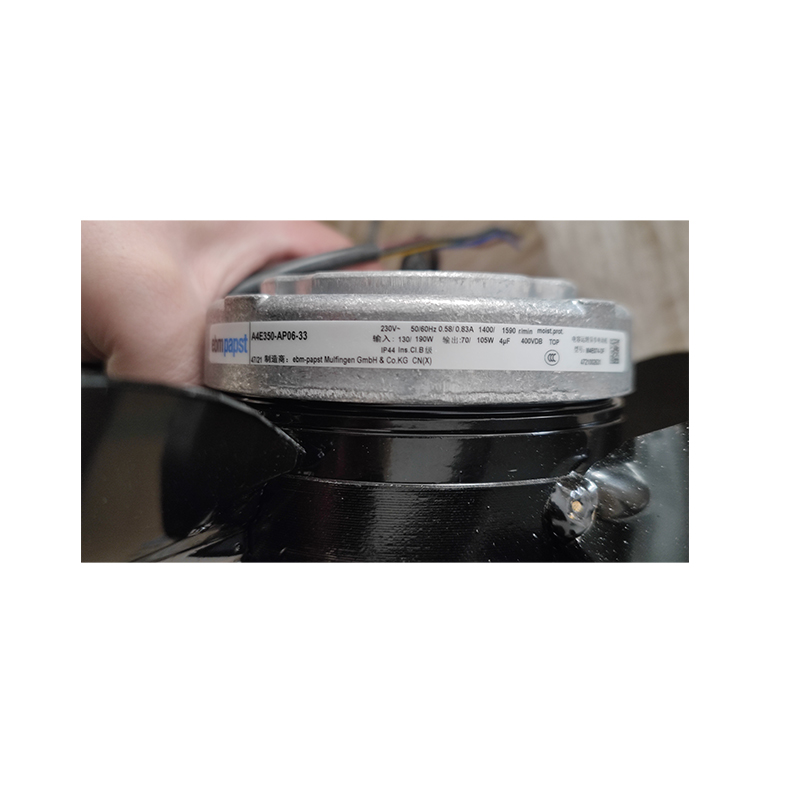

A4E350-AP06-33 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: A4E350-AP06-33 | ebm-papst 230V 130W AC Axial Fan for EV Charging/Refrigeration

Type:: Axial Fans

Industry:: New Energy

Description:: ebm-papst A4E350-AP06-33 is specified as an AC axial fan using a 230 V supply, suited to charging stations and refrigeration equipment. The available rating of 3110 m³/h airflow, 90 Pa pressure, 1400 RPM enables model-specific airflow matching in OEM equipment and maintenance replacements.

Datasheet:: A4E350-AP06-33 | ebm-papst 230V 130W AC Axial Fan for EV Charging/Refrigeration Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	350
Max.Air Flow(m³/h)	3110
Max.Pressure(Pa)	90
Input Power(W)	130
Speed(rpm)	1400

Product Features

High Airflow Cooling

The ebm-papst A4E350-AP06-33 is an AC axial fan for industrial equipment cooling, delivering directed airflow for machinery, motor systems and ventilation assemblies.

Data includes 230 V operation, airflow up to 3110 m³/h and pressure up to 90 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support for durable motor support. Installed noise depends on the duty point and airflow path. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the A4E350-AP06-33 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

Refrigeration Cooling

The A4E350-AP06-33 ebm-papst fan is suitable for refrigeration and cooling equipment where forced airflow supports heat rejection, component protection and stable operation under recurring thermal loads.

Product Insights

A4E Series Comparison — A4E350-AP06-33 vs Variants

How the A4E350-AP06-33 compares to nearby A4E series variants:

Model	A4E300-AS72-01	A4E350-AP06-33	A4E500-AM03-01	A4E420-AU01-05
Air Flow	2070 m³/h	3110 m³/h	9850 m³/h	5475 m³/h
Power	80 W	130 W	880 W	370 W
Noise	56 dB	— dB	65 dB	— dB
Size	300 mm	350 mm	500 mm	420 mm

All A4E series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — A4E350-AP06-33 AC Axial

Condenser Cooling: The A4E350-AP06-33 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Does the A4E350-AP06-33 have environmental compliance information?

The product workbook lists RoHS Compliant. Request the exact-model compliance document when formal evidence is required.

How can the A4E350-AP06-33 support lower ownership cost?

Correct sizing and unobstructed airflow can reduce avoidable thermal stress; verify performance at the real operating point before purchase.

What equipment is the A4E350-AP06-33 suitable for?

It is suited to 充电桩, 制冷; confirm airflow, space and electrical requirements before selection.

Why choose the A4E350-AP06-33?

It combines 3110 m³/h airflow and 90 Pa pressure and 1400 RPM in an AC axial-fan format for targeted equipment cooling.
