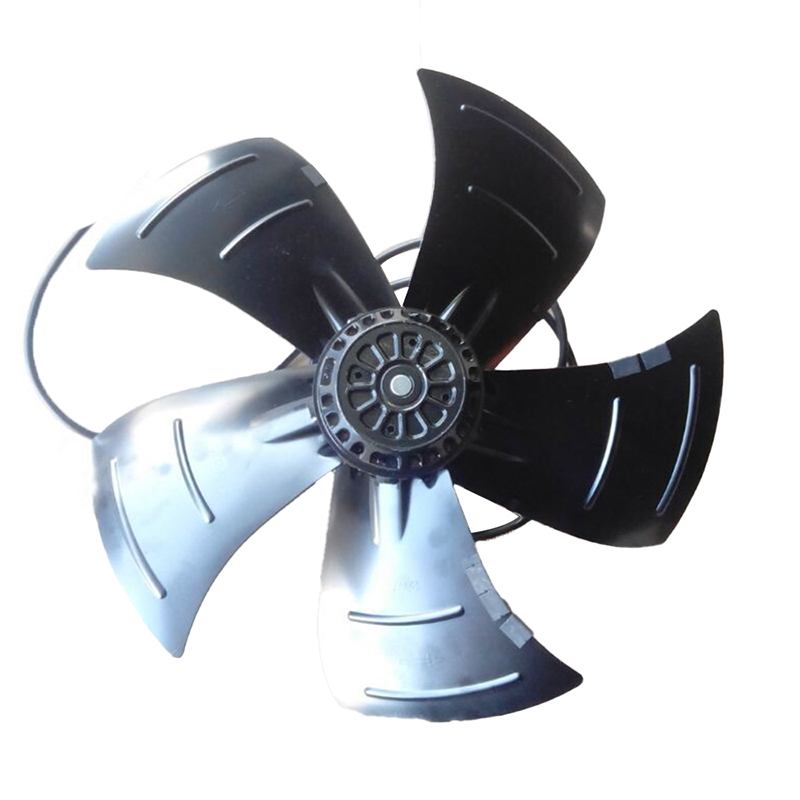

A4E500-AM03-01 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: A4E500-AM03-01 | ebm-papst 230V 880W AC Axial Fan for Refrigeration

Type:: Axial Fans

Industry:: Refrigeration Equipment

Description:: The ebm-papst A4E500-AM03-01, a 230 V AC axial fan, is intended for refrigeration and cooling equipment. Listed performance includes 9850 m³/h airflow, 100 Pa pressure, 1400 RPM, giving designers a clear basis for checking airflow, mounting and electrical compatibility.

Datasheet:: A4E500-AM03-01 | ebm-papst 230V 880W AC Axial Fan for Refrigeration Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	500
Max.Air Flow(m³/h)	9850
Max.Pressure(Pa)	100
Input Power(W)	880
Speed(rpm)	1400
Noise(db)	65

Product Features

High Airflow Cooling

The ebm-papst A4E500-AM03-01 is an AC axial fan for industrial equipment cooling, delivering directed airflow for machinery, motor systems and ventilation assemblies.

Data includes 230 V operation, airflow up to 9850 m³/h and pressure up to 100 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support for durable motor support. Listed noise is 65 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the A4E500-AM03-01 should be checked for wiring, mounting, duty point and ambient limits before selection. Its documented operating data supports model comparison, replacement planning and purchasing review.

Application Industry

Refrigeration Cooling

The A4E500-AM03-01 ebm-papst fan is suitable for refrigeration and cooling equipment where forced airflow supports heat rejection, component protection and stable operation under recurring thermal loads.

Product Insights

A4E Series Comparison — A4E500-AM03-01 vs Variants

How the A4E500-AM03-01 compares to nearby A4E series variants:

Model	A4E300-AS72-01	A4E350-AP06-33	A4E500-AM03-01	A4E420-AU01-05
Air Flow	2070 m³/h	3110 m³/h	9850 m³/h	5475 m³/h
Power	80 W	130 W	880 W	370 W
Noise	56 dB	— dB	65 dB	— dB
Size	300 mm	350 mm	500 mm	420 mm

All A4E series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — A4E500-AM03-01 AC Axial

Condenser Cooling: The A4E500-AM03-01 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What is the rated voltage of the A4E500-AM03-01?

The listed rated voltage is 230 V. Match the power supply and wiring to the datasheet.

How can the A4E500-AM03-01 support lower ownership cost?

Correct sizing and unobstructed airflow can reduce avoidable thermal stress; verify performance at the real operating point before purchase.

Is the A4E500-AM03-01 suitable for high-reliability cooling?

Assess the documented electrical, airflow and environmental limits against the system requirement; do not exceed the exact-model ratings.

How should the A4E500-AM03-01 be installed?

Mount it with the intended airflow direction, keep inlet and outlet clear, and follow the exact-model drawing and wiring data.
