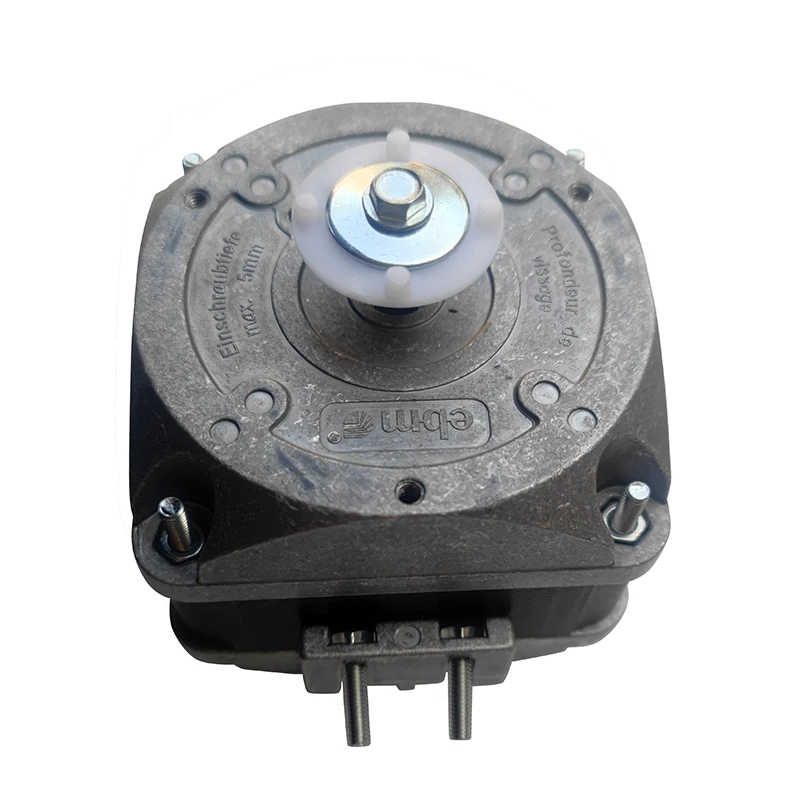

A4Q230-AD03-09 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: A4Q230-AD03-09 | ebm-papst 230V 34W AC Axial Fan for HVAC Ventilation

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: Created for HVAC Ventilation, ebm-papst A4Q230-AD03-09 is a 230 V AC axial fan, for which the table lists a documented 34 W input rating. This enables specification-led selection. Its documented data supports integration planning.

Datasheet:: A4Q230-AD03-09 | ebm-papst 230V 34W AC Axial Fan for HVAC Ventilation Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Max.Air Flow(m³/h)	1740
Input Power(W)	34
Speed(rpm)	1550

Product Features

Reliable Blower

The ebm-papst A4Q230-AD03-09 is an AC axial fan for hvac systems, supporting equipment thermal management and integration.

Data includes 230 V operation and airflow up to 1740 m³/h to give procurement teams a clearer basis for technical model comparison. The datasheet lists IP42 protection for durable motor support. Installed noise depends on the duty point and airflow path. Duty-point verification and a low-obstruction inlet help maintain predictable airflow and dependable fan operation.

The A4Q230-AD03-09 suits OEM integration and replacement sourcing; verify wiring, mounting, duty point and ambient limits before approval. The documented profile provides an audit trail in equipment redesigns while preserving model traceability.

Application Industry

HVAC Systems

The A4Q230-AD03-09 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Frequently Asked Questions

What performance data is available for the A4Q230-AD03-09?

The supplied table lists 1,740 m³/h, 1,550 rpm; use the exact datasheet for the complete operating curve.

How can noise be managed when using the A4Q230-AD03-09?

Noise data is not listed in the supplied table. Use unobstructed airflow, secure mounting and suitable isolation where required.

Is the A4Q230-AD03-09 suitable for high-reliability cooling?

It can be evaluated for demanding service using the documented ratings, installation limits and preventive-maintenance plan for the application.
