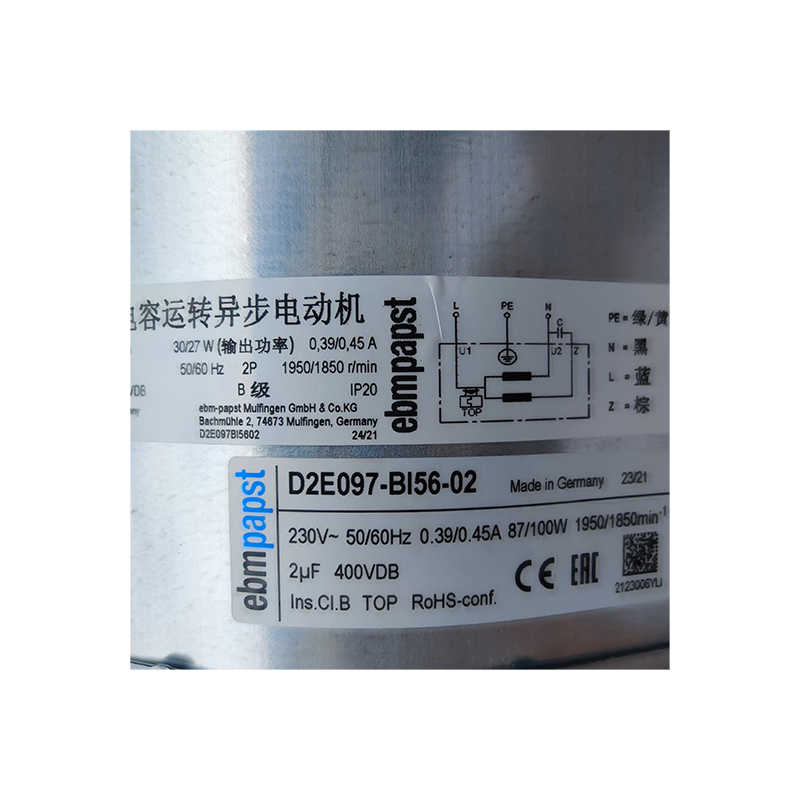

D2E097-BI56-02 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: D2E097-BI56-02 | ebm-papst 230V 100W AC Centrifugal Blower for HVAC

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: For HVAC and ventilation equipment, the ebm-papst D2E097-BI56-02 provides a 230 V AC centrifugal blower solution. Performance data of 410 m³/h airflow, 280 Pa pressure supports practical selection for continuous ventilation, component cooling and replacement planning.

Datasheet:: D2E097-BI56-02 | ebm-papst 230V 100W AC Centrifugal Blower for HVAC Datasheet (Pdf)

Product Features

High Static Airflow

The ebm-papst D2E097-BI56-02 is an AC centrifugal blower for hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 230 V operation, airflow up to 410 m³/h and pressure up to 280 Pa for matching airflow to system resistance. Its integrated motor and impeller support stable ventilation. Installed noise depends on the duty point and airflow path. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the D2E097-BI56-02 should be checked for wiring, mounting, duty point and ambient limits before selection. Its documented operating data supports model comparison, replacement planning and purchasing review.

Application Industry

HVAC Systems

The D2E097-BI56-02 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Product Insights

AC to EC Replacement — D2E EC Axial

The ebm-papst D2E097-BI56-02 from the EC Axial series is a direct energy-saving replacement for legacy AC fans including D2D, A2D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

D2E EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

Typical Applications — D2E097-BI56-02 EC Axial

Data Center CRAH/CRAC Units: The D2E097-BI56-02 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Does the D2E097-BI56-02 have compliance information?

The workbook lists RoHS Compliant. Request the exact-model declaration and any required regional approvals for formal verification.

Can the D2E097-BI56-02 reduce total ownership cost?

Correct sizing, clean airflow paths and preventive maintenance can reduce thermal stress and avoidable downtime; validate savings for the actual duty cycle.

What equipment is the D2E097-BI56-02 suitable for?

It is designed for hvac; confirm the required airflow, pressure, voltage and installation envelope before selection.
