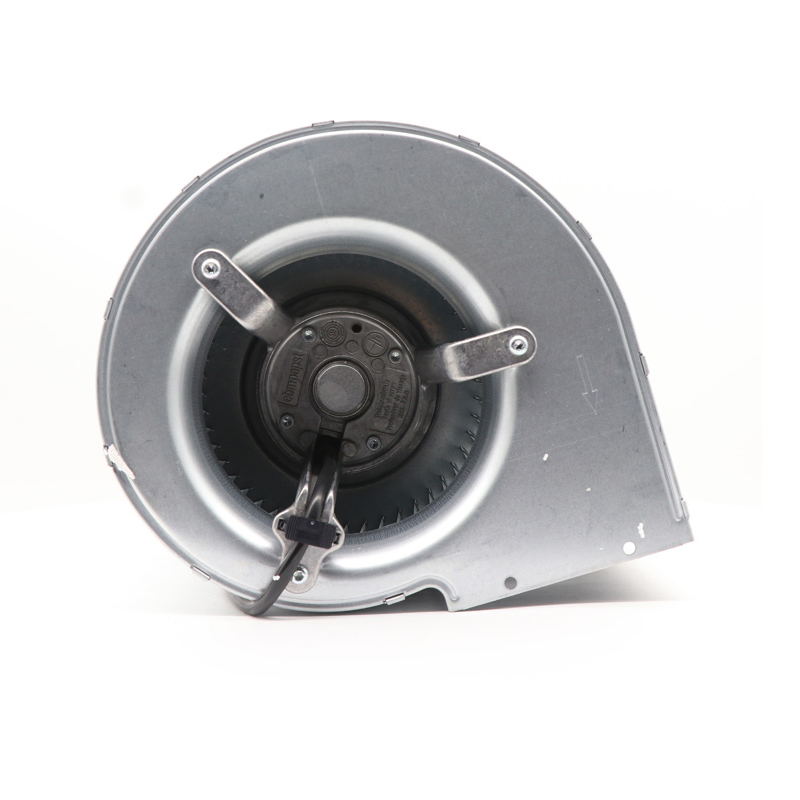

D2E146-AP47-C3 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: D2E146-AP47-C3 | ebm-papst 230V 330W AC Centrifugal Blower for Power Cooling

Type:: Centrifugal Fans

Industry:: Automation

Description:: For rectifier and power-conversion cooling, the ebm-papst D2E146-AP47-C3 provides a 230 V AC centrifugal blower solution. Performance data of 700 m³/h airflow, 625 Pa pressure supports practical selection for continuous ventilation, component cooling and replacement planning.

Datasheet:: D2E146-AP47-C3 | ebm-papst 230V 330W AC Centrifugal Blower for Power Cooling Datasheet (Pdf)

Product Features

High Static Airflow

The ebm-papst D2E146-AP47-C3 is an AC centrifugal blower for drive cooling, providing directed airflow in enclosures and cooling assemblies.

Data includes 230 V operation, airflow up to 700 m³/h and pressure up to 625 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, steel impeller for durable motor support. Installed noise depends on the duty point and airflow path. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the D2E146-AP47-C3 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

Drive Cooling

The D2E146-AP47-C3 ebm-papst fan is applied in variable-frequency drives and power-electronic cabinets, where continuous airflow helps control internal temperature and supports dependable equipment operation.

Product Insights

AC to EC Replacement — D2E EC Axial

The ebm-papst D2E146-AP47-C3 from the EC Axial series is a direct energy-saving replacement for legacy AC fans including D2D, A2D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

D2E EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

Typical Applications — D2E146-AP47-C3 EC Axial

Data Center CRAH/CRAC Units: The D2E146-AP47-C3 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What supply is required for the D2E146-AP47-C3?

The listed rated voltage is 230 V. Match the supply, wiring, frequency and control interface before commissioning.

What should be considered for noise control with the D2E146-AP47-C3?

Noise depends on the operating point and installation. Use smooth airflow paths, secure mounting and suitable isolation where needed.

Why choose the ebm-papst D2E146-AP47-C3?

700 m³/h, 625 Pa, 2550 RPM with 230 V, 330 W supports precise matching for inverter cooling rather than using a generic blower.

What performance is listed for the D2E146-AP47-C3?

The workbook lists 700 m³/h, 625 Pa, 2550 RPM. Select against the actual system resistance and duty point.
