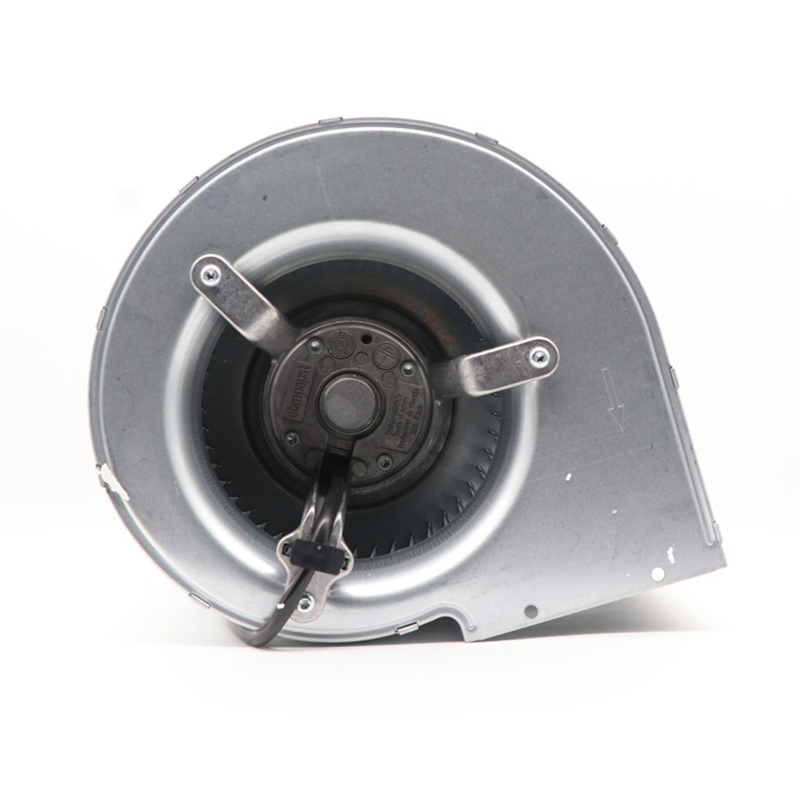

D2E146-AZ03-F9 | ebm-papst 230V 365W AC Centrifugal Blower for HVAC

Brand :: ebmpapst

Model:: D2E146-AZ03-F9 | ebm-papst 230V 365W AC Centrifugal Blower for HVAC

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: ebm-papst D2E146-AZ03-F9 is specified as an AC centrifugal blower using a 230 V supply, suited to HVAC and ventilation equipment. The available rating of 810 m³/h airflow, 600 Pa pressure enables model-specific airflow matching in OEM equipment and maintenance replacements.

Datasheet:: D2E146-AZ03-F9 | ebm-papst 230V 365W AC Centrifugal Blower for HVAC Datasheet (Pdf)

Product Features

High Static Airflow

The ebm-papst D2E146-AZ03-F9 is an AC centrifugal blower for hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 230 V operation, airflow up to 810 m³/h and pressure up to 600 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, steel impeller for durable motor support. Listed noise is 64 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the D2E146-AZ03-F9 should be checked for wiring, mounting, duty point and ambient limits before selection. Its documented operating data supports model comparison, replacement planning and purchasing review.

Application Industry

HVAC Systems

The D2E146-AZ03-F9 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Frequently Asked Questions

Is stock and lead time stable for the D2E146-AZ03-F9?

The workbook marks this product In Stock, but availability and lead time should be confirmed at quotation because inventory changes.

How should the D2E146-AZ03-F9 be installed?

The listed size is 146 mm. Confirm orientation, mounting points, clearances, inlet conditions and electrical connections against the exact drawing.

How does the D2E146-AZ03-F9 compare with an ordinary fan?

Its ac centrifugal blower design is intended to provide directed airflow and useful pressure for ducted or space-constrained cooling systems.
