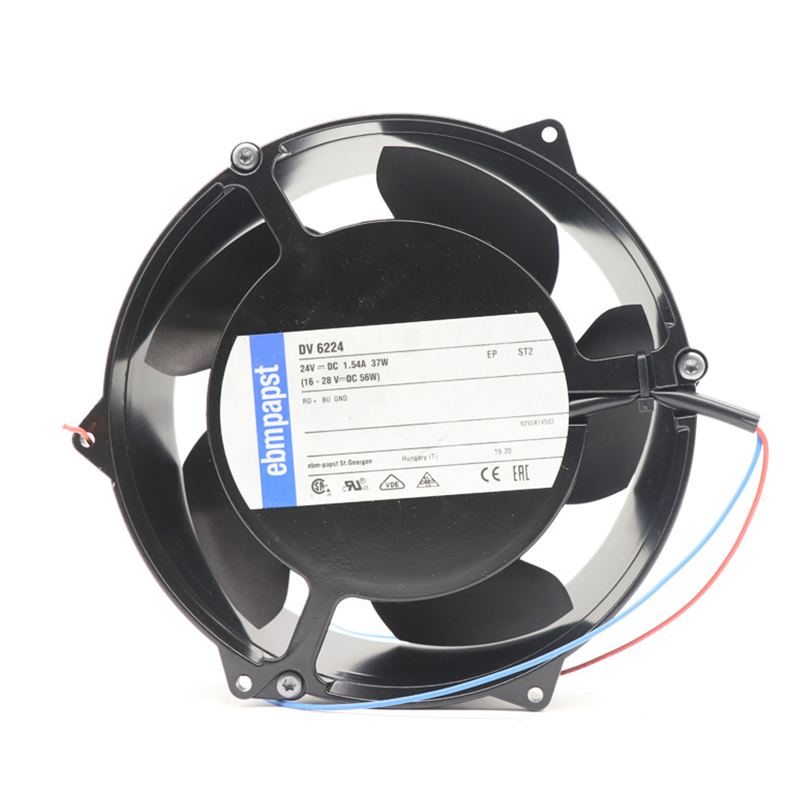

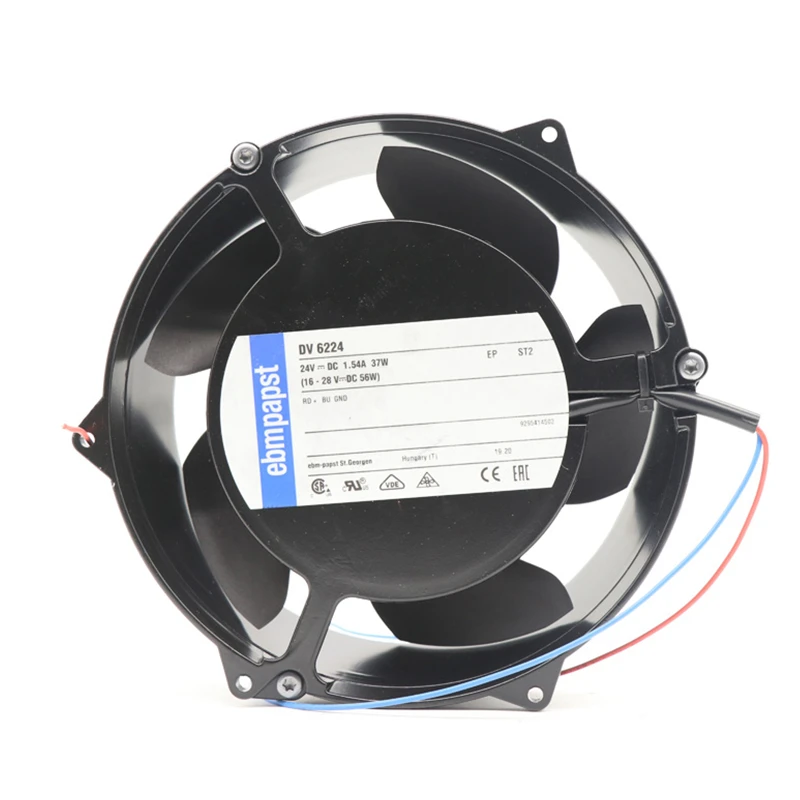

DV6224 ebm-papst Compact Fan

Brand :: ebmpapst

Model:: DV6224 | ebm-papst 24V 41W DC Diagonal Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst DV6224 is a high-performance dc diagonal fan engineered for variable-frequency drives. It delivers reliable airflow, efficient cooling and dependable operation in compact equipment.

Datasheet:: DV6224 | ebm-papst 24V 41W DC Diagonal Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	φ172*55
Max.Air Flow(m³/h)	530
Input Power(W)	41
Speed(rpm)	4300

Product Features

High Airflow Cooling

The ebmpapst DV6224 is a compact DC axial cooling fan for variable-frequency drives, control cabinets and enclosed electronics. Its space-saving format fits control cabinets, embedded electronics and automation assemblies that need a direct airflow path for continuous heat removal.

Key selection data includes a 24 V supply, airflow up to 530 m³/h, The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support and an aluminum housing for durable motor support. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The DV6224 suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

Application Industry

Drive System Cooling

DV6224 Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Cabinet Ventilation

DV6224 Supports continuous air exchange in control cabinets, helping manage localized heat around drives, controllers and power devices.

Product Insights

DV Series Comparison — DV6224 vs Variants

How the DV6224 compares to nearby DV series variants:

Model	DV4114/2N	DV4114N	DV5214N	DV6224
Air Flow	280 m³/h	280 m³/h	270 m³/h	530 m³/h
Power	21 W	21 W	20.4 W	41 W
Noise	— dB	60 dB	— dB	— dB
Size	11911938 mm	11911938 mm	12712738 mm	φ172*55 mm

All DV series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — DV6224 AC Axial

Condenser Cooling: The DV6224 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What are the dimensions of the DV6224?

The listed size is φ172*55 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the DV6224?

The product data lists airflow up to 530 m³/h, speed 4300 RPM, pressure up to 0 Pa; confirm the required operating point.

What power or noise data is available for the DV6224?

The listed values are input power 41 W. Use the exact model data for selection.

Is the DV6224 compatible with my equipment?

Compare 24 V, φ172*55 mm, airflow demand and connection details with your equipment.
