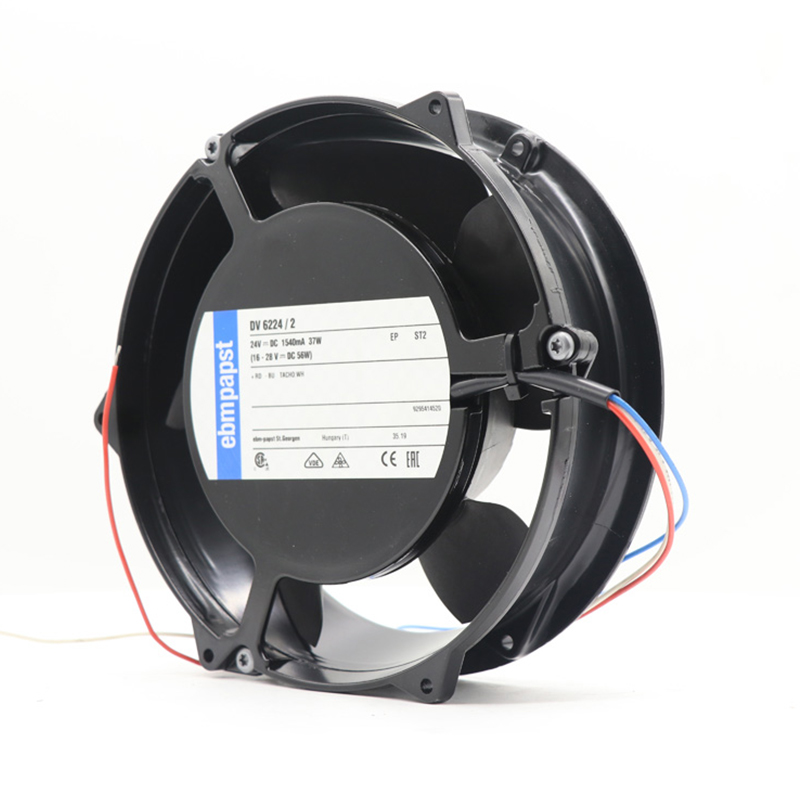

DV6224/2 ebm-papst Compact Fan

Brand :: ebmpapst

Model:: DV6224/2 | ebm-papst 24V 37W DC Diagonal Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst DV6224/2 is a high-performance dc diagonal fan engineered for variable-frequency drives. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: DV6224/2 | ebm-papst 24V 37W DC Diagonal Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	172φ*51
Max.Air Flow(m³/h)	530
Max.Pressure(Pa)	415
Input Power(W)	37
Speed(rpm)	4300

Product Features

High Static Cooling

Designed as a compact DC axial cooling fan, the ebmpapst DV6224/2 supports thermal management in variable-frequency drives. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 24 V supply, airflow up to 530 m³/h, and maximum pressure of 415 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support for durable motor support. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Drive System Cooling

DV6224/2 Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Frequently Asked Questions

What power or noise data is available for the DV6224/2?

The listed values are input power 37 W. Use the exact model data for selection.

Is the DV6224/2 compatible with my equipment?

Compare 24 V, 172φ*51 mm, airflow demand and connection details with your equipment.

Where can the DV6224/2 be used?

It is a compact DC diagonal fan listed for automation cooling and ventilation applications.
