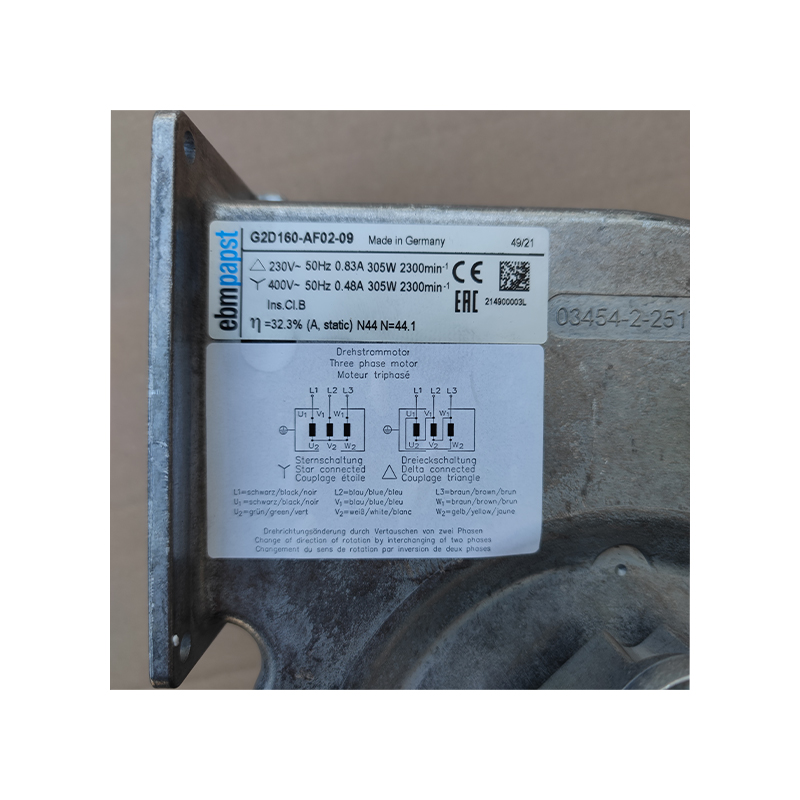

G2D160-AF02-09 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: G2D160-AF02-09 | ebm-papst 230V 305W AC Centrifugal Blower for Motor Cooling

Type:: Centrifugal Fans

Industry:: Automation

Description:: Designed around motor cooling, G2D160-AF02-09 uses a 230 V AC centrifugal blower platform. The model's defining specification is IP44 protection with 2,300 rpm operation. It supports exact-model comparison for OEM sourcing.

Datasheet:: G2D160-AF02-09 | ebm-papst 230V 305W AC Centrifugal Blower for Motor Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	160
Max.Air Flow(m³/h)	300
Input Power(W)	305
Speed(rpm)	2300

Product Features

Reliable Blower

The ebm-papst G2D160-AF02-09 is an AC centrifugal blower for motor cooling, providing directed airflow in enclosures and cooling assemblies.

Data includes 230 V operation and airflow up to 300 m³/h for matching airflow to system resistance. The datasheet lists ball-bearing support, steel impeller for durable motor support. Installed noise depends on the duty point and airflow path. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the G2D160-AF02-09 should be checked for wiring, mounting, duty point and ambient limits before selection. Its documented operating data supports model comparison, replacement planning and purchasing review.

Application Industry

Motor Cooling

The G2D160-AF02-09 ebm-papst fan is used in industrial motor systems to remove accumulated heat around the motor body, supporting stable duty cycles and reducing thermal stress on nearby components.

Frequently Asked Questions

How does the G2D160-AF02-09 compare with an ordinary fan?

Its ac centrifugal blower design supports controlled airflow and useful pressure for ducted or space-constrained cooling systems.

How should the G2D160-AF02-09 be installed?

The listed size is 160 mm. Confirm orientation, mounting points, clearances, inlet conditions and electrical connections against the exact drawing.

Is stock and lead time stable for the G2D160-AF02-09?

The workbook marks this product In Stock, but availability and lead time should be confirmed at quotation because inventory changes.

Can the G2D160-AF02-09 operate continuously 24/7?

Continuous-duty suitability depends on the published operating point, ambient temperature, mounting and electrical limits; verify the exact datasheet.
