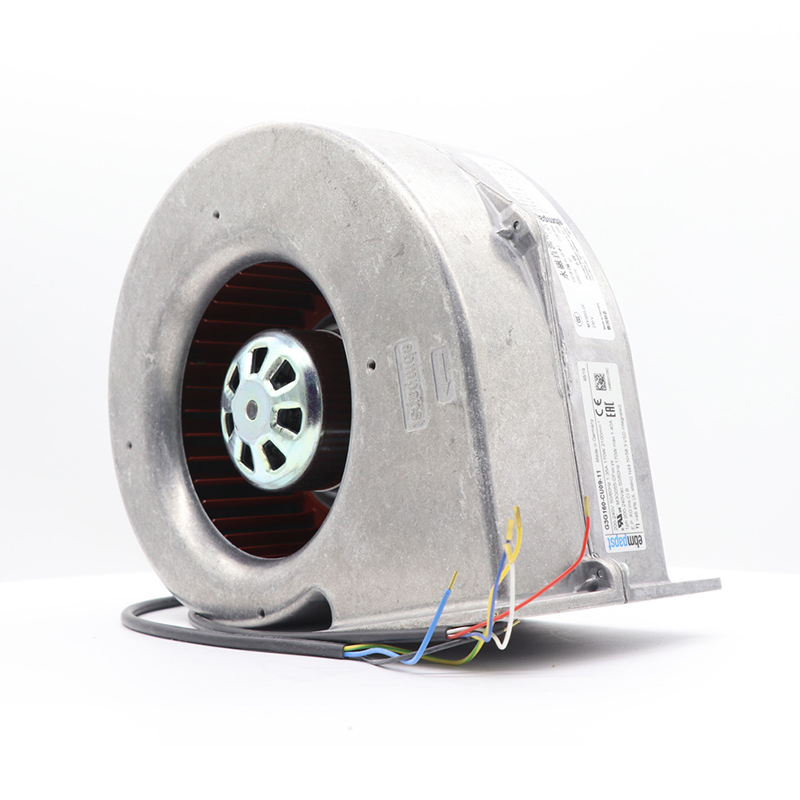

G3G160-AC50-01 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: G3G160-AC50-01 | ebm-papst 230V 170W EC Centrifugal Blower for HVAC

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Designed around hvac, G3G160-AC50-01 uses a 230 V EC centrifugal blower platform. A key model-specific detail is 0-10 V/PWM speed control with a tachometer output. It supports exact-model comparison for OEM sourcing.

Datasheet:: G3G160-AC50-01 | ebm-papst 230V 170W EC Centrifugal Blower for HVAC Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	160
Max.Air Flow(m³/h)	630
Max.Pressure(Pa)	475
Input Power(W)	170
Speed(rpm)	2150

Product Features

High Static Airflow

The ebm-papst G3G160-AC50-01 is an EC centrifugal blower for hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 230 V operation, airflow up to 630 m³/h and pressure up to 475 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, sheet-steel impeller for durable motor support. Installed noise depends on the duty point and airflow path. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the G3G160-AC50-01 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

HVAC Systems

The G3G160-AC50-01 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Product Insights

AC to EC Replacement — G3G Compact EC Axial

The ebm-papst G3G160-AC50-01 from the Compact EC Axial series is a direct energy-saving replacement for legacy AC fans including G4D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

G3G EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

G3G Series Comparison — G3G160-AC50-01 vs Variants

How the G3G160-AC50-01 compares to nearby G3G series variants:

Model	G3G160-CU09-11	G3G225-AD29-71	G3G250-GN17-01	G3G250-GN44-01
Air Flow	650 m³/h	1655 m³/h	1655 m³/h	1540 m³/h
Power	170 W	545 W	1117 W	924 W
Noise	— dB	58 dB	79 dB	78 dB
Size	160 mm	225 mm	250 mm	250 mm

All G3G series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — G3G160-AC50-01 Compact EC Axial

Data Center CRAH/CRAC Units: The G3G160-AC50-01 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What performance is listed for the G3G160-AC50-01?

The workbook lists 630 m³/h, 475 Pa, 2150 RPM. Select against the actual resistance and duty point.

Can the G3G160-AC50-01 reduce total ownership cost?

Correct sizing, efficient control and preventive maintenance can reduce thermal stress and avoidable downtime; validate savings for the actual duty cycle.

How does the G3G160-AC50-01 compare with an ordinary fan?

Its ec centrifugal blower design supports controlled airflow and useful pressure for ducted or space-constrained cooling systems.

How should the G3G160-AC50-01 be installed?

The listed size is 160 mm. Confirm orientation, mounting points, clearances, inlet conditions and electrical connections against the exact drawing.
