G3G250-MW50-01 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: G3G250-MW50-01 | ebm-papst 400V 2400W EC Centrifugal Blower for Boiler Systems

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Targeting boiler systems, G3G250-MW50-01 pairs 400 V operation with a EC centrifugal blower layout. Its selection profile is led by a listed 92 dB noise value with 2,185 m³/h airflow.

Datasheet:: G3G250-MW50-01 | ebm-papst 400V 2400W EC Centrifugal Blower for Boiler Systems Datasheet (Pdf)

Product Features

Rated Voltage(V)	400
Size(mm)	250
Max.Air Flow(m³/h)	2185
Max.Pressure(Pa)	4600
Input Power(W)	2400
Speed(rpm)	6100
Noise(db)	92

Product Features

High Static Airflow

The ebm-papst G3G250-MW50-01 is an EC centrifugal blower for condenser airflow, hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 400 V operation, airflow up to 2185 m³/h and pressure up to 4600 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support for durable motor support. Listed noise is 92 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the G3G250-MW50-01 should be checked for wiring, mounting, duty point and ambient limits before selection. Its documented operating data supports model comparison, replacement planning and purchasing review.

Application Industry

Condenser Airflow

The G3G250-MW50-01 ebm-papst fan is provides airflow across condenser assemblies, helping transfer heat away from the coil and maintain stable thermal performance in refrigeration equipment.

HVAC Systems

The G3G250-MW50-01 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Product Insights

AC to EC Replacement — G3G Compact EC Axial

The ebm-papst G3G250-MW50-01 from the Compact EC Axial series is a direct energy-saving replacement for legacy AC fans including G4D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

G3G EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

G3G Series Comparison — G3G250-MW50-01 vs Variants

How the G3G250-MW50-01 compares to nearby G3G series variants:

Model	G3G160-CU09-11	G3G225-AD29-71	G3G250-GN17-01	G3G250-GN44-01
Air Flow	650 m³/h	1655 m³/h	1655 m³/h	1540 m³/h
Power	170 W	545 W	1117 W	924 W
Noise	— dB	58 dB	79 dB	78 dB
Size	160 mm	225 mm	250 mm	250 mm

All G3G series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — G3G250-MW50-01 Compact EC Axial

Data Center CRAH/CRAC Units: The G3G250-MW50-01 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

How do I confirm compatibility for the G3G250-MW50-01?

Compare 400 V, 250 mm, 2185 m³/h, 4600 Pa, connector details and operating environment with the existing system.

What should be considered for noise control with the G3G250-MW50-01?

The listed noise value is 92 dB. Use smooth airflow paths, secure mounting and suitable isolation where needed.

How should the G3G250-MW50-01 be installed?

The listed size is 250 mm. Confirm orientation, mounting points, clearances, inlet conditions and electrical connections against the exact drawing.

Is the G3G250-MW50-01 suitable for high-reliability cooling?

It can support demanding cooling when operated within documented limits and integrated with suitable controls, protection and preventive maintenance.

Related Products

G1G146-BA07-52 | ebm-papst 24V 100W EC Centrifugal Blower for Boiler Systems

Aimed at Boiler Systems, the ebm-papst G1G146-BA07-52 is a 24 V EC backward-curved centrifugal fan, for which the table lists a listed pressure capability of 500 Pa. This assists electrical and mechanical review.

G1G133-DE19-15 | ebm-papst 24V 45W EC Centrifugal Blower for Boiler Systems

Integrated into Boiler Systems, the ebm-papst G1G133-DE19-15 is a 24 V EC backward-curved centrifugal fan, specified with a documented 45 W input rating. The rating aids system-fit checks.

G1G097-AA05-01 | ebm-papst 24V 16W EC Centrifugal Blower for Boiler Systems

Suited to Boiler Systems, ebm-papst G1G097-AA05-01 is a 24 V EC backward-curved centrifugal fan, marked by a documented 16 W input rating. It provides a practical sizing reference.

G3G225-AD29-71 | ebm-papst 230V 545W EC Centrifugal Blower for Pharmaceutical Equipment

Designed around pharmaceutical equipment, G3G225-AD29-71 uses a 230 V EC centrifugal blower platform. Among the supplied ratings, a listed 58 dB noise value with a 545 W input rating clearly differentiates this variant.

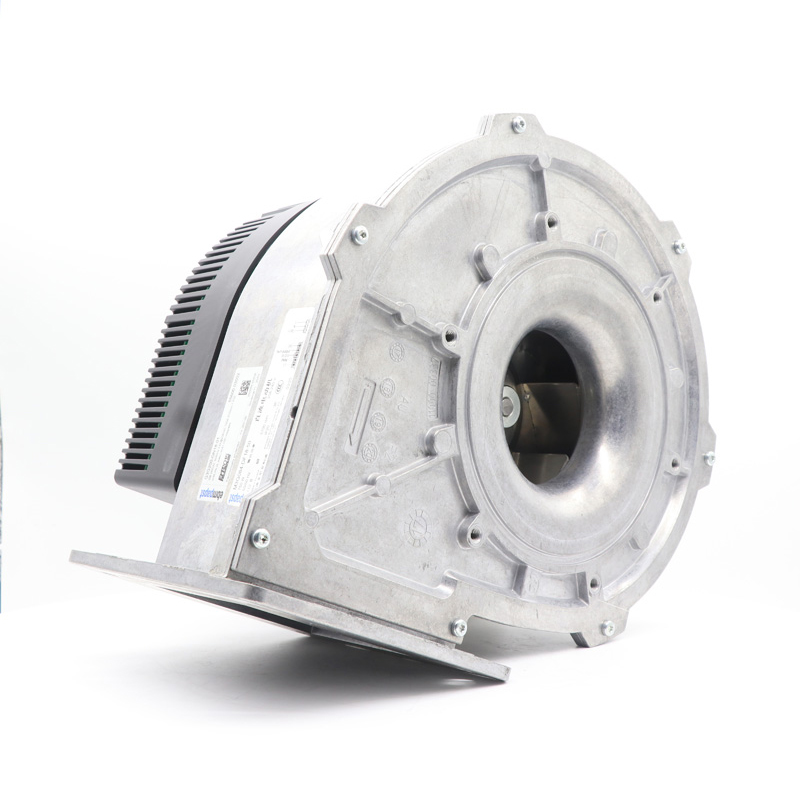

G3G200-GN18-01 | ebm-papst 230V 682W EC Centrifugal Blower for Boiler Systems
