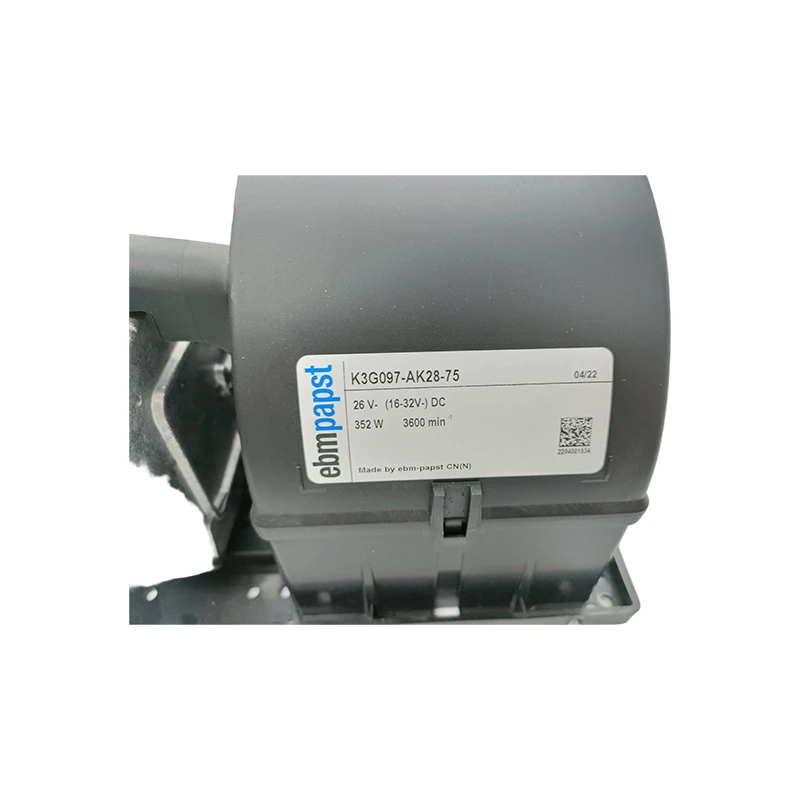

K3G097-AK28-75 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: K3G097-AK28-75 | ebm-papst 26V 352W EC Centrifugal Fan for Air Handling

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Applied in Air Handling, ebm-papst K3G097-AK28-75 is a 26 V EC backward-curved centrifugal fan, distinguished by a documented speed of 3,600 rpm. The rating aids system-fit checks.

Datasheet:: K3G097-AK28-75 | ebm-papst 26V 352W EC Centrifugal Fan for Air Handling Datasheet (Pdf)

Product Features

Rated Voltage(V)	26
Size(mm)	97
Max.Air Flow(m³/h)	1186
Max.Pressure(Pa)	595
Input Power(W)	352
Speed(rpm)	3600

Product Features

High Static Airflow

The ebm-papst K3G097-AK28-75 is an EC centrifugal blower for hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 26 V operation, airflow up to 1186 m³/h and pressure up to 595 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, PWM/0-10 V speed control for durable motor support. Installed noise depends on the duty point and airflow path. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the K3G097-AK28-75 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

HVAC Systems

The K3G097-AK28-75 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Product Insights

AC to EC Replacement — K3G Compact EC Centrifugal

The ebm-papst K3G097-AK28-75 from the Compact EC Centrifugal series is a direct energy-saving replacement for legacy AC fans including R4D, R2D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

K3G EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

K3G Series Comparison — K3G097-AK28-75 vs Variants

How the K3G097-AK28-75 compares to nearby K3G series variants:

Model	K3G097-AK34-43	K3G190-RD45-03	K3G250-AV29-B2	K3G250-PR17-W9
Air Flow	1195 m³/h	524 m³/h	3120 m³/h	2405 m³/h
Power	325 W	169 W	750 W	1160 W
Noise	— dB	— dB	63 dB	— dB
Size	97 mm	190 mm	250 mm	250 mm

All K3G series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — K3G097-AK28-75 Compact EC Centrifugal

Data Center CRAH/CRAC Units: The K3G097-AK28-75 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Does the K3G097-AK28-75 support speed control?

Control capability and input method must be confirmed in the exact-model datasheet and wiring diagram; do not infer them from the fan family alone.

What distinguishes the K3G097-AK28-75 from a general-purpose fan?

Its EC backward-curved centrifugal fan configuration and a documented speed of 3,600 rpm provide model-specific criteria for matching Air Handling systems.

Which equipment can use the K3G097-AK28-75?

It is listed for Air Handling. Confirm voltage, duty point, dimensions and mounting against the equipment requirements before selection.
