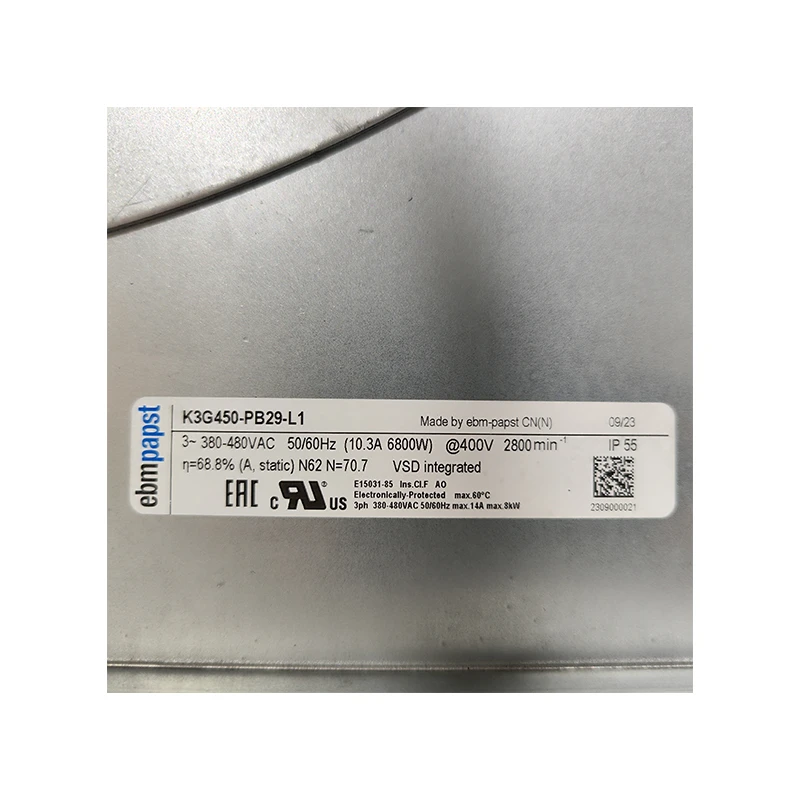

K3G450-PB29-L1 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: K3G450-PB29-L1 | ebm-papst 3~380-480V 6800W EC Centrifugal Fan for Data Center Cooling

Type:: Centrifugal Fans

Industry:: Data Center Cooling

Description:: Built for Data Center Cooling, the ebm-papst K3G450-PB29-L1 is a 380-480V EC backward-curved centrifugal fan, with a focus on a listed pressure capability of 2,100 Pa. It gives engineers a clear comparison point.

Datasheet:: K3G450-PB29-L1 | ebm-papst 3~380-480V 6800W EC Centrifugal Fan for Data Center Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	3`380-480
Size(mm)	450
Max.Air Flow(m³/h)	16500
Max.Pressure(Pa)	2100
Input Power(W)	6800
Speed(rpm)	2800
Noise(db)	82

Product Features

High Static Airflow

The ebm-papst K3G450-PB29-L1 is an EC centrifugal blower for data center cooling, providing directed airflow in enclosures and cooling assemblies.

Data includes 3`380-480 V operation, airflow up to 16500 m³/h and pressure up to 2100 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, IP55 protection, PWM/0-10 V/MODBUS speed control for durable motor support. Listed noise is 82 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the K3G450-PB29-L1 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

Data Center Cooling

The K3G450-PB29-L1 ebm-papst fan is applied in data-center cooling equipment where dependable air movement supports thermal control, system availability and efficient equipment heat removal.

Product Insights

AC to EC Replacement — K3G Compact EC Centrifugal

The ebm-papst K3G450-PB29-L1 from the Compact EC Centrifugal series is a direct energy-saving replacement for legacy AC fans including R4D, R2D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

K3G EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

K3G Series Comparison — K3G450-PB29-L1 vs Variants

How the K3G450-PB29-L1 compares to nearby K3G series variants:

Model	K3G097-AK34-43	K3G190-RD45-03	K3G250-AV29-B2	K3G250-PR17-W9
Air Flow	1195 m³/h	524 m³/h	3120 m³/h	2405 m³/h
Power	325 W	169 W	750 W	1160 W
Noise	— dB	— dB	63 dB	— dB
Size	97 mm	190 mm	250 mm	250 mm

All K3G series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — K3G450-PB29-L1 Compact EC Centrifugal

Data Center CRAH/CRAC Units: The K3G450-PB29-L1 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Does the K3G450-PB29-L1 support speed control?

Control capability and input method must be confirmed in the exact-model datasheet and wiring diagram; do not infer them from the fan family alone.

What installation checks apply to the K3G450-PB29-L1?

Verify mounting orientation, inlet and outlet clearance, fastener security, electrical connections and the exact dimensional drawing before startup.

How should buyers select the K3G450-PB29-L1 for an operating point?

Match required airflow and pressure on the exact performance curve, then verify voltage, power, dimensions and environmental limits.

Why choose the K3G450-PB29-L1 for Data Center Cooling?

Its documented 380-480V EC backward-curved centrifugal fan configuration provides a traceable match for projects whose electrical and airflow requirements align with the model data.
