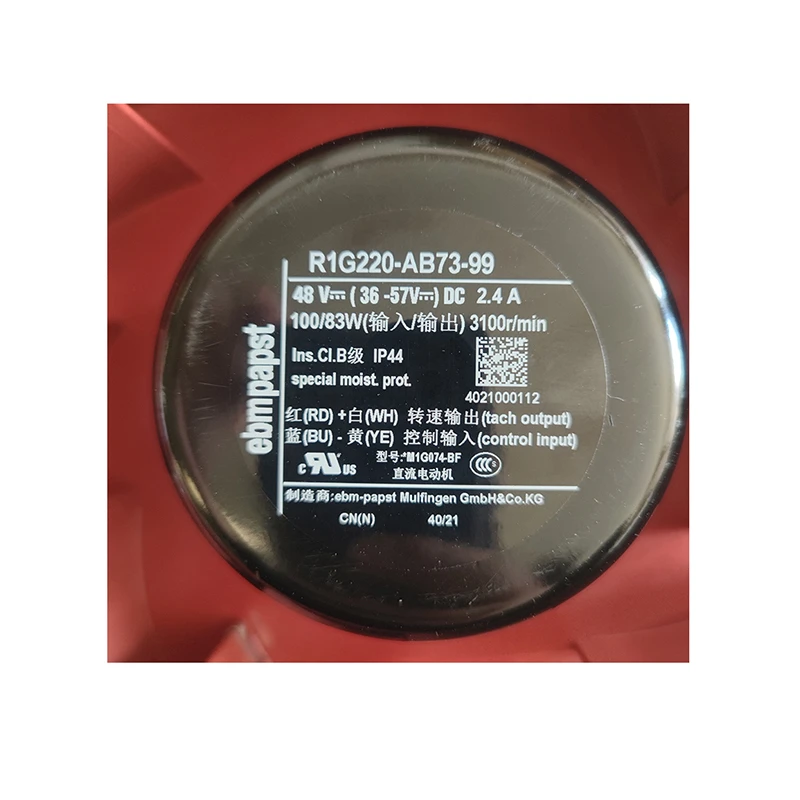

R1G220-AB73-99 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: R1G220-AB73-99 | ebm-papst 48V 104W Centrifugal Fan for Cleanroom

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Developed for Cleanroom, the ebm-papst R1G220-AB73-99 is a 48 V EC forward-curved centrifugal fan, distinguished by a documented speed of 3,100 rpm. It provides a practical sizing reference.

Datasheet:: R1G220-AB73-99 | ebm-papst 48V 104W Centrifugal Fan for Cleanroom Datasheet (Pdf)

Product Features

Rated Voltage(V)	48
Size(mm)	220
Max.Air Flow(m³/h)	1080
Max.Pressure(Pa)	508
Input Power(W)	104
Speed(rpm)	3100

Product Features

Efficient EC Cooling

Designed for HVAC and Ventilation, the ebm-papst R1G220-AB73-99 EC centrifugal fan provides a defined platform for controlled heat removal and airflow management. It suits OEM equipment and service replacement when checked against the exact drawing and operating curve.

Documented selection points include 48 V supply, 104 W input, 220 mm size, up to 1080 m3/h airflow. These values support electrical, envelope and duty-point comparison.

For procurement, verify voltage, duty point, dimensions, connector and mounting. Correct sizing and clear airflow paths support stable operation, controlled noise and long service life. Confirm speed control, IP protection and approvals in the exact-model datasheet.

Application Industry

HVAC Systems

Applied in HVAC and ventilation equipment to move and circulate air through the system. This industrial fan supports heat exchange, indoor-air management and reliable operation of climate-control equipment.

Air Purification

Applied in air-purification and clean-air equipment to move air through filters and internal passages. Stable airflow supports filtration performance and reliable operation of the complete system.

Product Insights

AC to EC Replacement — R1G EC Centrifugal

The ebm-papst R1G220-AB73-99 from the EC Centrifugal series is a direct energy-saving replacement for legacy AC fans including R2D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

R1G EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

R1G Series Comparison — R1G220-AB73-99 vs Variants

How the R1G220-AB73-99 compares to nearby R1G series variants:

Model	R1G175-AB41-02	R1G175-AB41-34	R1G175-AB41-64	R1G220-AB35-52
Air Flow	625 m³/h	—	—	1055 m³/h
Power	40 W	34 W	34 W	106 W
Noise	— dB	— dB	— dB	76 dB
Size	175 mm	175 mm	175 mm	220 mm

All R1G series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — R1G220-AB73-99 EC Centrifugal

Data Center CRAH/CRAC Units: The R1G220-AB73-99 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What performance data is available for the R1G220-AB73-99?

The supplied table lists 1,080 m³/h, 508 Pa, 3,100 rpm; use the exact datasheet for the complete operating curve.

Can the R1G220-AB73-99 help control total ownership cost?

Correct sizing and operation within documented limits can reduce avoidable thermal stress and maintenance events; project savings require duty-cycle analysis.

Is the R1G220-AB73-99 suitable for high-reliability cooling?

It can be evaluated for demanding service using the documented ratings, installation limits and preventive-maintenance plan for the application.
